Component Tests and General Diagnostics

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

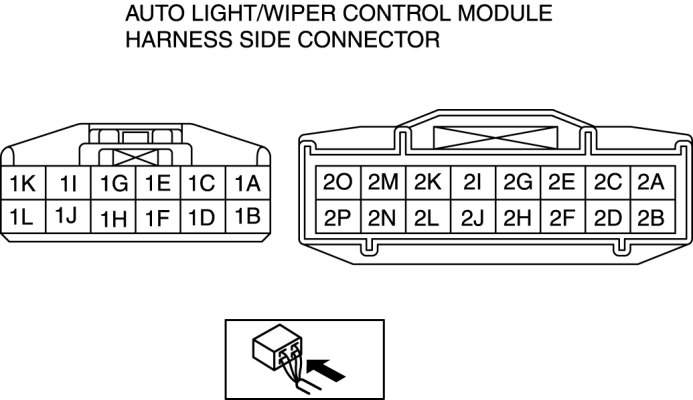

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

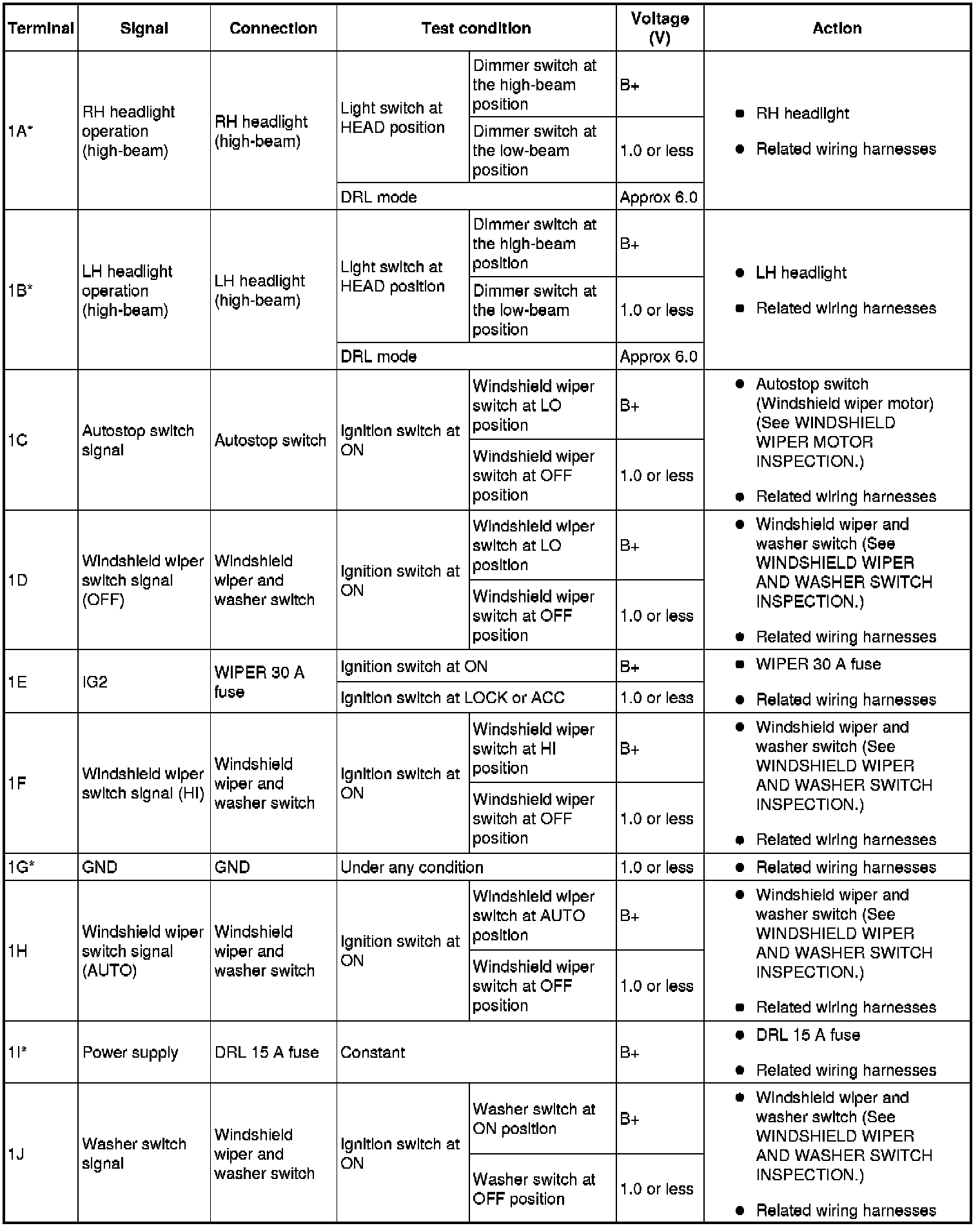

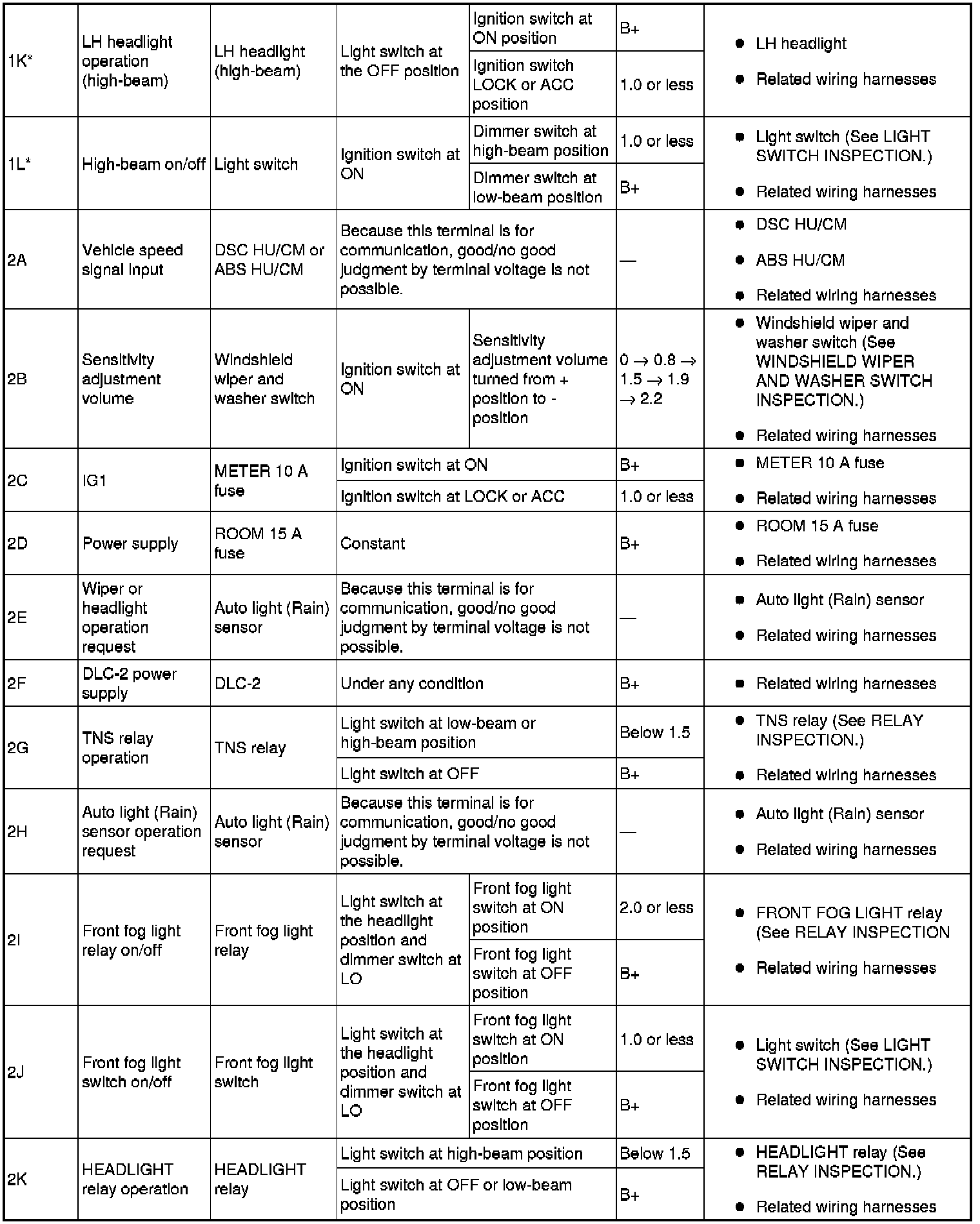

Terminal Voltage List (Reference)

Terminal Voltage List (Reference) (Part 1):

Terminal Voltage List (Reference) (Part 2):

Terminal Voltage List (Reference) (Part 3):

*
For vehicles with DRL only.
