Door Switch FL

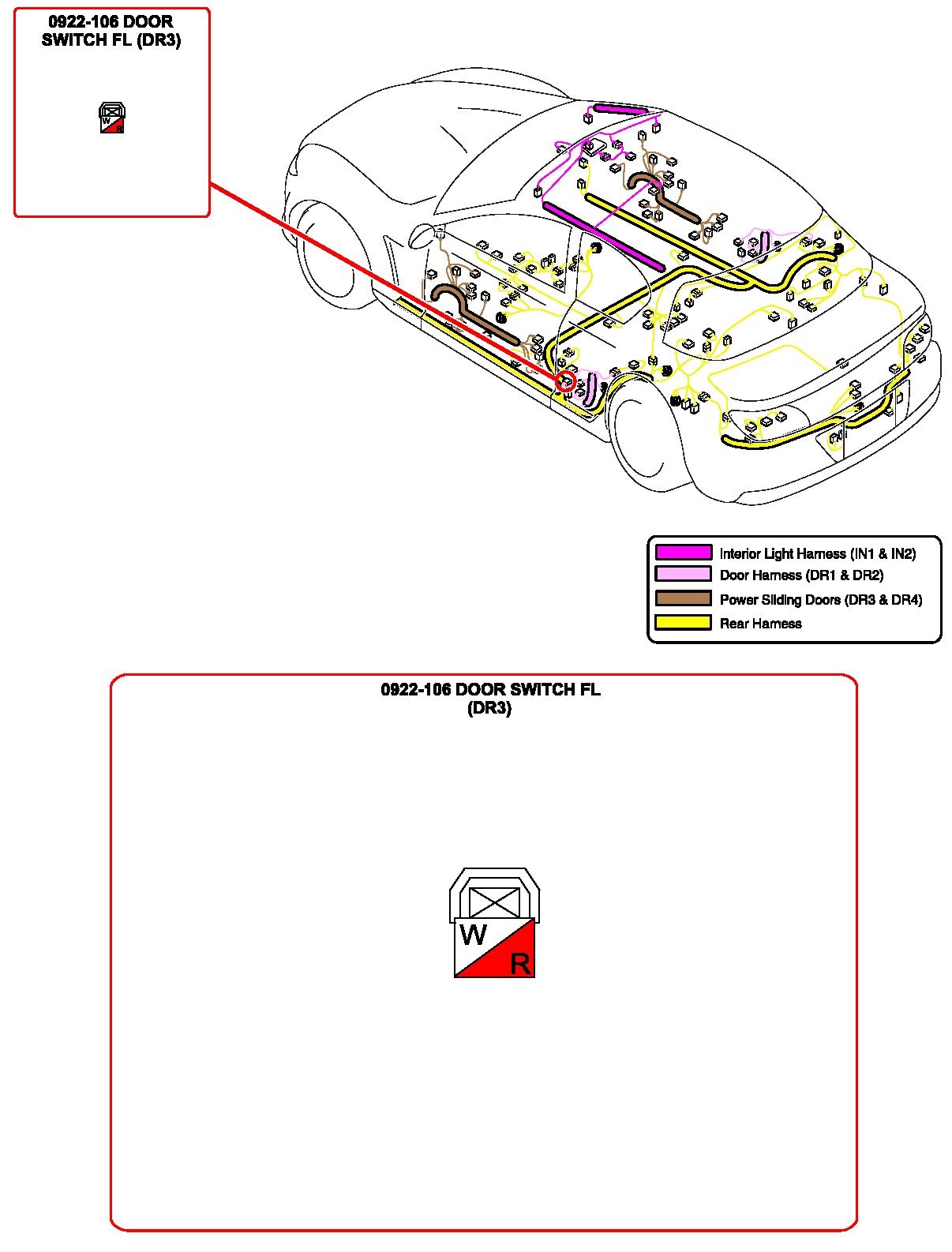

Door Switch FL:

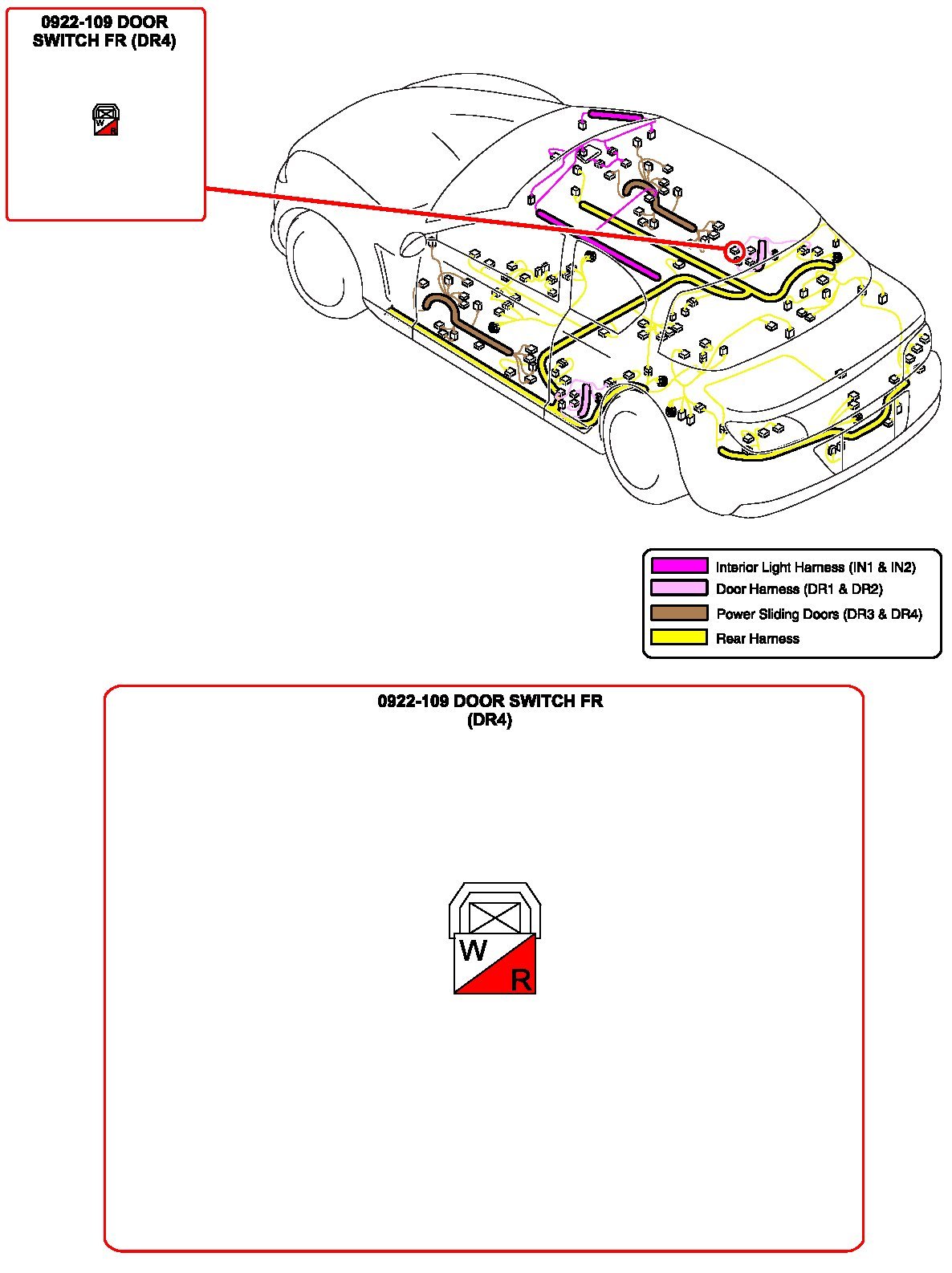

Door Switch FR:

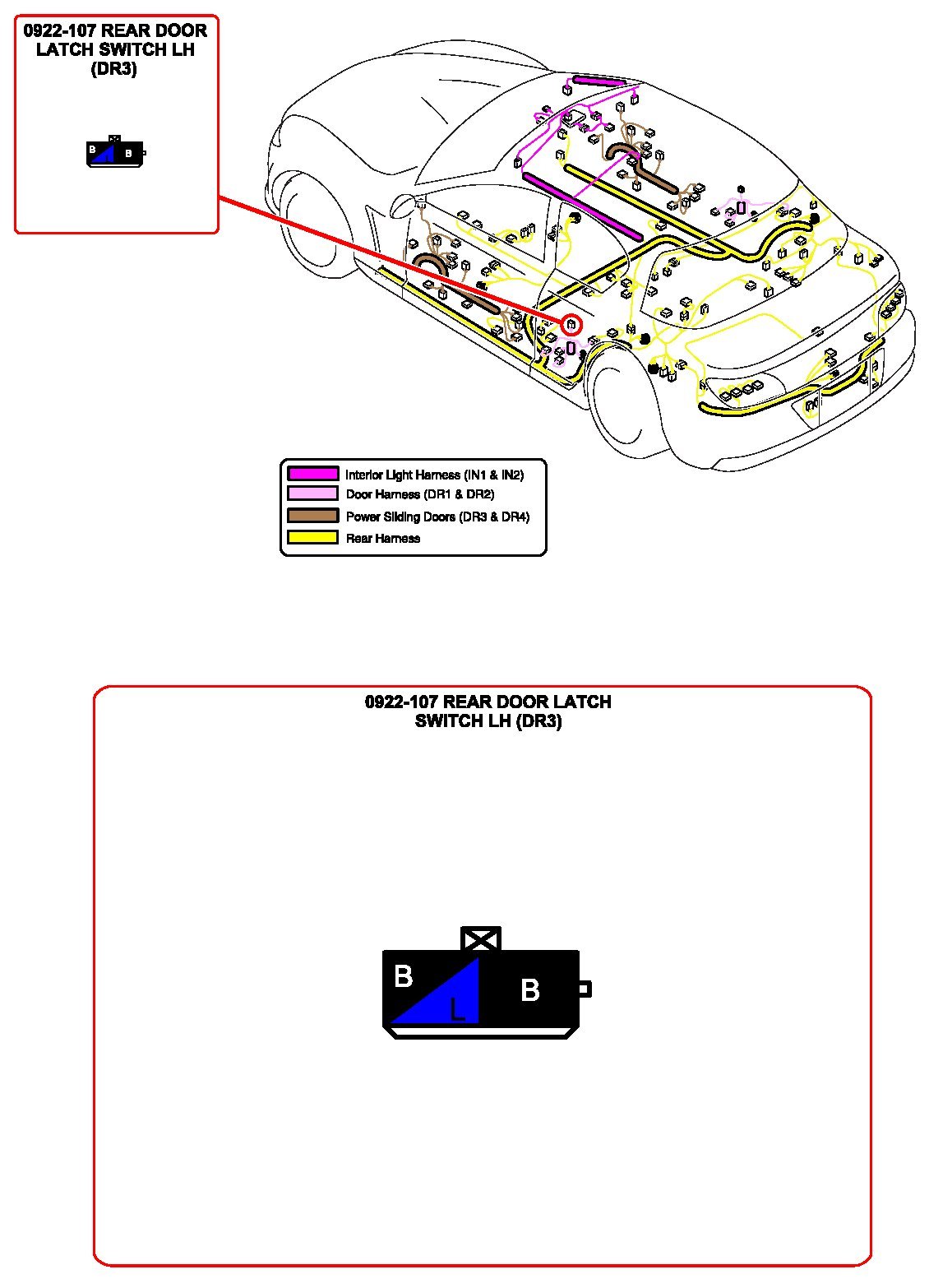

Rear Door Latch Switch LH:

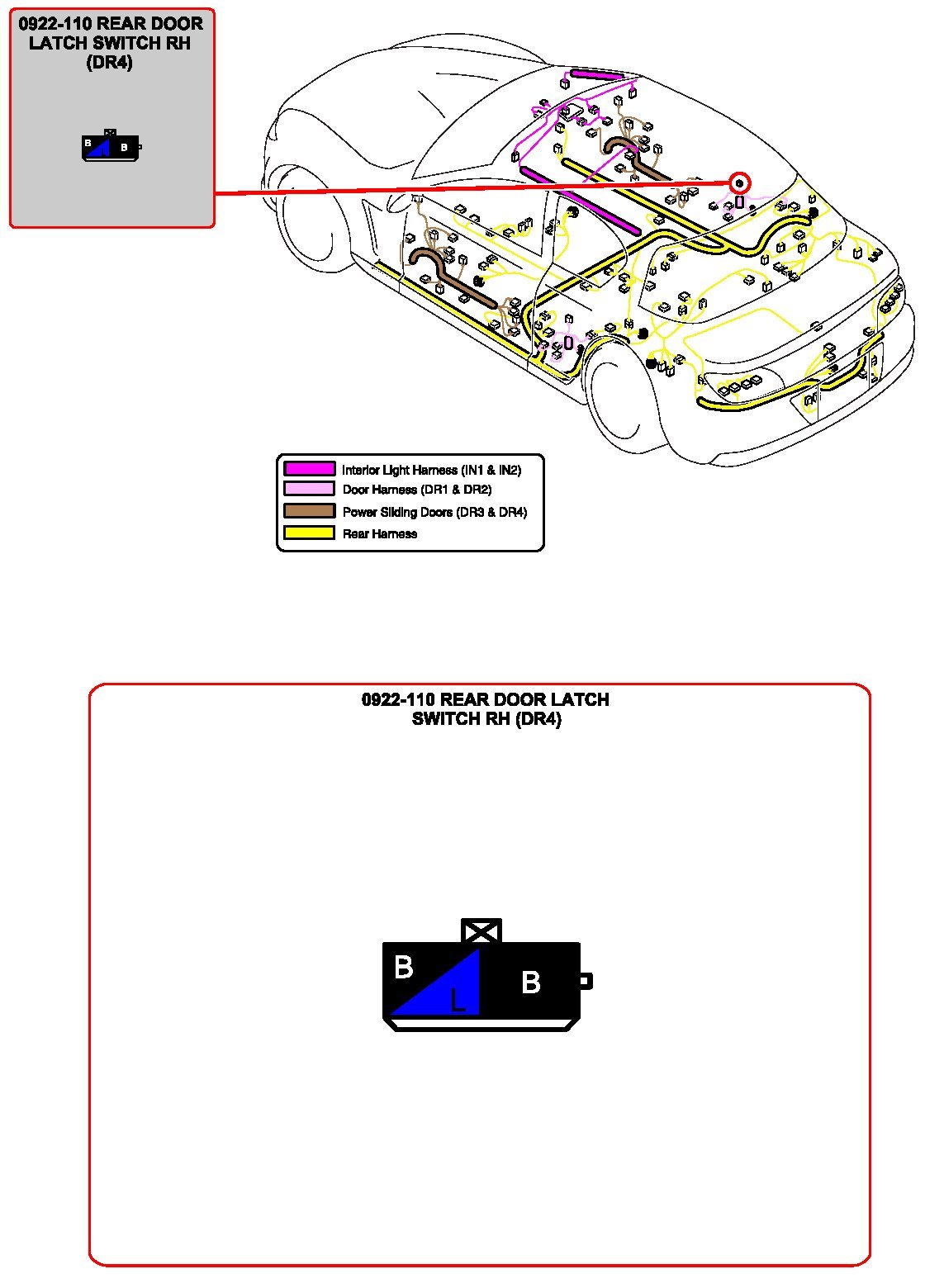

Rear Door Latch Switch RH:
