Front Fender: Service and Repair

FRONT FENDER PANEL REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the front side turn light. Front Side Turn Light Removal/Installation

3. Remove the front bumper. Removal and Replacement

4. Remove the front combination lights. Service and Repair

5. Remove the side step molding.

6. Remove the mudguard.

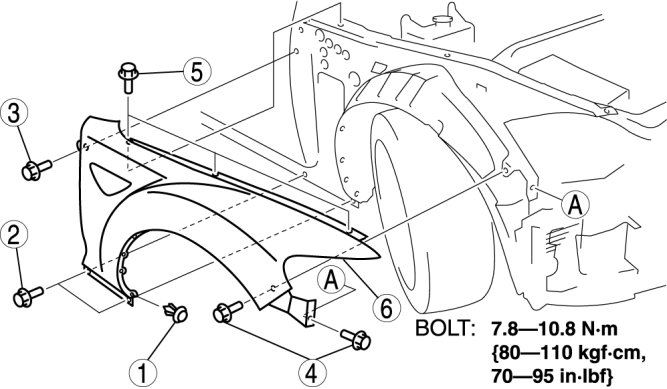

7. Remove in the order indicated in the table.










8. Install in the reverse order of removal.
