Control System Wiring Diagram
Control System Wiring Diagram

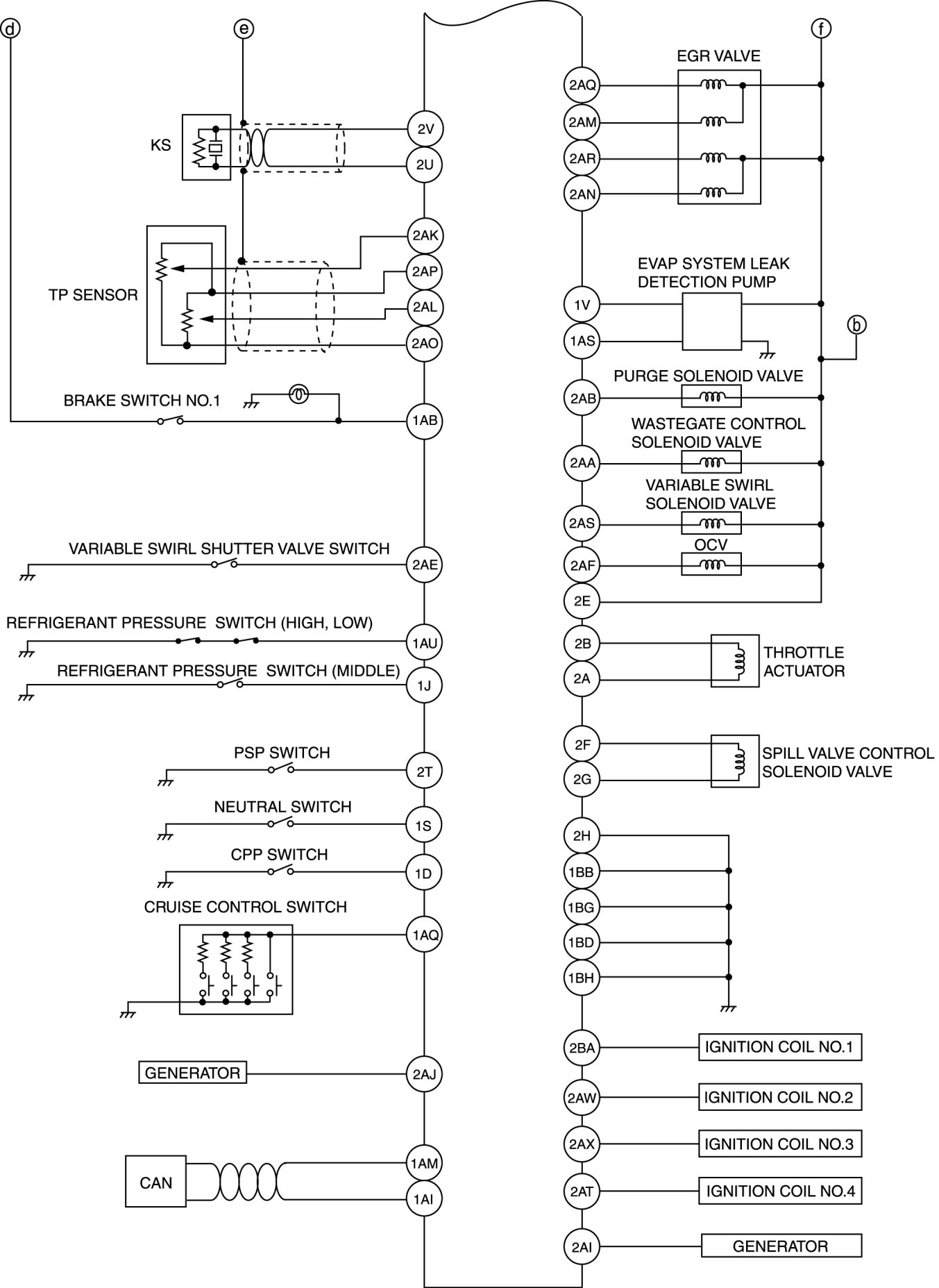

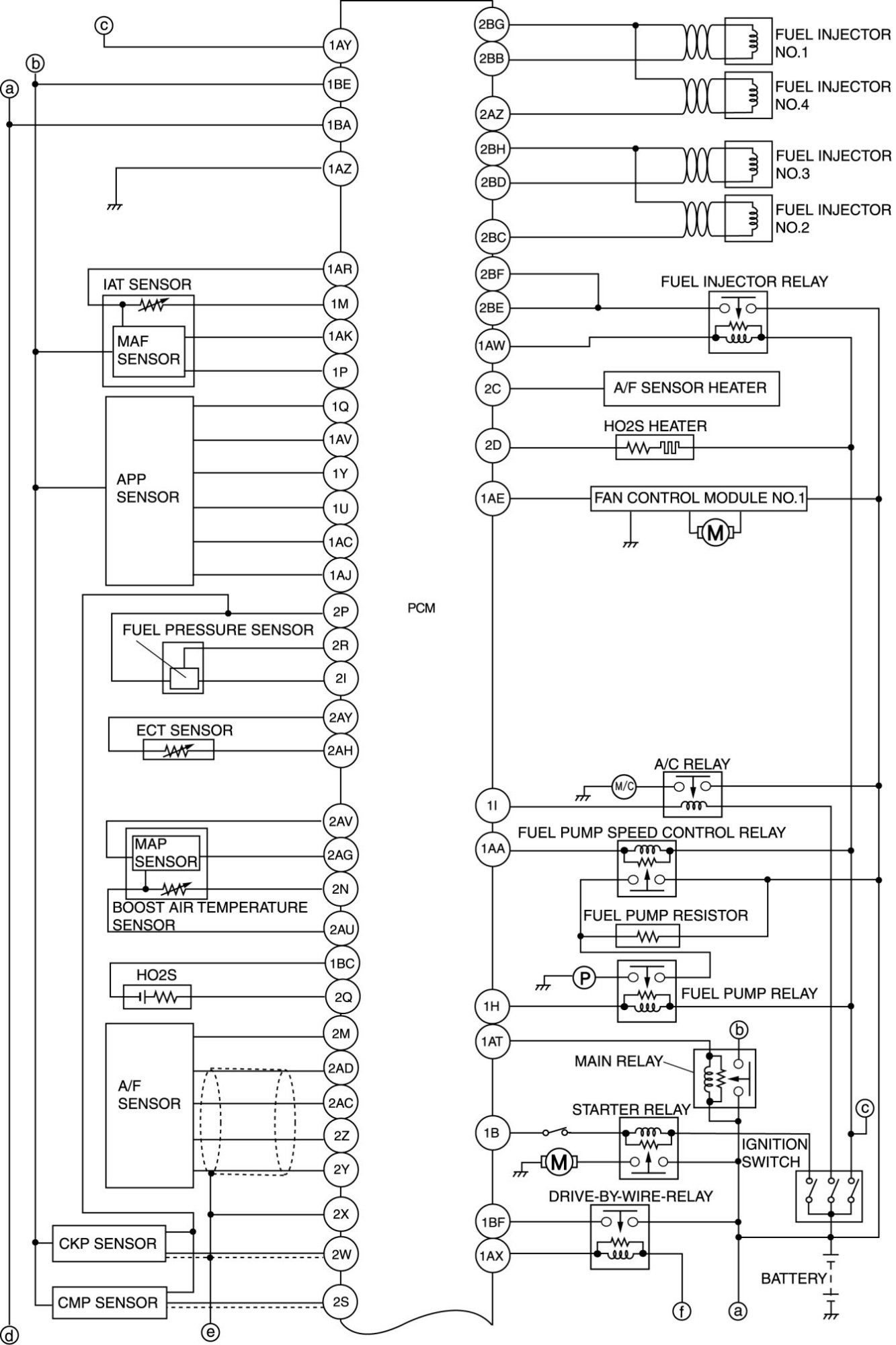

CONTROL SYSTEM WIRING DIAGRAM [L3 WITH TC]
