Bolt Re-Usability

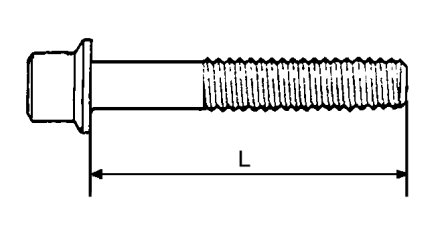

Measure the length of each cylinder head bolt. Replace any that exceed the maximum length.Cylinder Head Bolt Length L 145.2-145.8 mm {5.72-5.74 in}
Cylinder Head Bolt Maximum 146.5 mm {5.77 in}
Cylinder Head Bolt Length L 145.2-145.8 mm {5.72-5.74 in}
Cylinder Head Bolt Maximum 146.5 mm {5.77 in}
