Shift Solenoid, A/T




TRANSMISSION/TRANSAXLE TECHNICAL DATA

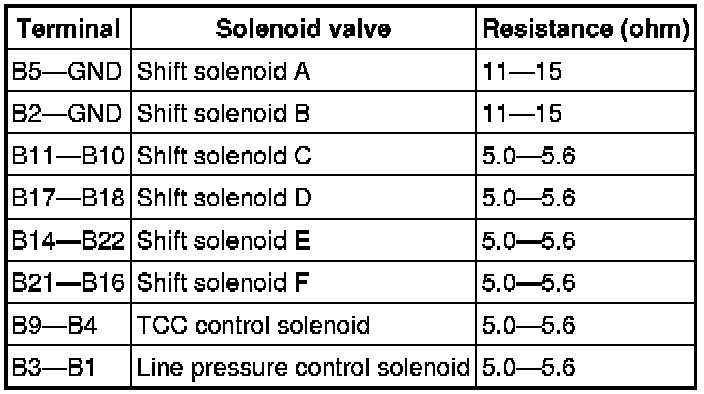

Solenoid valve resistance (ATF temperature: 20 °C {68 °F})
