Home >> Mazda >> 2009 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Windshield Wiper Motor

Windshield Wiper Motor

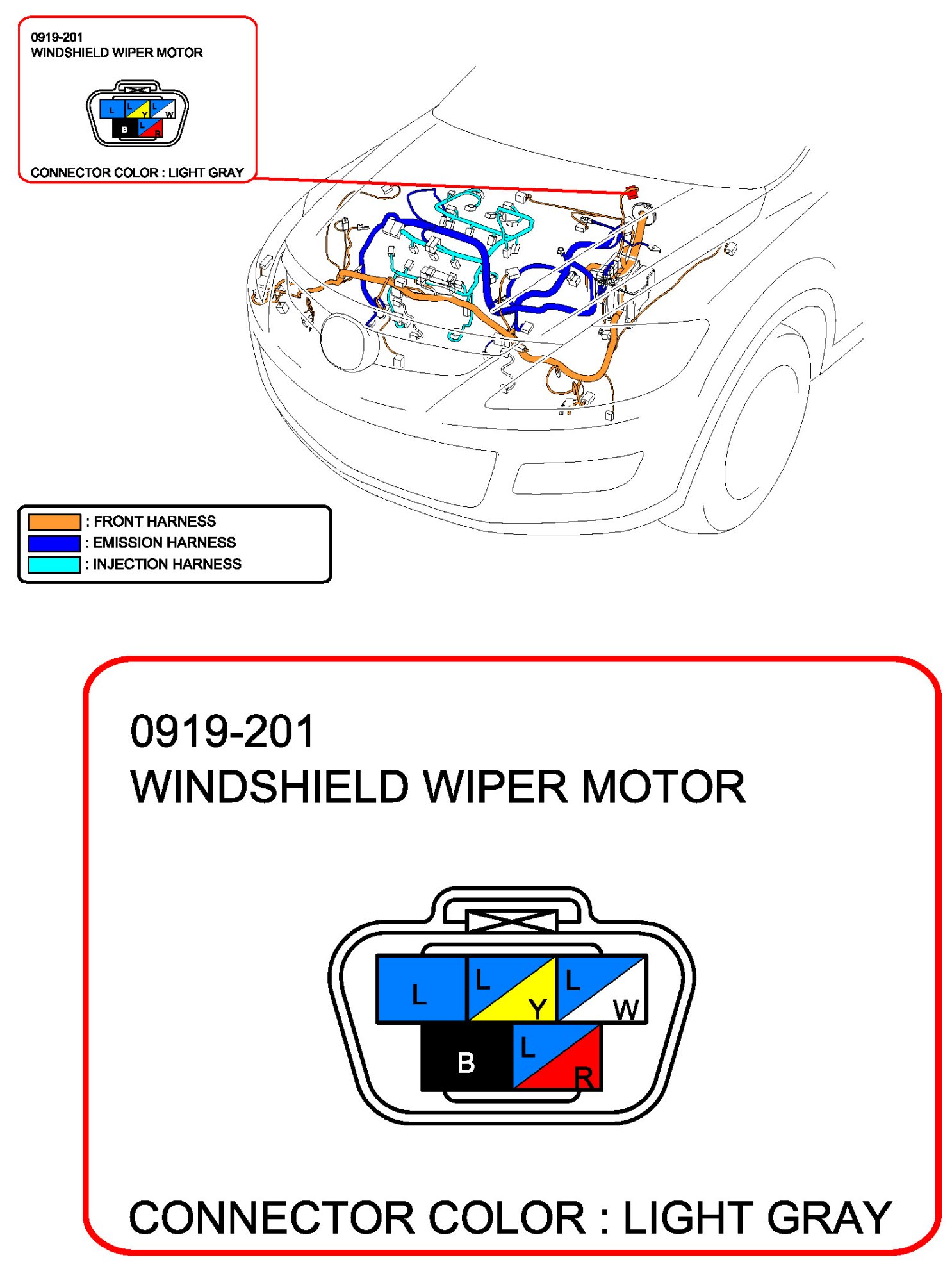

Windshield Wiper Motor:

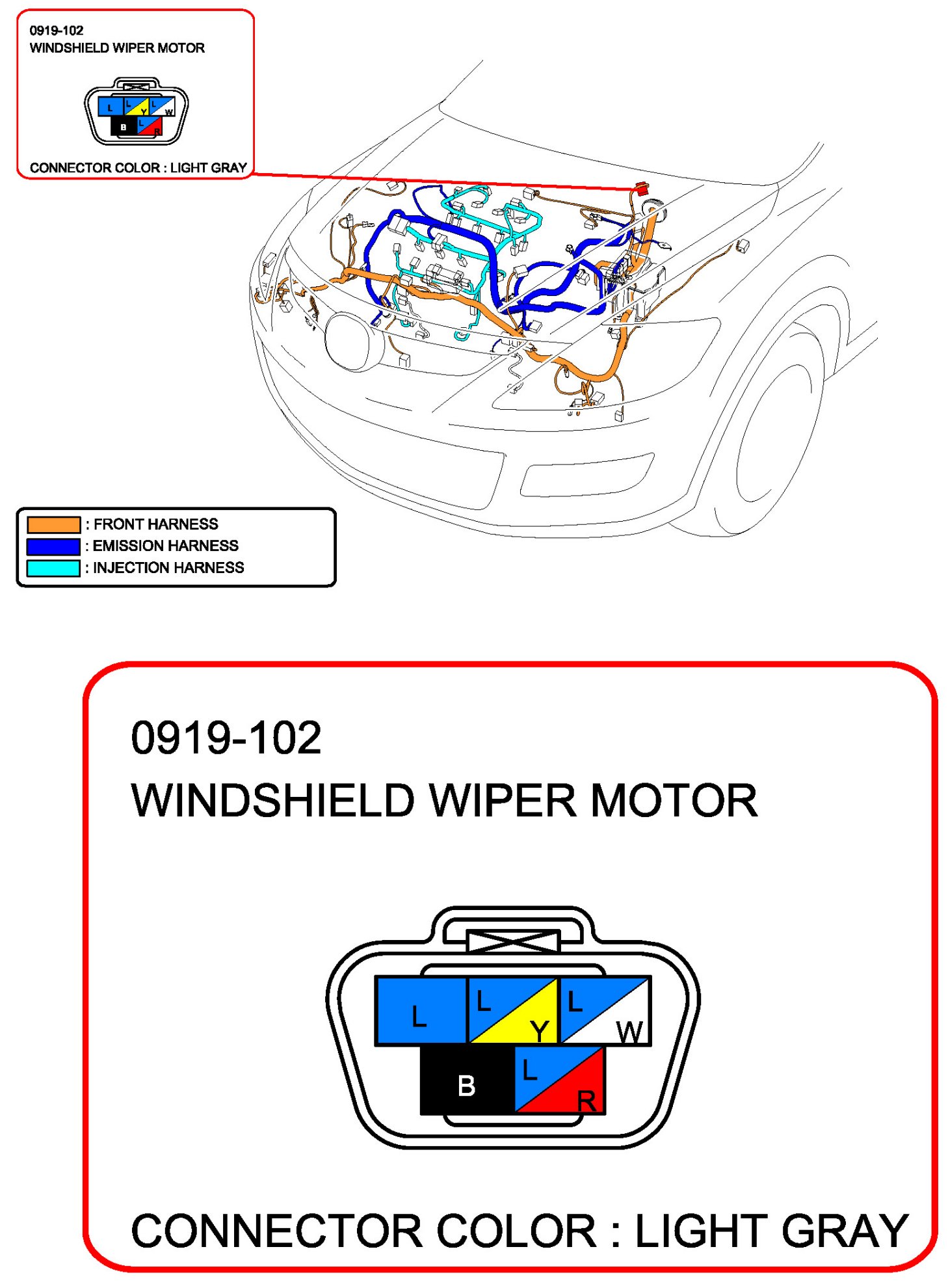

Windshield Wiper Motor:

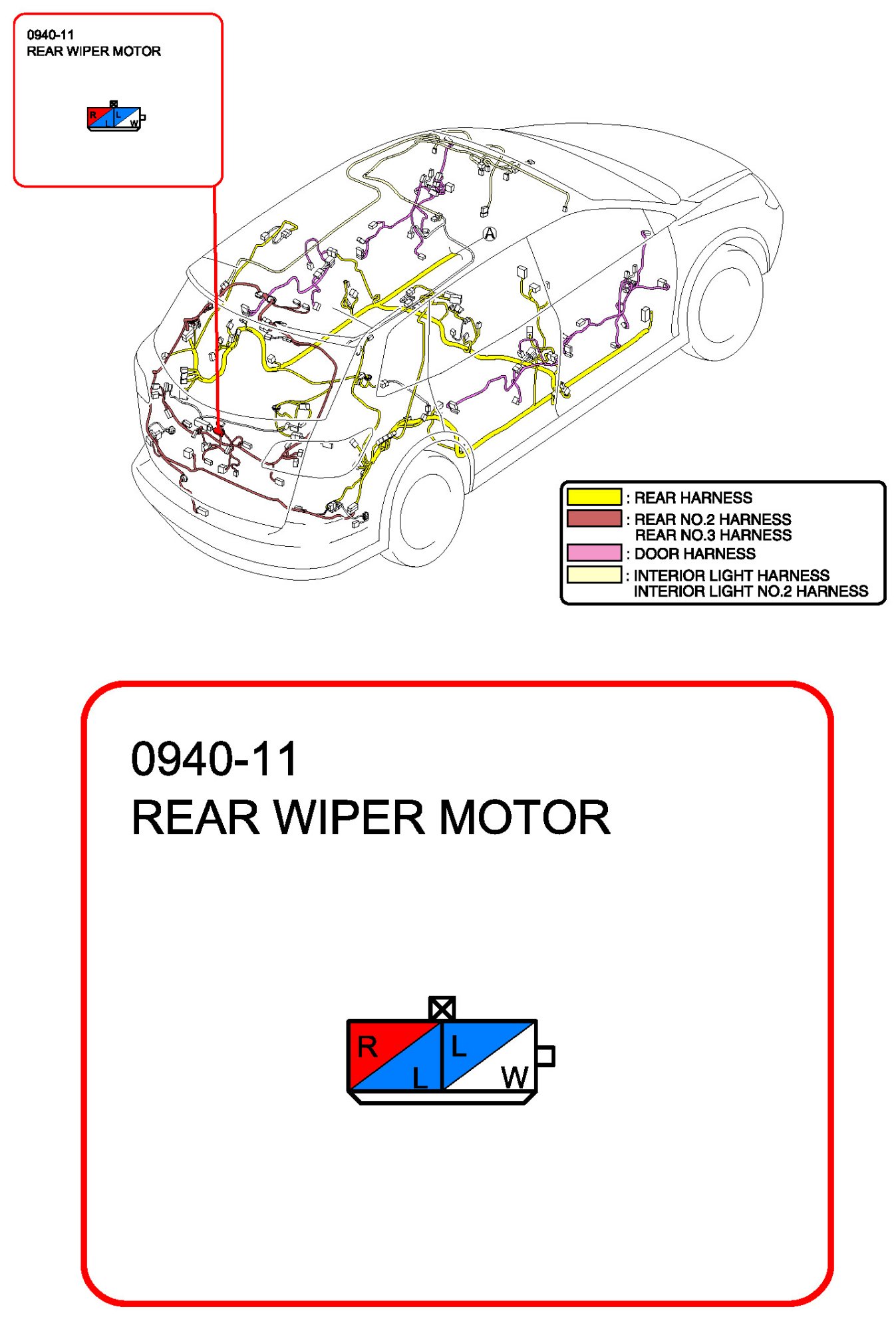

Rear Wiper Motor:
