Circuit Open/Short Inspection: Notes

Fig 1: Identifying ECT Sensor Connector
G04859797Courtesy of MAZDA MOTORS CORP.

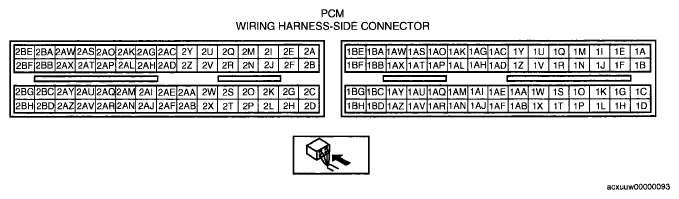

Fig 2: PCM Connector Terminal Identification
G04859798Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [L3 WITH TC] .)
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
