Control System Wiring Diagram [L3 With TC]

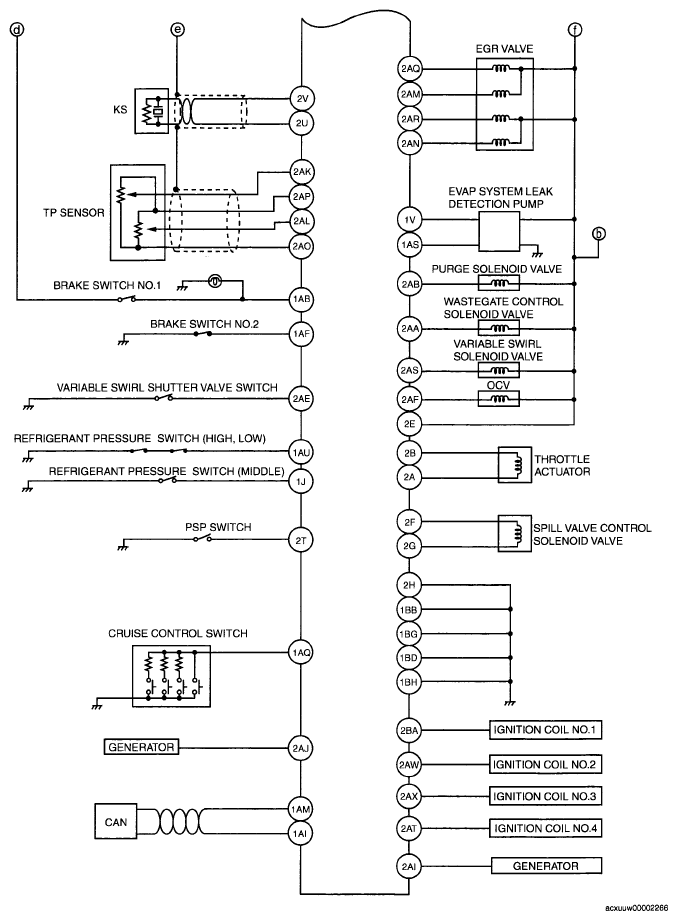

Fig 1: Control System Wiring Diagram - L3 With TC (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

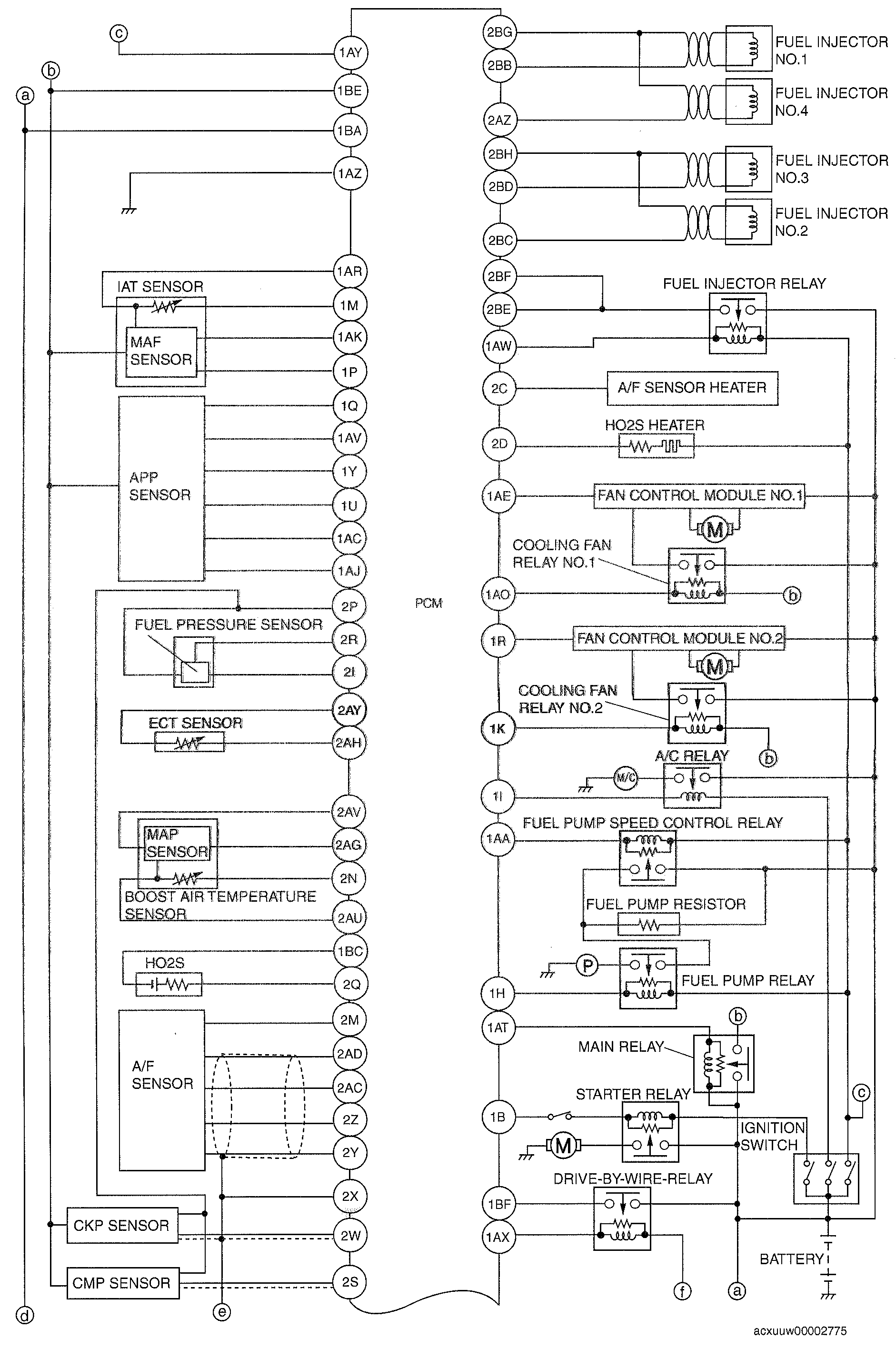

Fig 2: Control System Wiring Diagram - L3 With TC (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
