CX-7 Touring, 2.3 L, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram [L3 With TC]
Control System Diagram [L3 With TC]

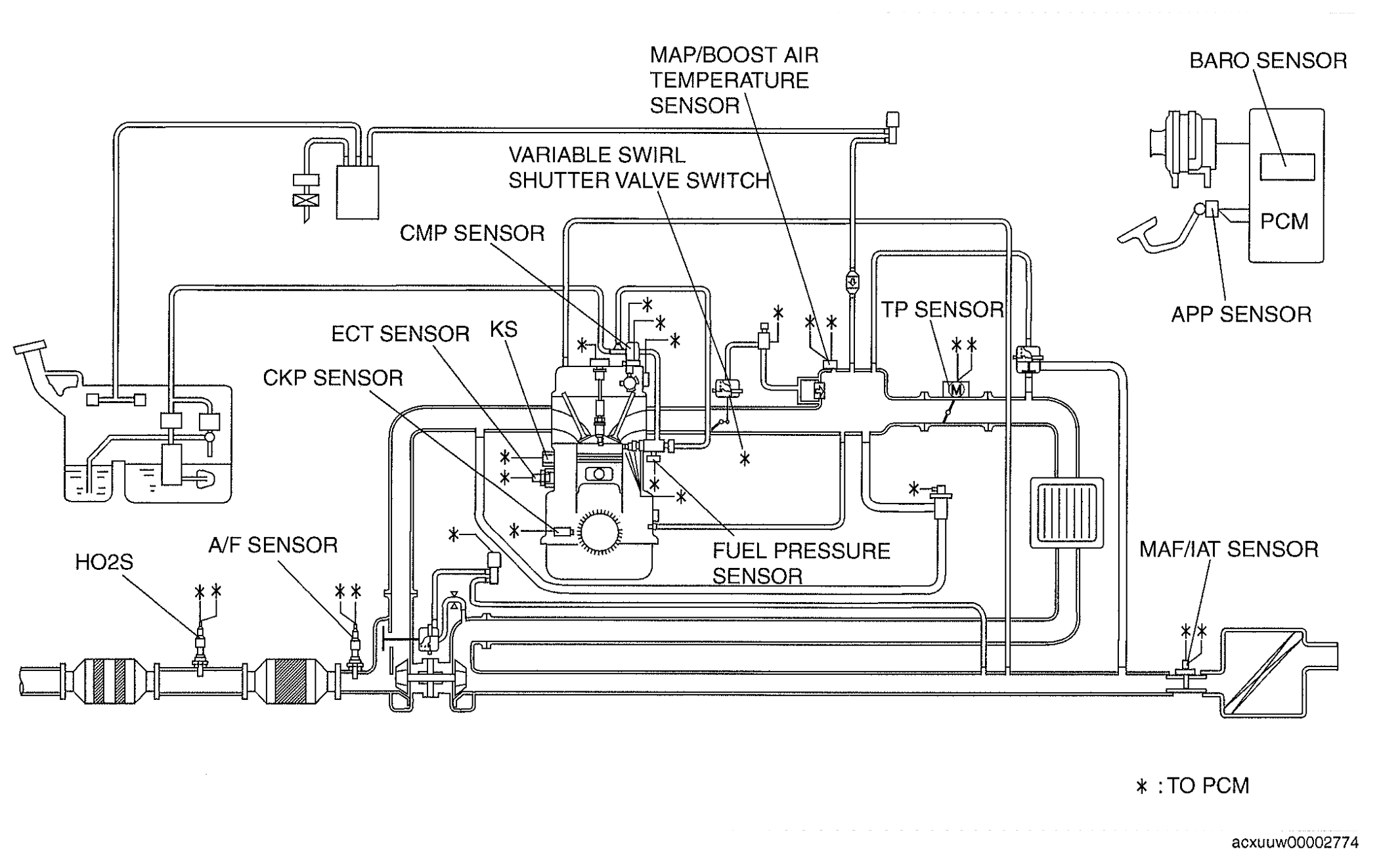

Fig 1: Control System Diagram (L3 With TC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
