Home >> Mazda >> 2009 >> CX-7 FWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Components >> Power Window Main Switch/Power Outer Mirror Switch

Power Window Main Switch/Power Outer Mirror Switch

Power Window Main Switch/Power Outer Mirror Switch:

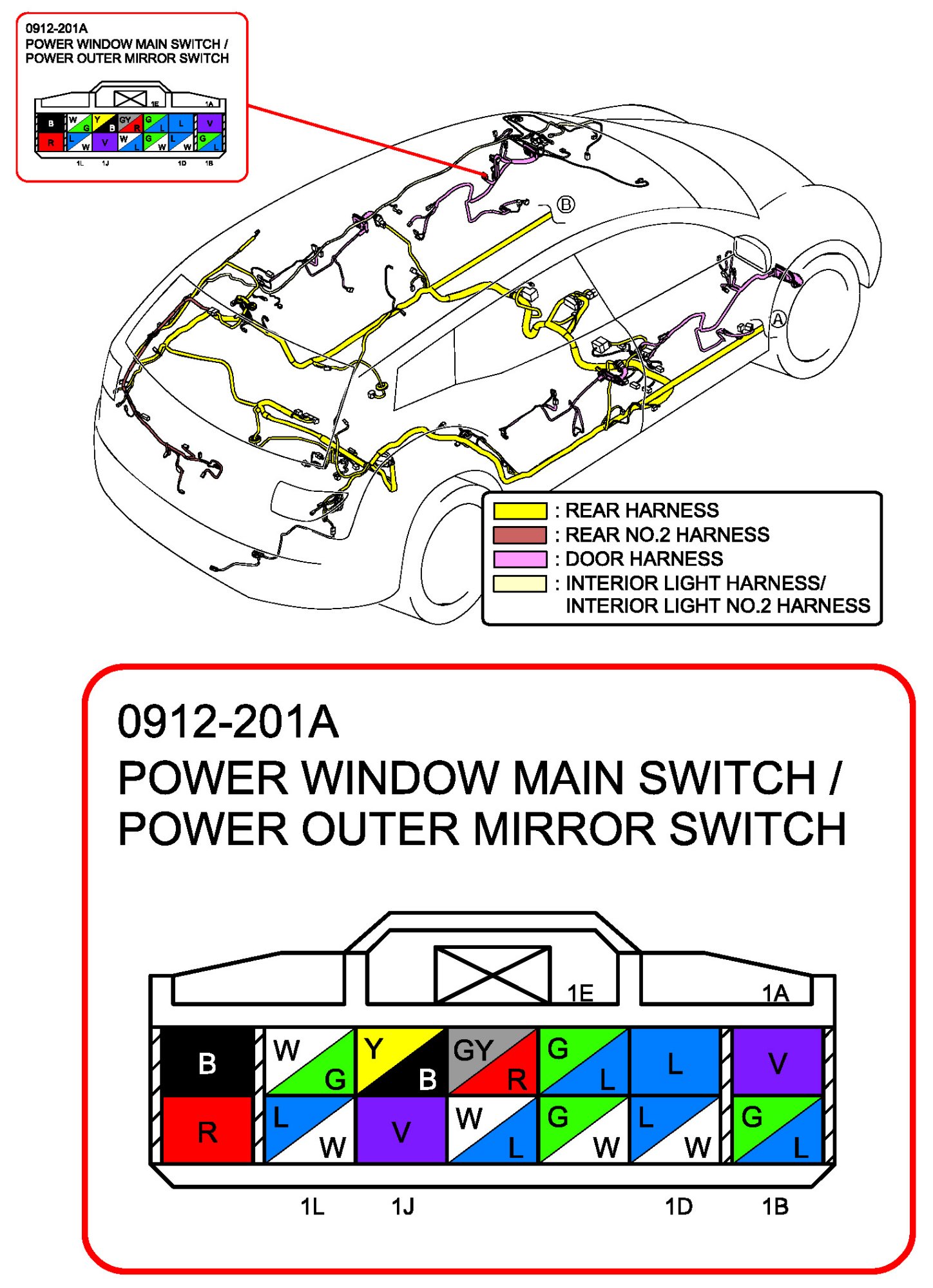

Power Window Main Switch:



Rear Power Window Subswitch LR:

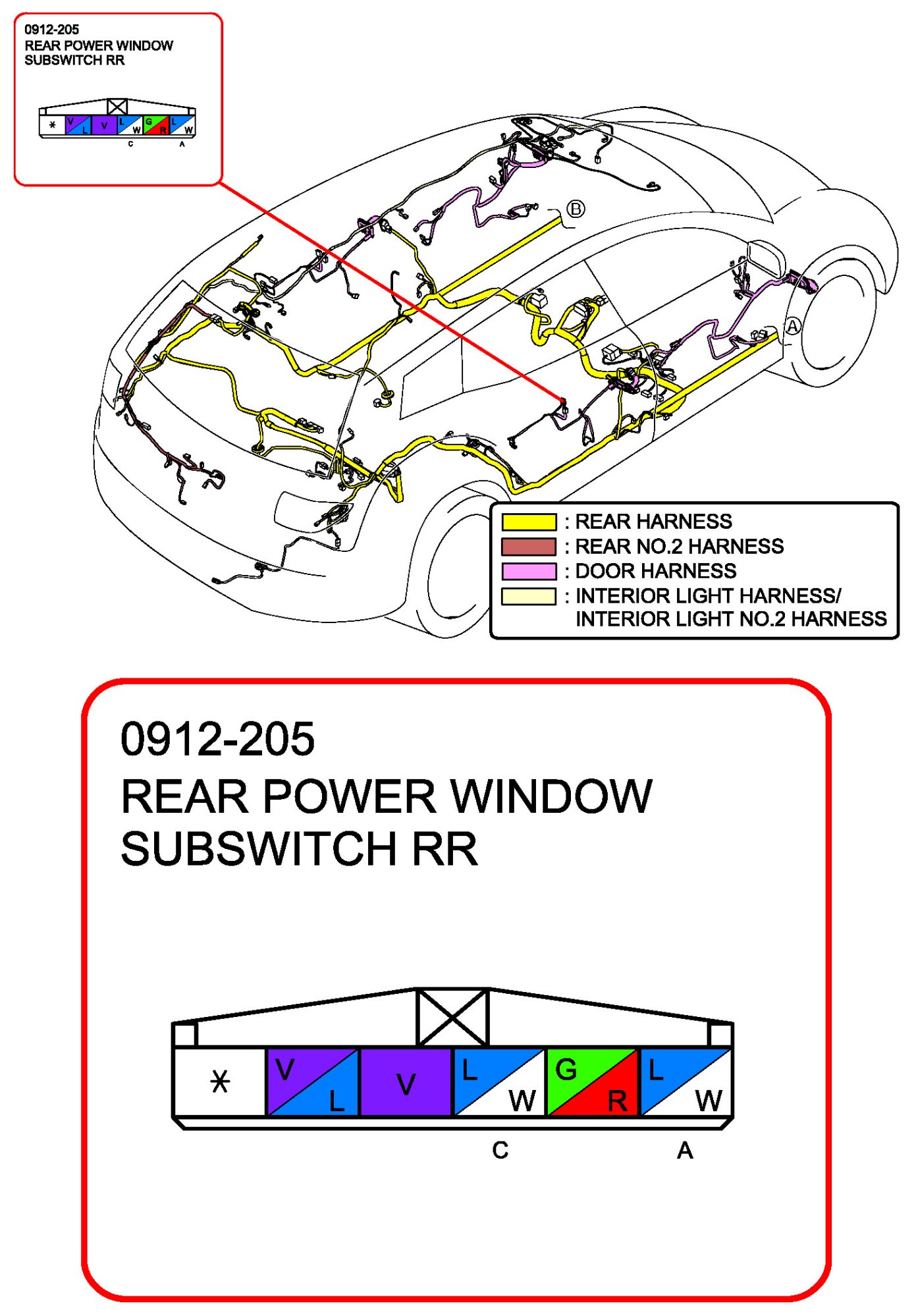

Rear Power Window Subswitch RR:



Power Window Subswitch:
