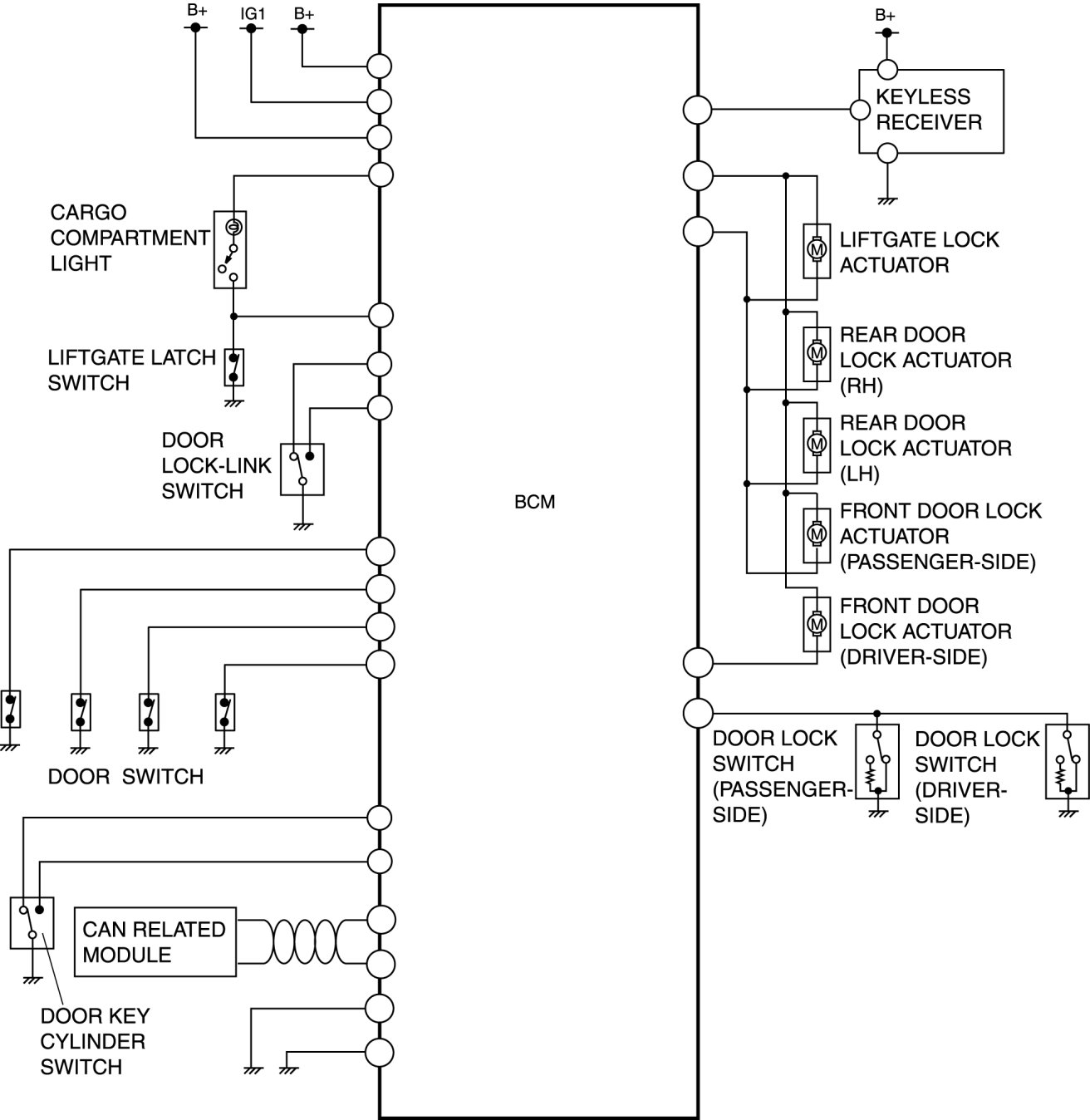

Keyless Entry System Wiring Diagram [Keyless Entry System]




KEYLESS ENTRY SYSTEM WIRING DIAGRAM [KEYLESS ENTRY SYSTEM]
