Home >> Mazda >> 2009 >> CX-7 AWD L4-2.3L Turbo >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Shift Solenoid, A/T

Shift Solenoid, A/T

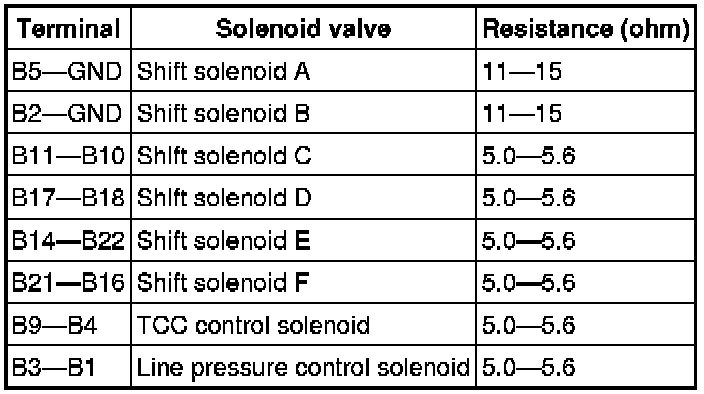

Solenoid valve resistance (ATF temperature: 20 °C {68 °F})
