Computers and Control Systems: Description and Operation

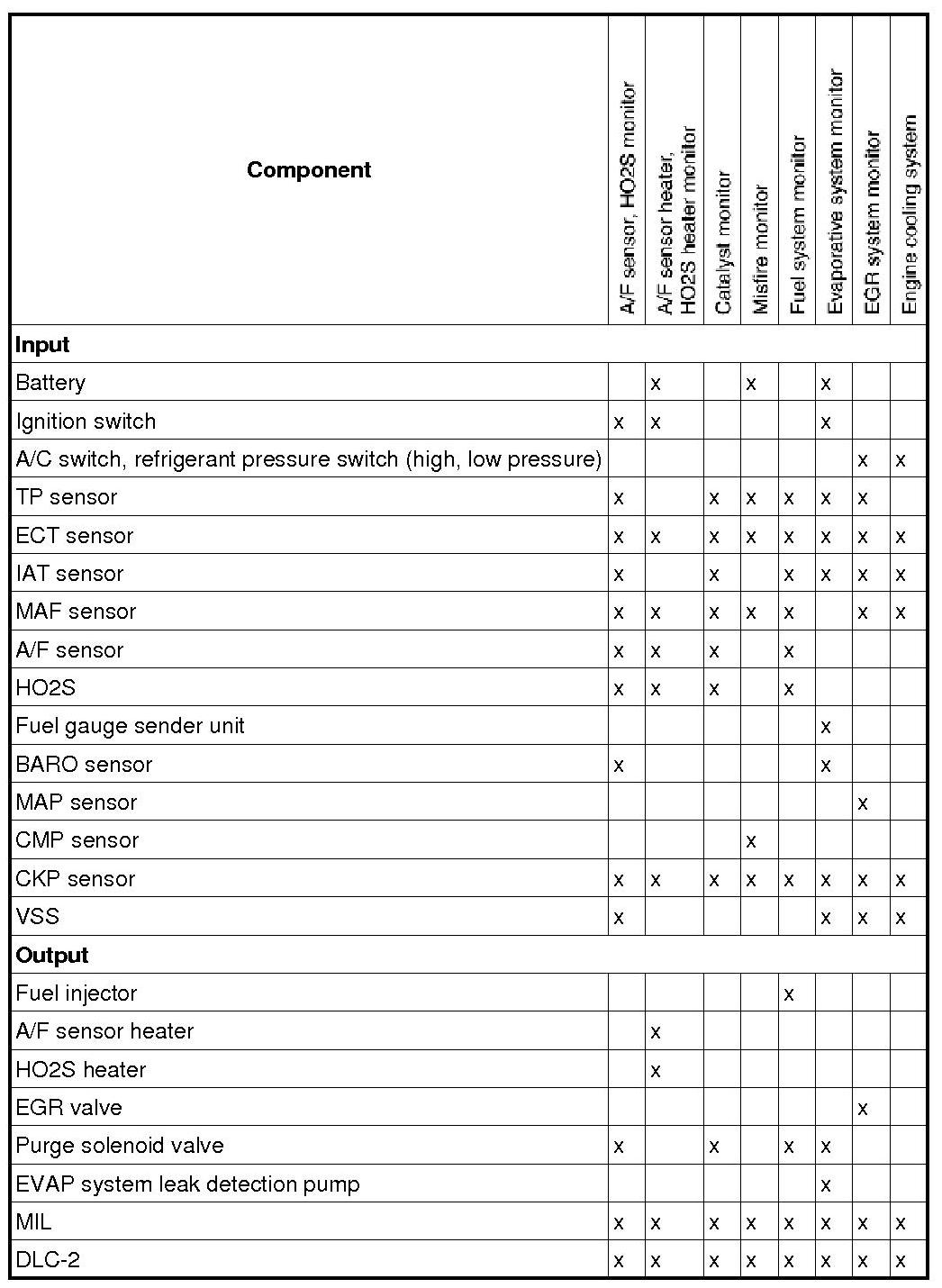

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [L3 WITH TC]
x: Applicable
