Ignition Lock Cylinder - Functional

-
IGNITION LOCK CYLINDER - FUNCTIONAL









Removal and Installation

1. Disconnect the negative battery cable. See Procedures.

2. Insert the ignition key and turn to the RUN position.

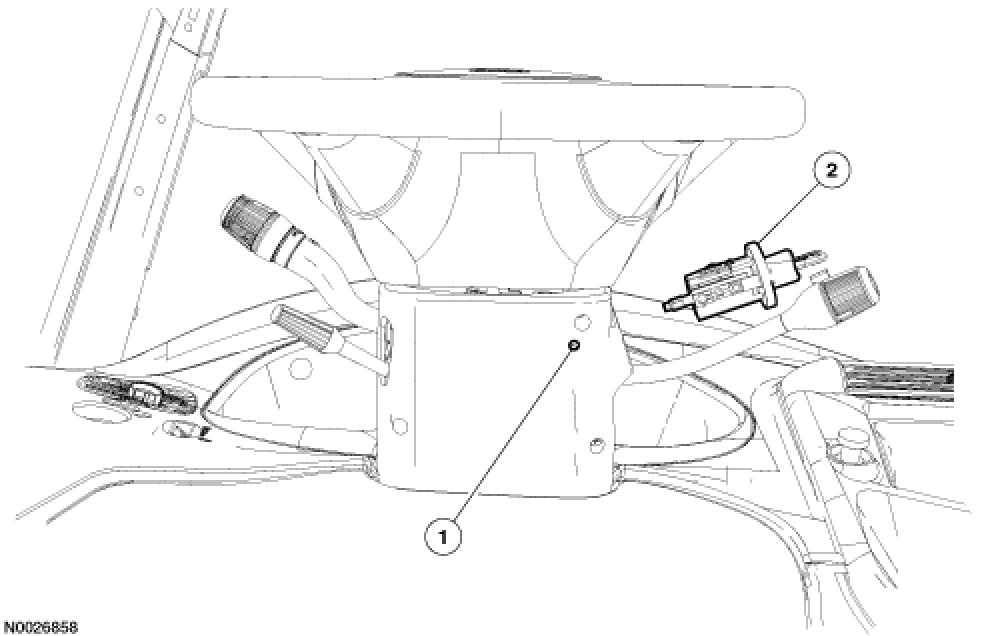

3. Press the ignition lock cylinder release pin and remove the ignition lock cylinder.

4. To install, reverse the removal procedure.

- Verify ignition lock cylinder operation.
