Connector End Views - Climate Control
Connector End Views - Climate Control
-

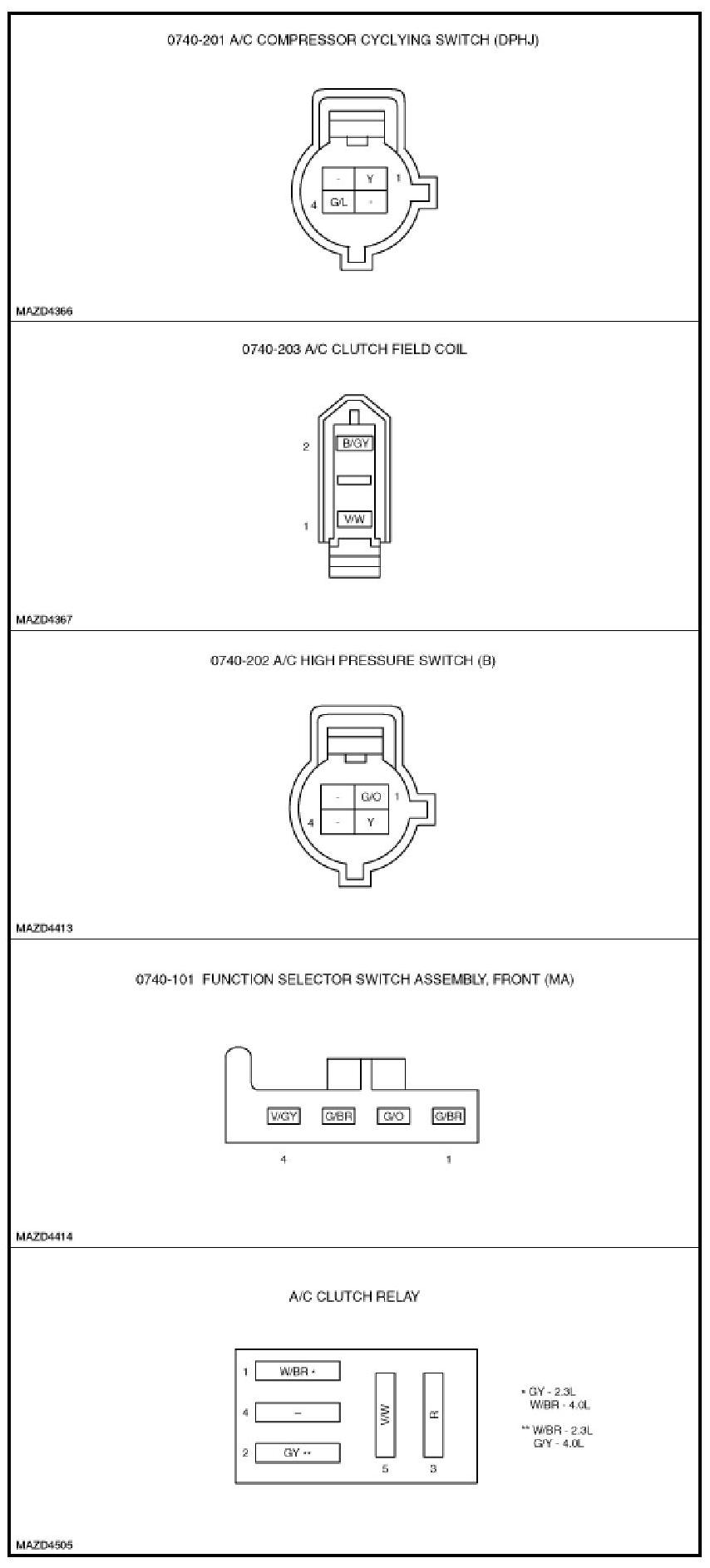

CONNECTOR END VIEWS - CLIMATE CONTROL
