Climate Control Pinpoint Test 7: Blower Motor Does Not Operate
Climate Control Pinpoint Test 7: Blower Motor Does Not Operate
CLIMATE CONTROL PINPOINT TEST 7:
BLOWER MOTOR
DOES NOT OPERATE

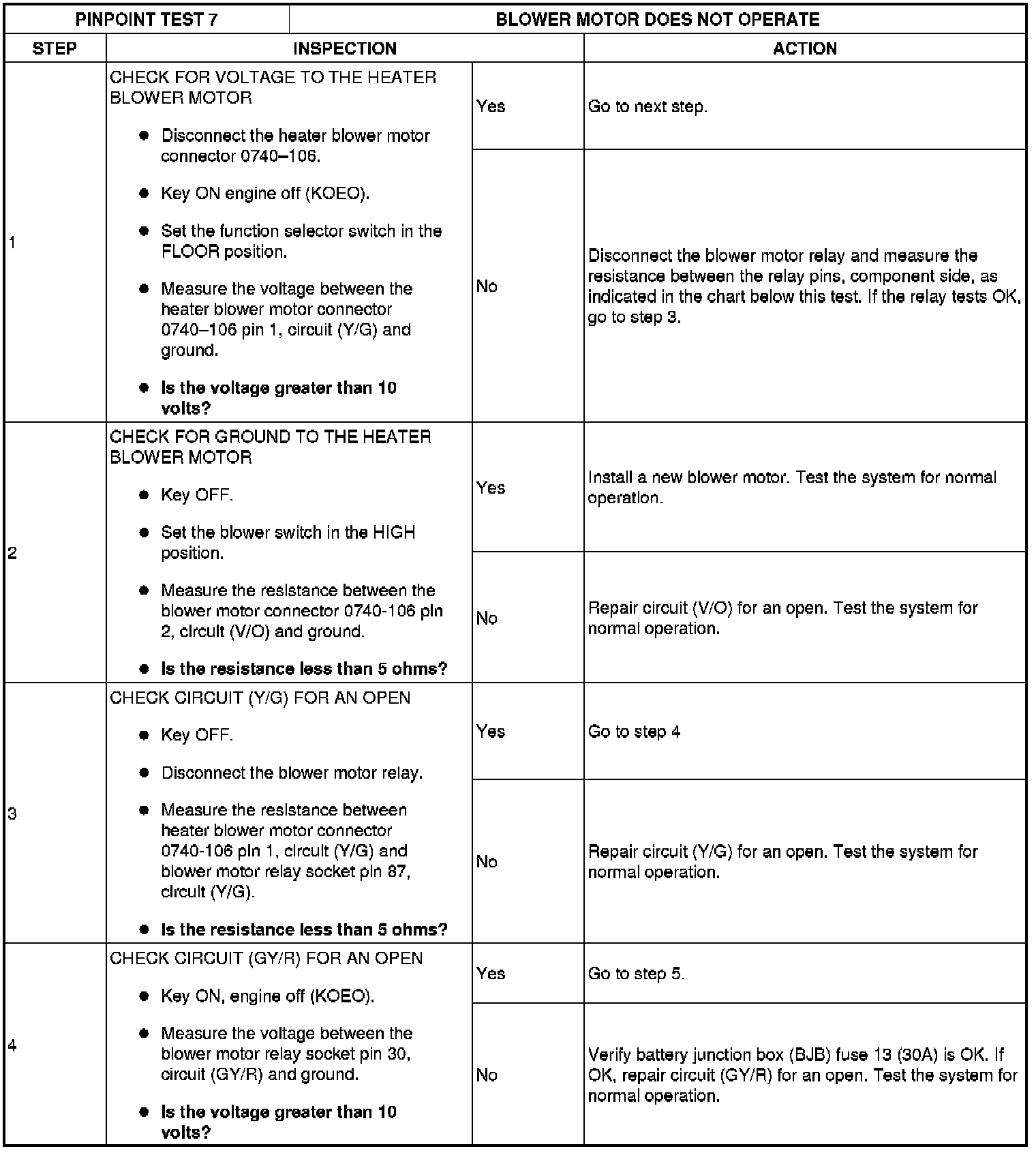

Step 1-Step 4:
Step 5-Step 6:
