Pinpoint Test 2: Set Speed Fluctuates




CRUISE CONTROL SYSTEM PINPOINT TEST 2: SET SPEED FLUCTUATES

NOTE:It is normal for the engine rpm to increase slightly and then drop off slowly when the clutch pedal is applied during operation.

Step 1-Step 3:





Step 4:

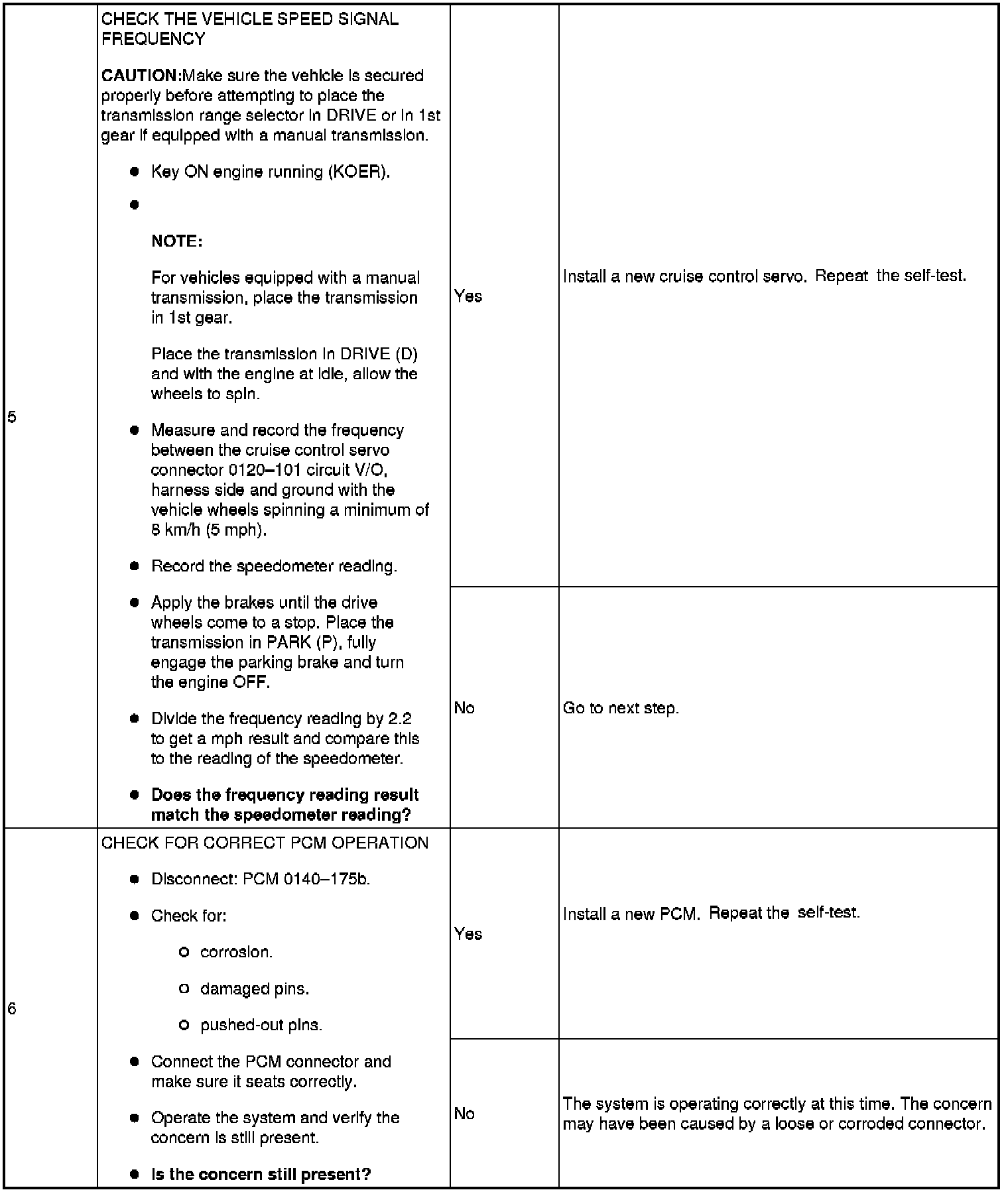

Step 5-Step 6:
