Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (L5)
>>
Control System Diagram [L5]
Control System Diagram [L5]

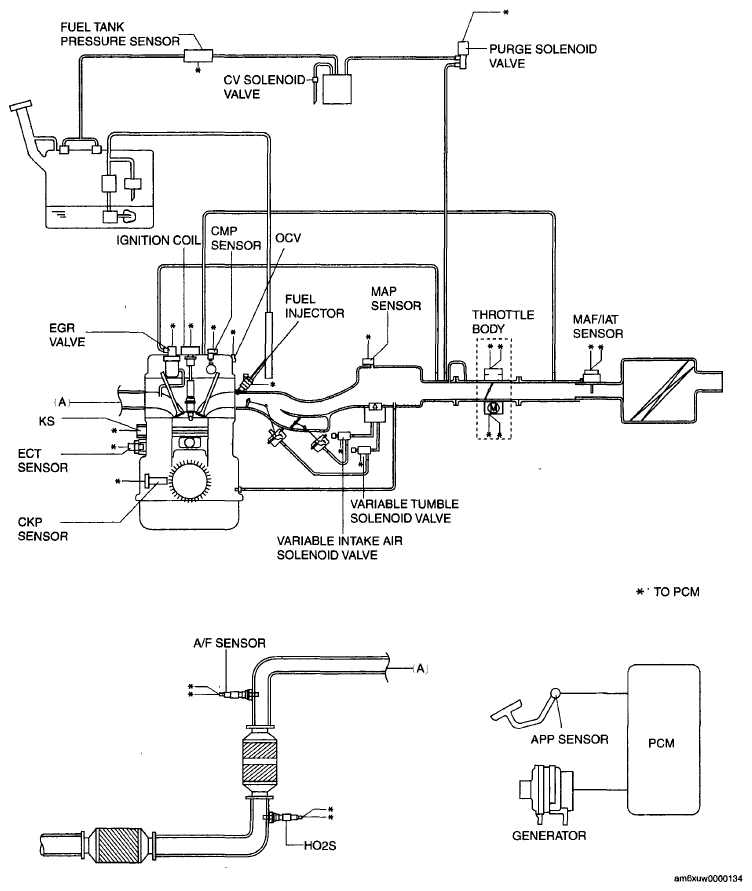

Fig 1: Control System Diagram [L5]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
