Seat Temperature Switch: Testing and Inspection

SEAT WARMER SWITCH INSPECTION

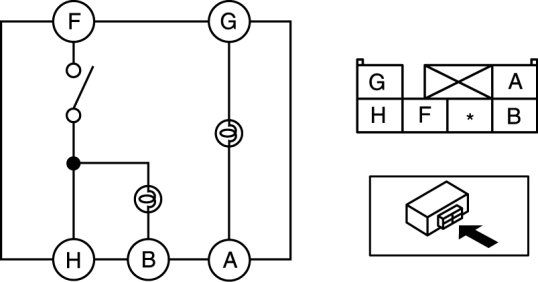

Driver's side

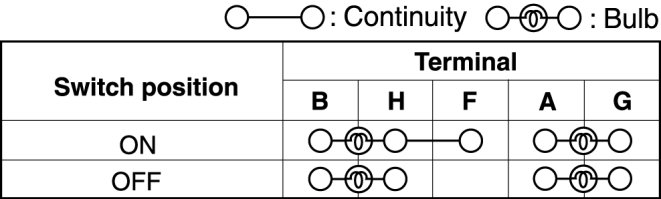

1. Verify that the continuity between the seat warmer switch terminals is as indicated in the table






- If not as indicated in the table, replace the seat warmer switch.

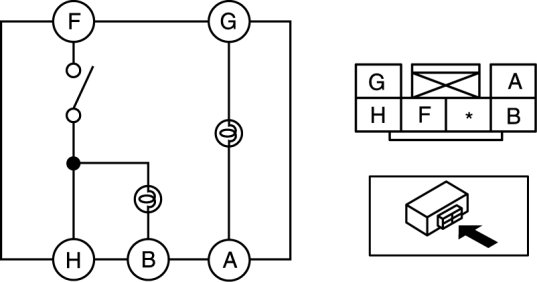

Passenger's side

1. Verify that the continuity between the seat warmer switch terminals is as indicated in the table






- If not as indicated in the table, replace the seat warmer switch.
