Grille: Service and Repair

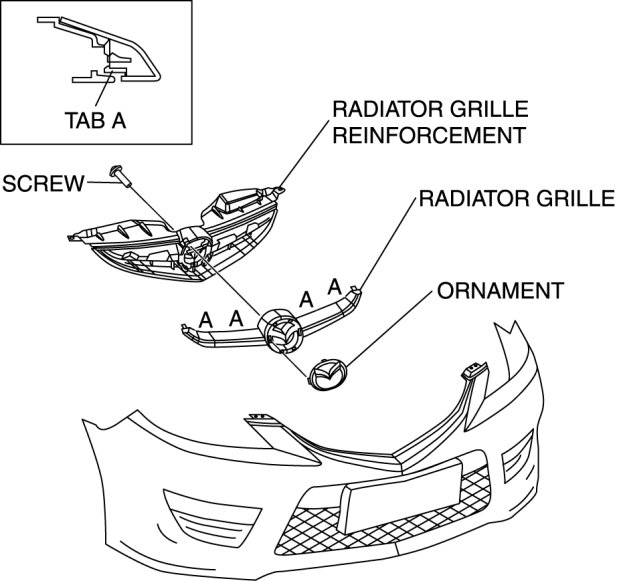

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Remove the front bumper. Removal and Replacement

2. Remove the screw.






3. Remove tab A and then remove the radiator grille.

4. Remove the ornament.

5. Install in the reverse order of removal.
