Mazda
>>
2009
>>
3 L4-2.3L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Motor
>>
Locations
>>
Connector Locations
Connector Locations

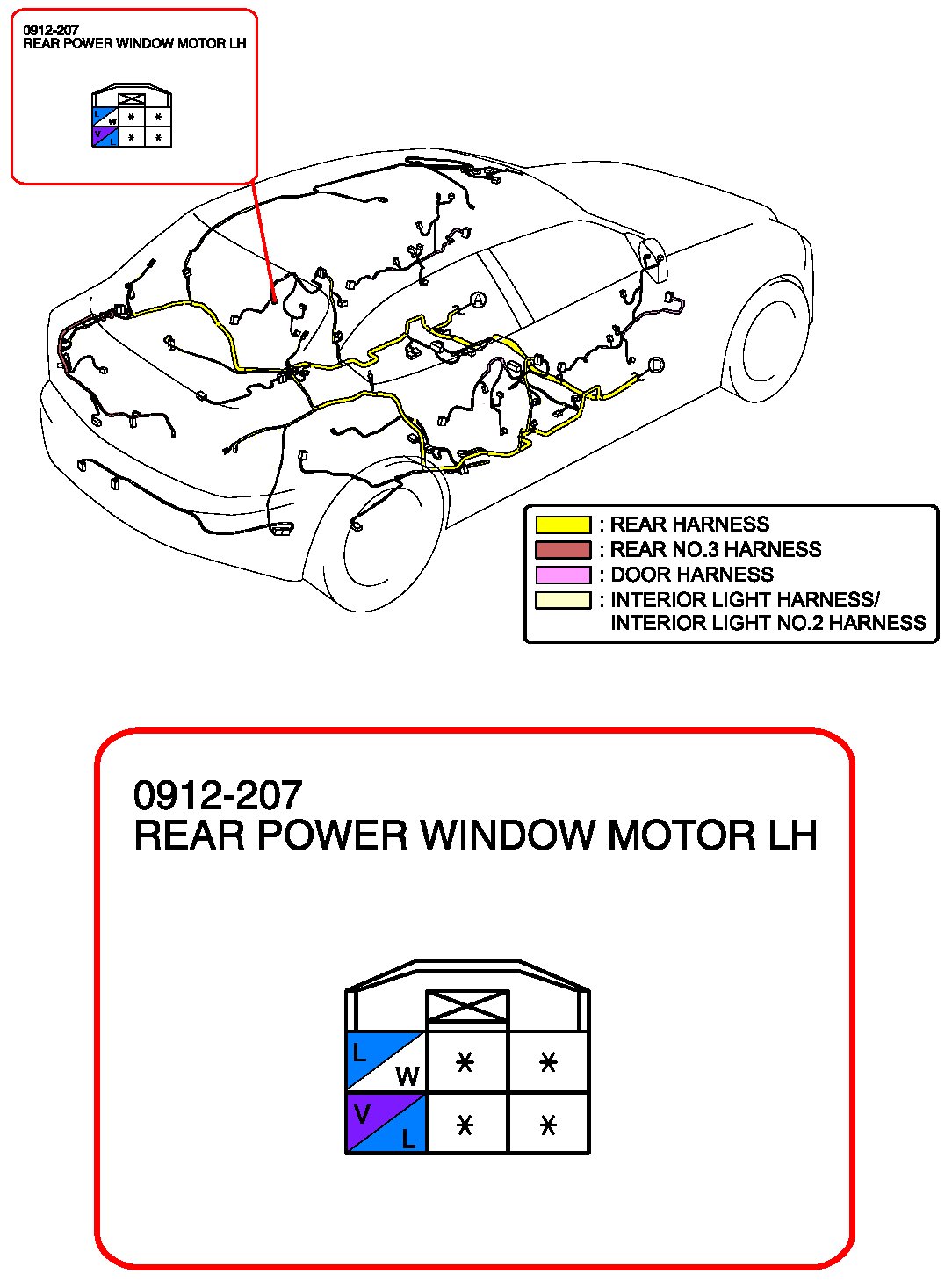

Rear Power Window Motor LH:

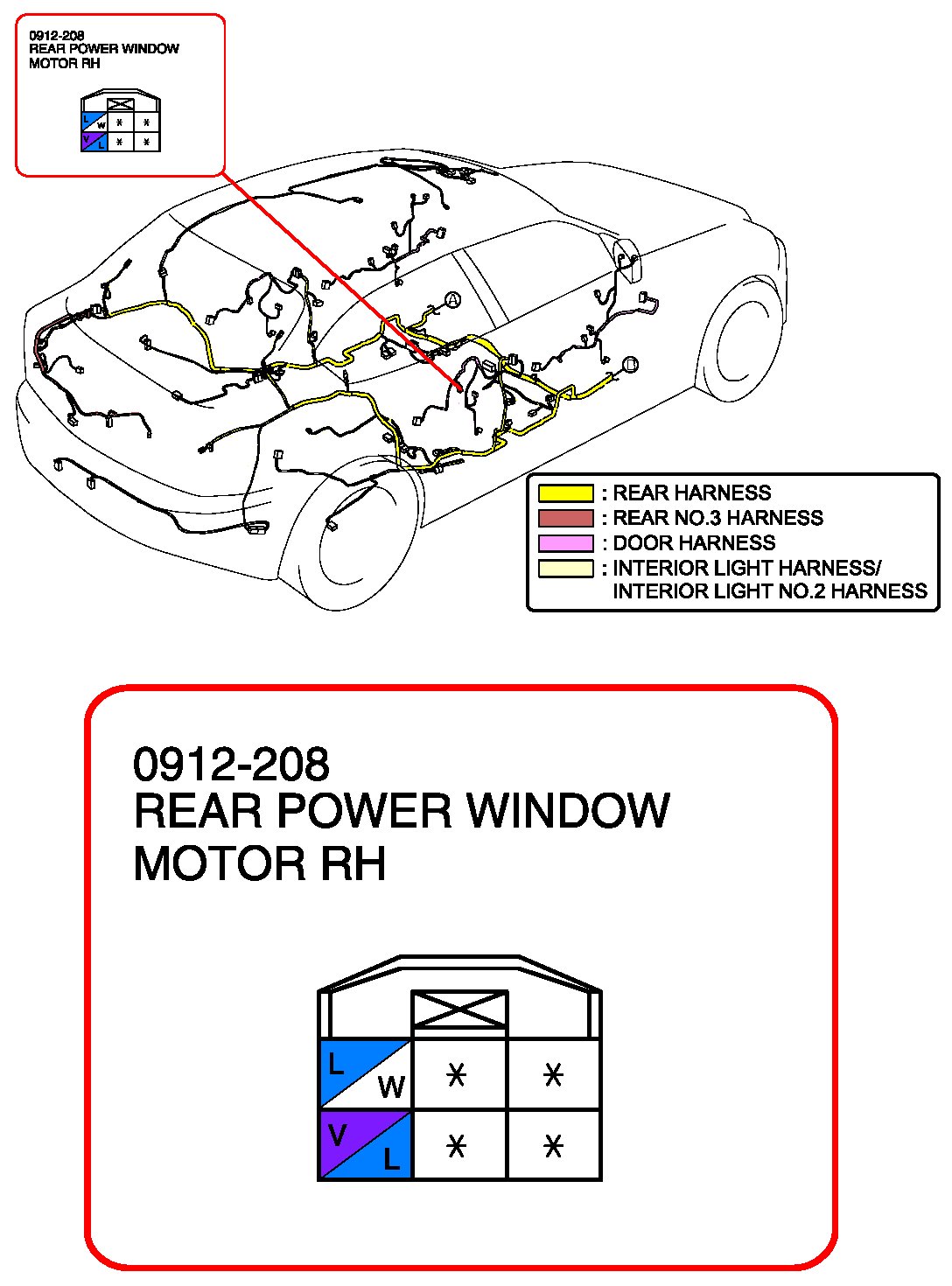

Rear Power Window Motor RH:

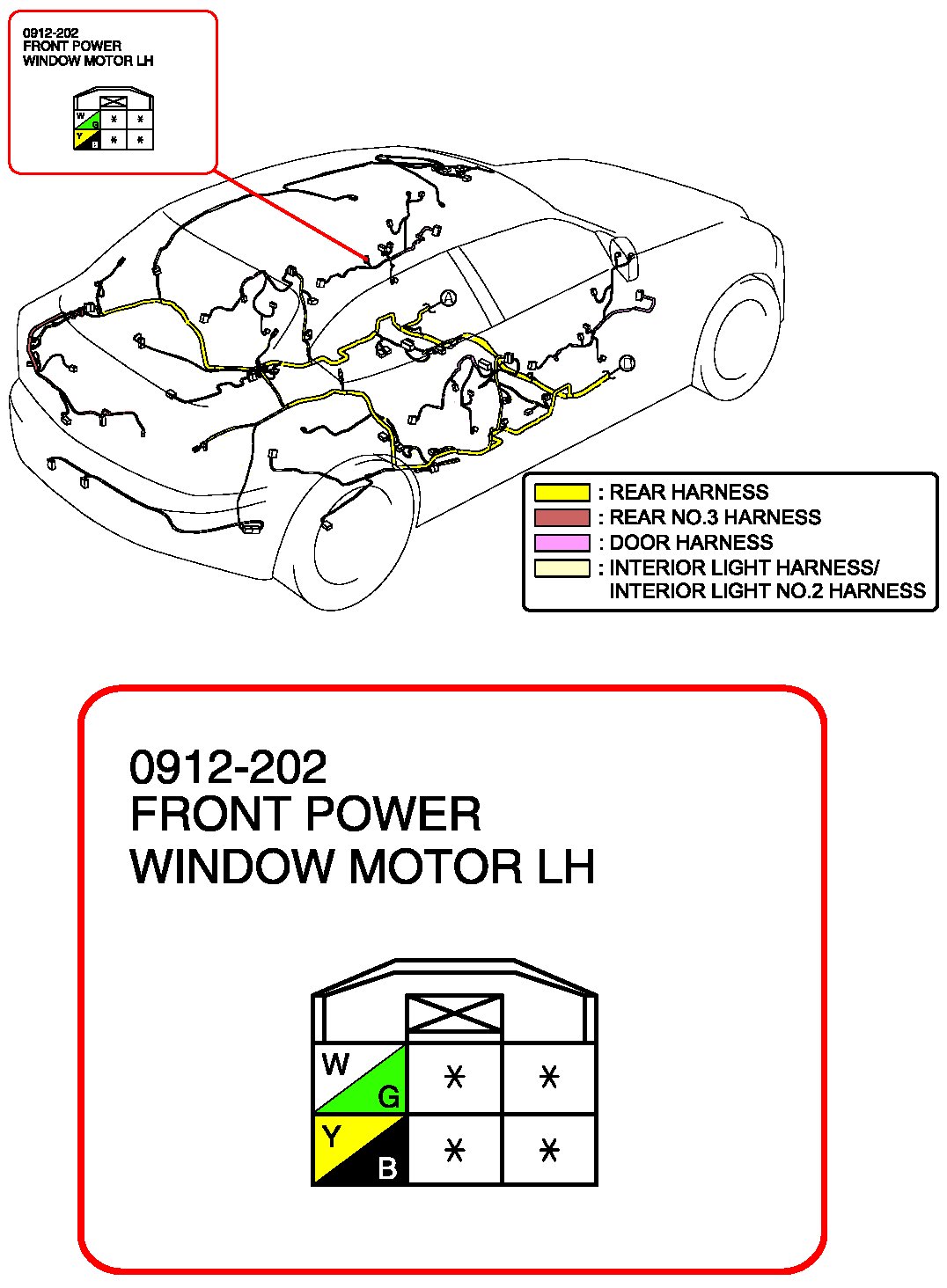

Front Power Window Motor LH:

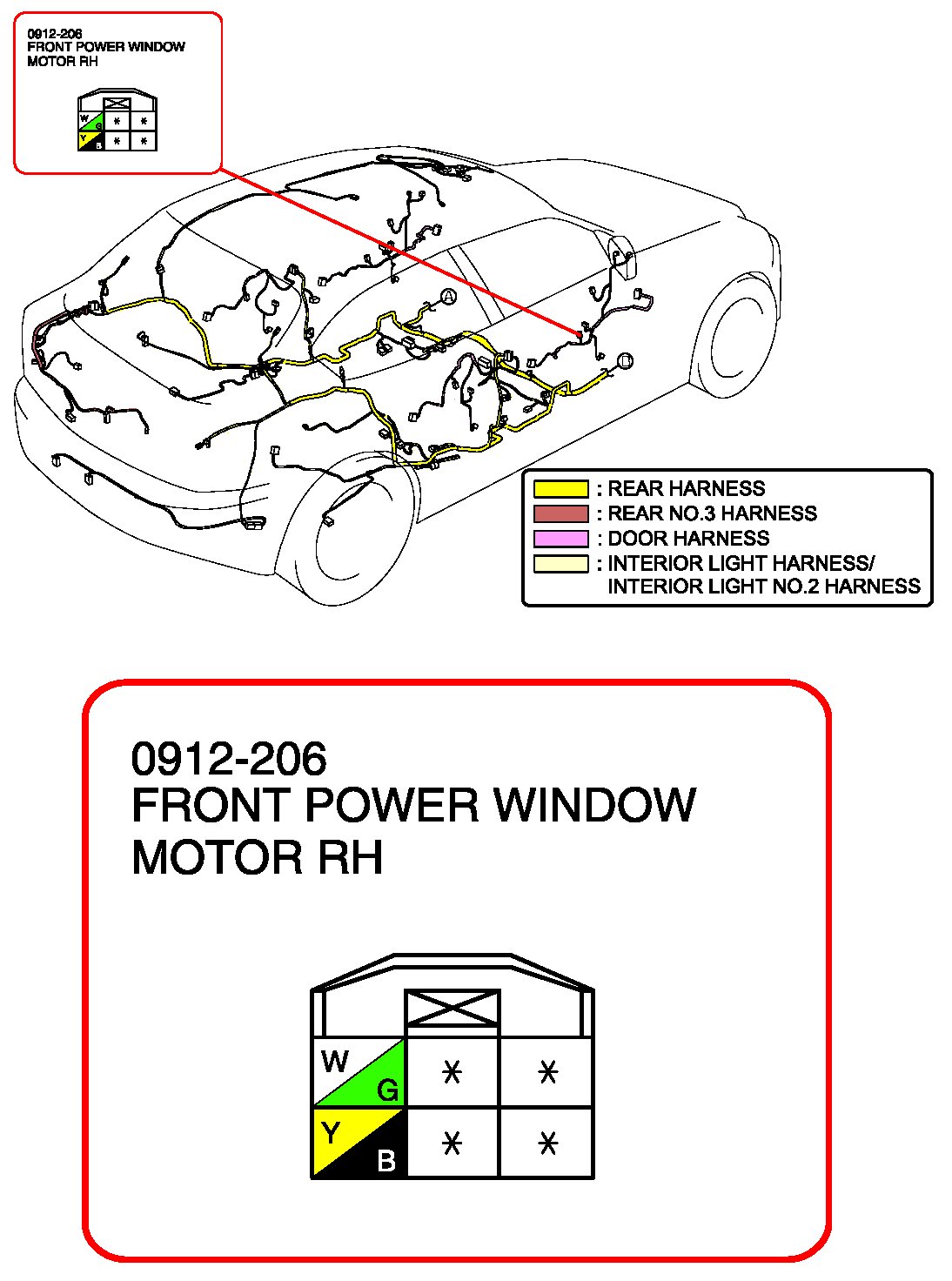

Front Power Window Motor RH:
