Home >> Mazda >> 2009 >> 3 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations >> Connector Locations >> Full-Auto Air Conditioning System

Full-Auto Air Conditioning System

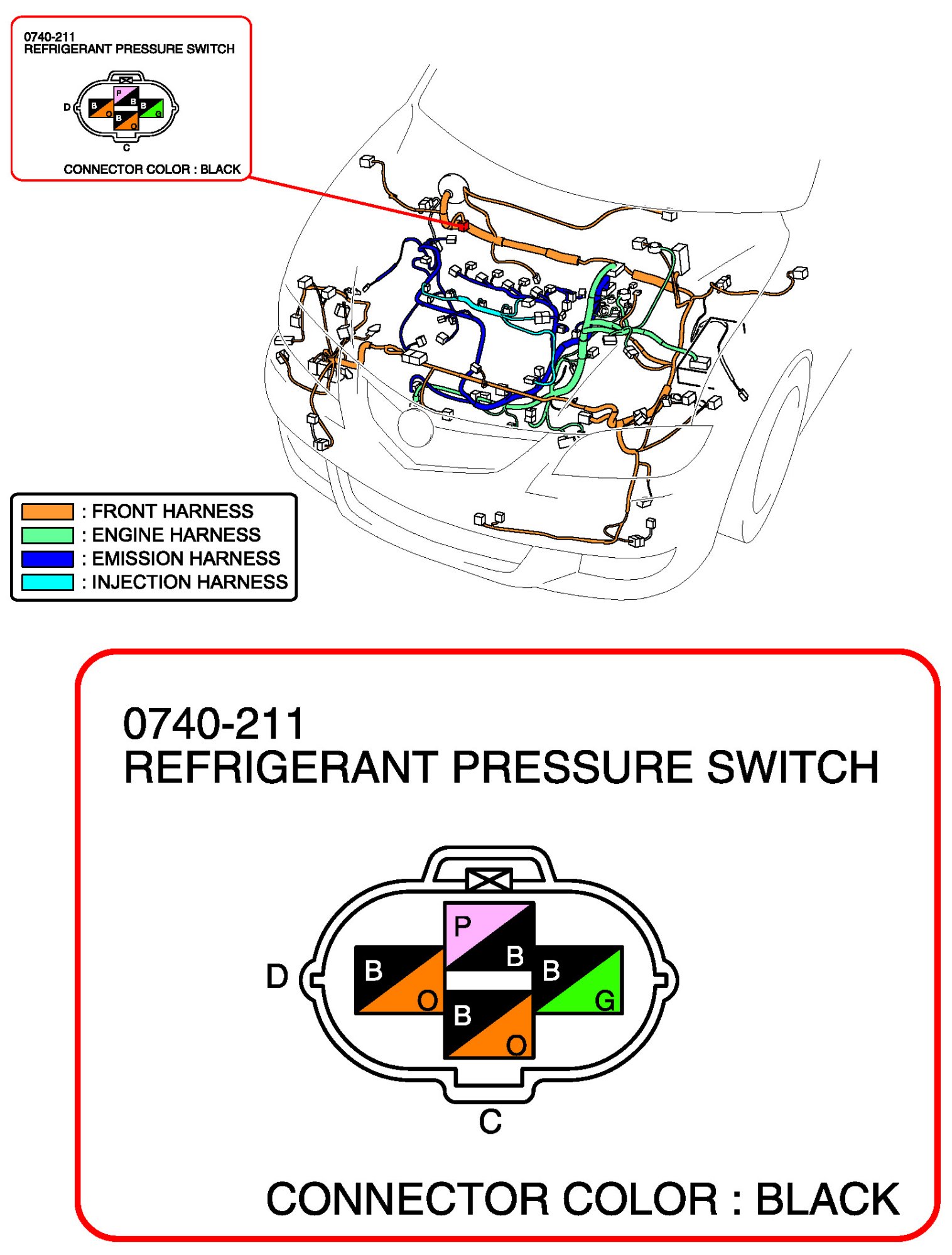

Refrigerant Pressure Switch:
