Home >> Mazda >> 2009 >> 3 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Locations

Blower Motor Resistor: Locations

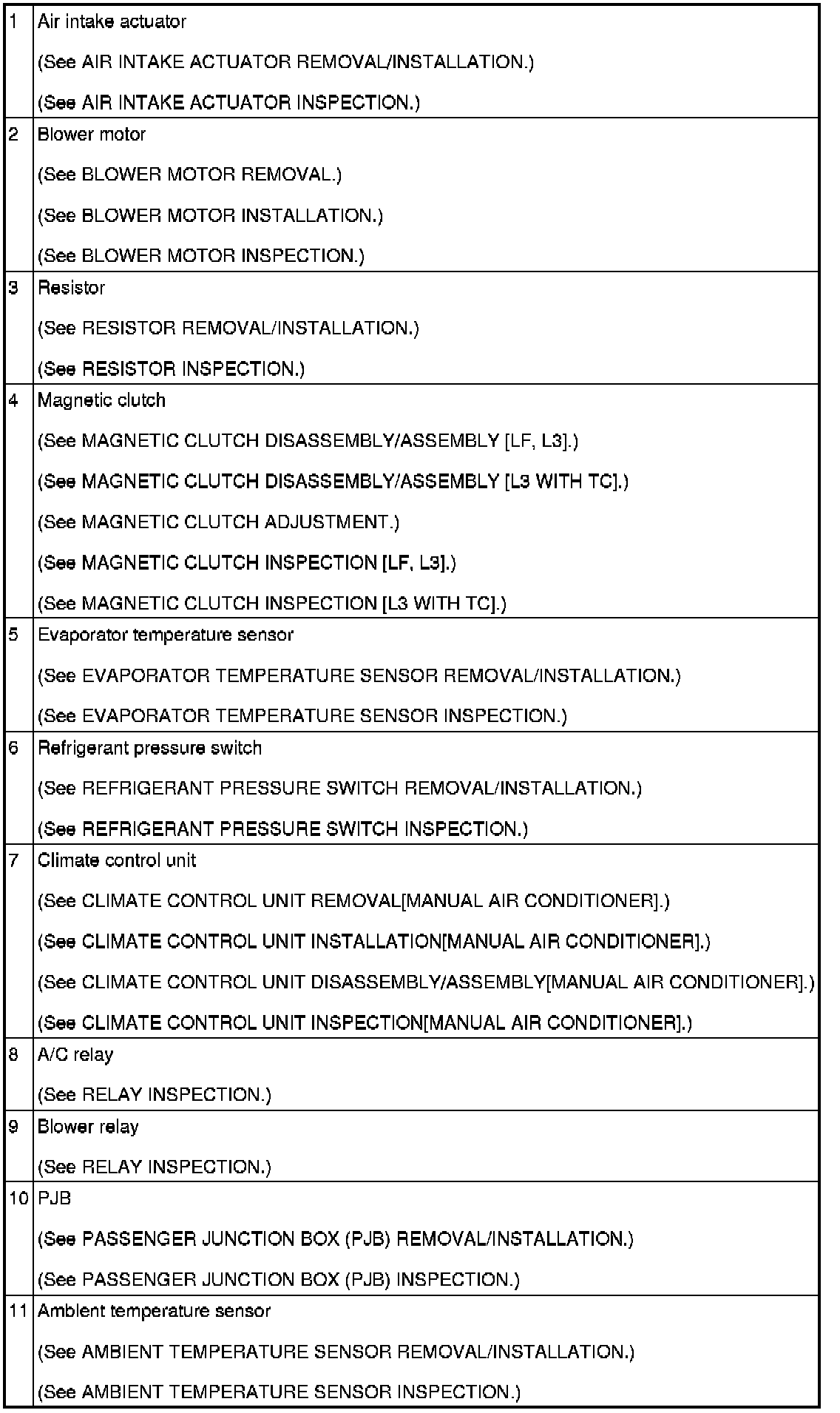

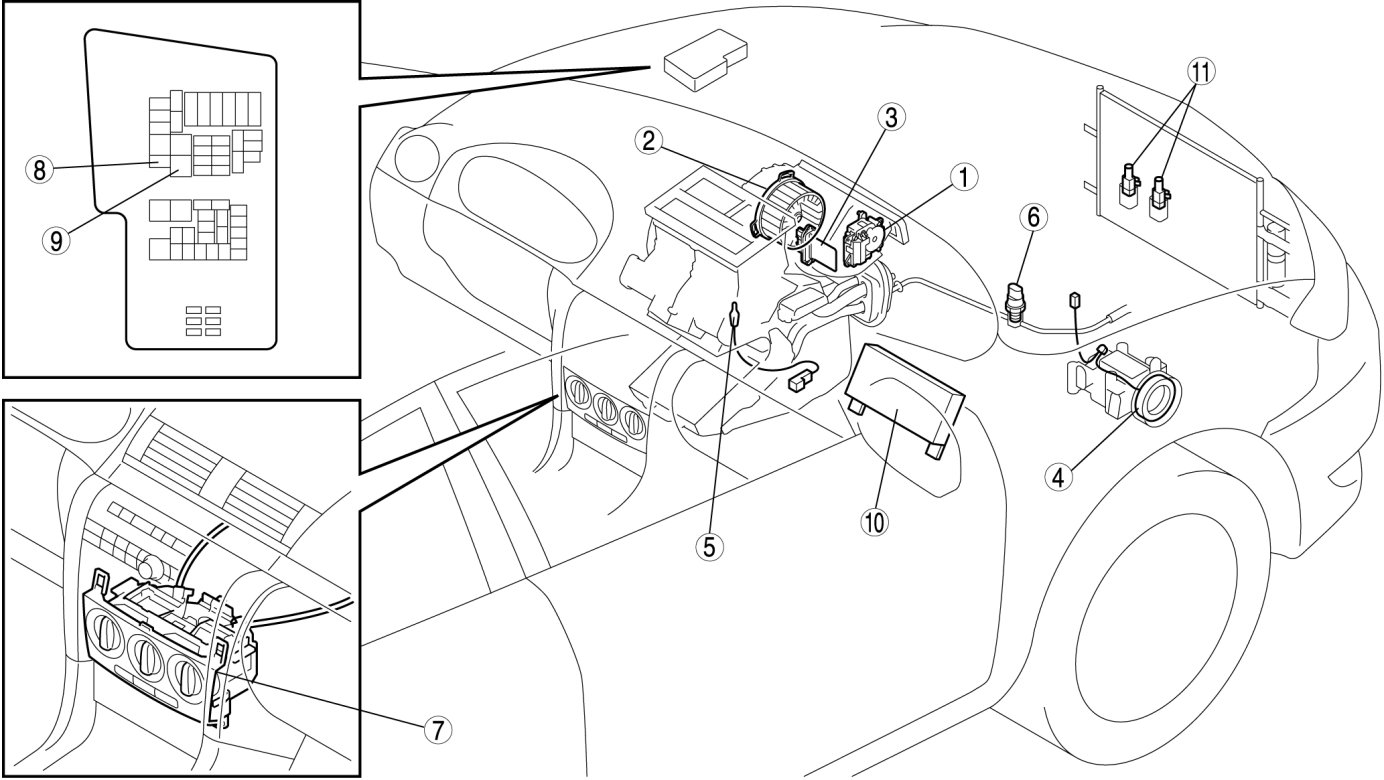

HVAC CONTROL SYSTEM LOCATION INDEX [MANUAL AIR CONDITIONER]
