Power Door Lock Switch: Testing and Inspection

DOOR LOCK SWITCH INSPECTION

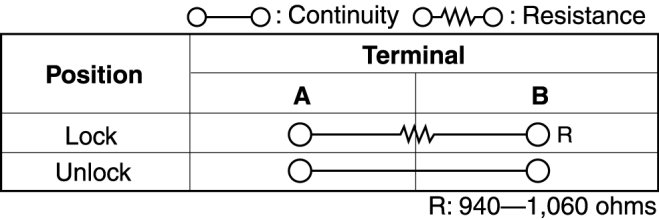

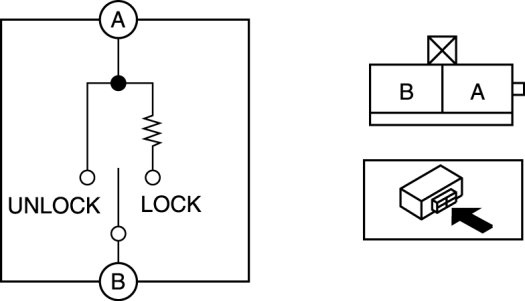

1. Inspect for continuity between the door lock switch terminals using an ohmmeter.






- If not as specified, replace the door lock switch.
