Power Mirror Switch: Testing and Inspection

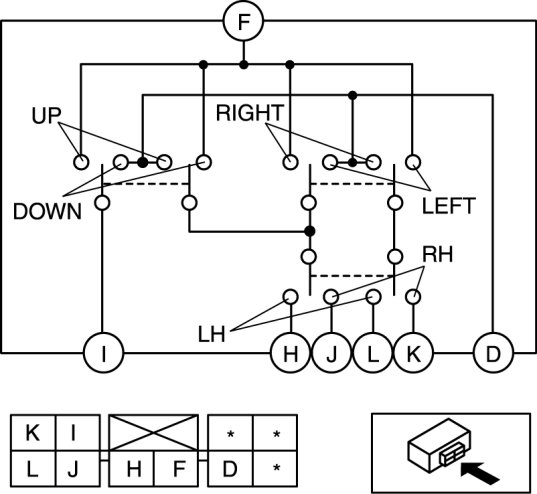

POWER OUTER MIRROR SWITCH INSPECTION

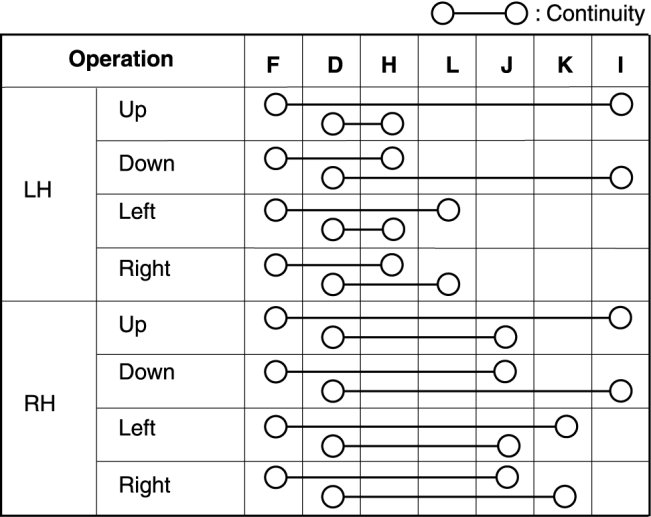

1. Inspect for continuity between the power outer mirror switch terminals.






- If not as specified, replace the power outer mirror switch.
