Home >> Mazda >> 2008 >> Tribute s Sport, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Except Hybrid >> Powertrain Control Module (Pcm) - 3.0L (4V) Removal/Installation >> Notes

Powertrain Control Module (Pcm) - 3.0L (4V) Removal/Installation: Notes

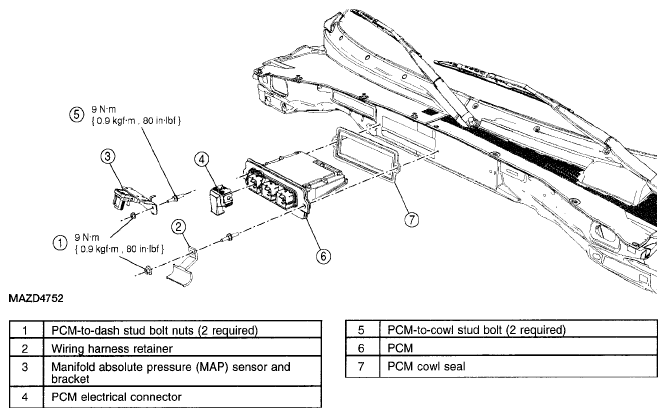

Fig 1: Powertrain Control Module (PCM) With Torque Specifications -- 3.0L (4V) Replacement Components
G05464987Courtesy of MAZDA MOTORS CORP.
