Transmission Mount, CVT

-
TRANSAXLE SUPPORT INSULATOR AND RETAINER EXPLODED VIEW - HYBRID

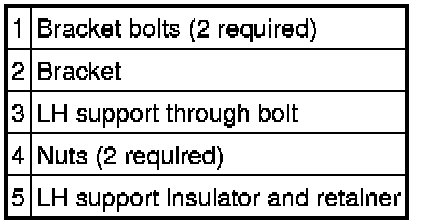

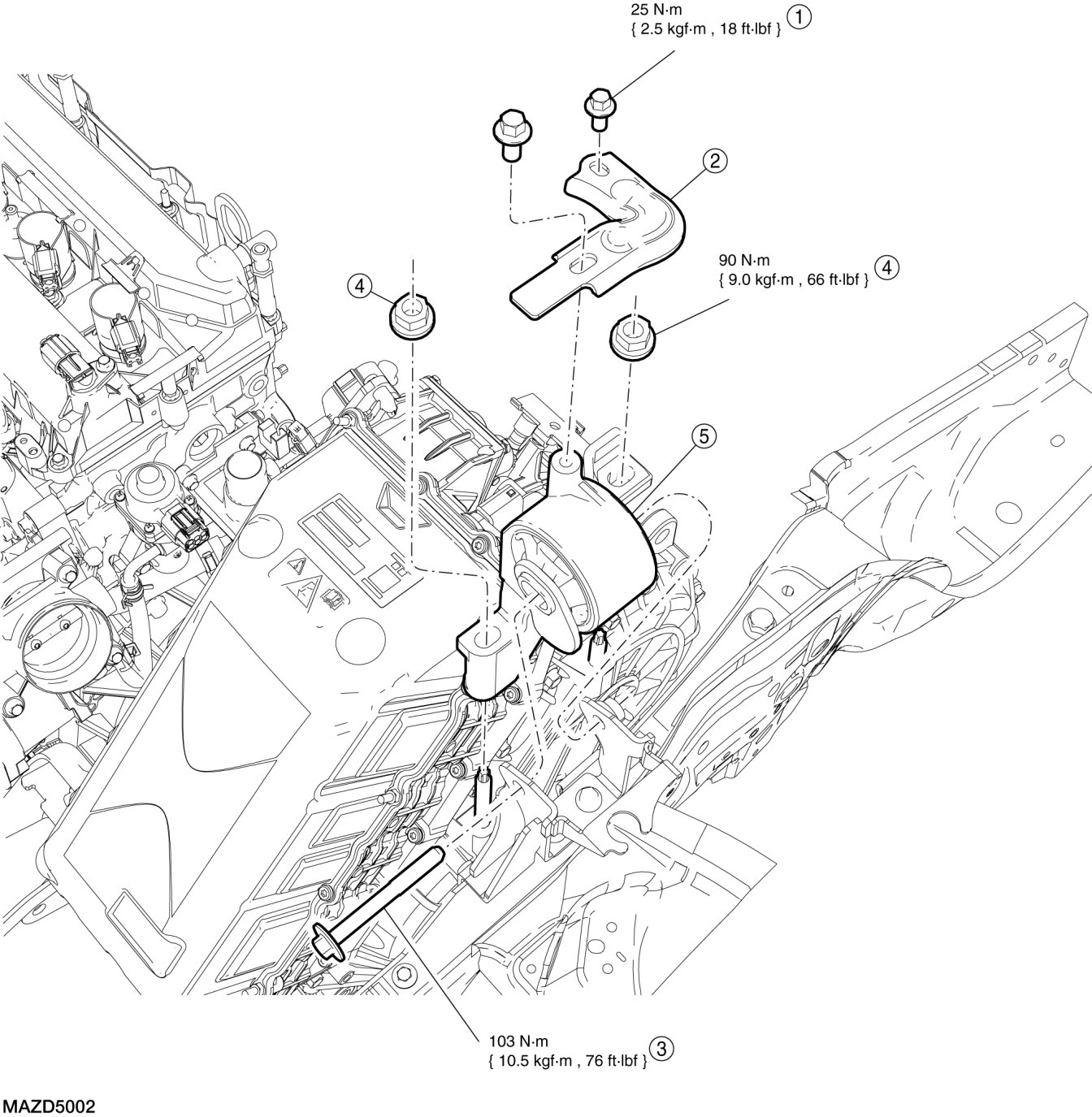

Transaxle Insulator and Retainer - Upper

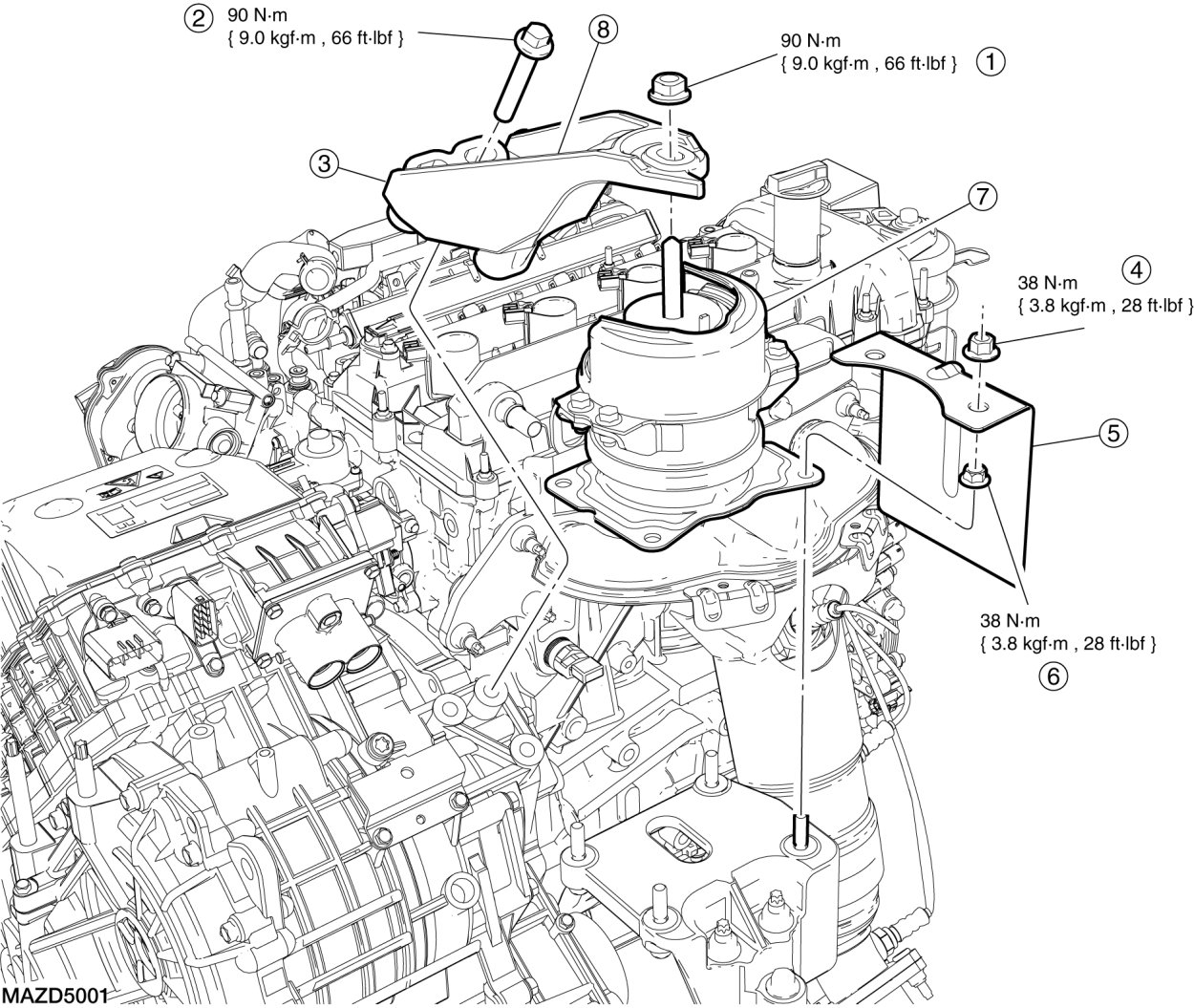

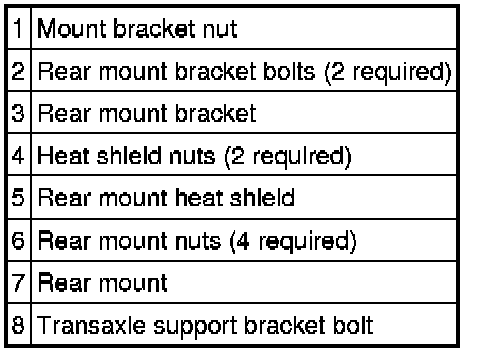

Transaxle Insulator and Retainer - Rear - Early Build

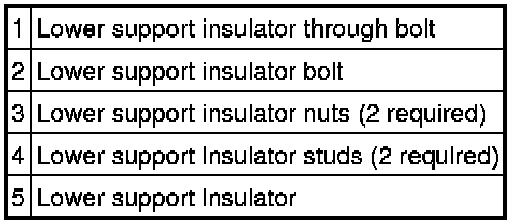

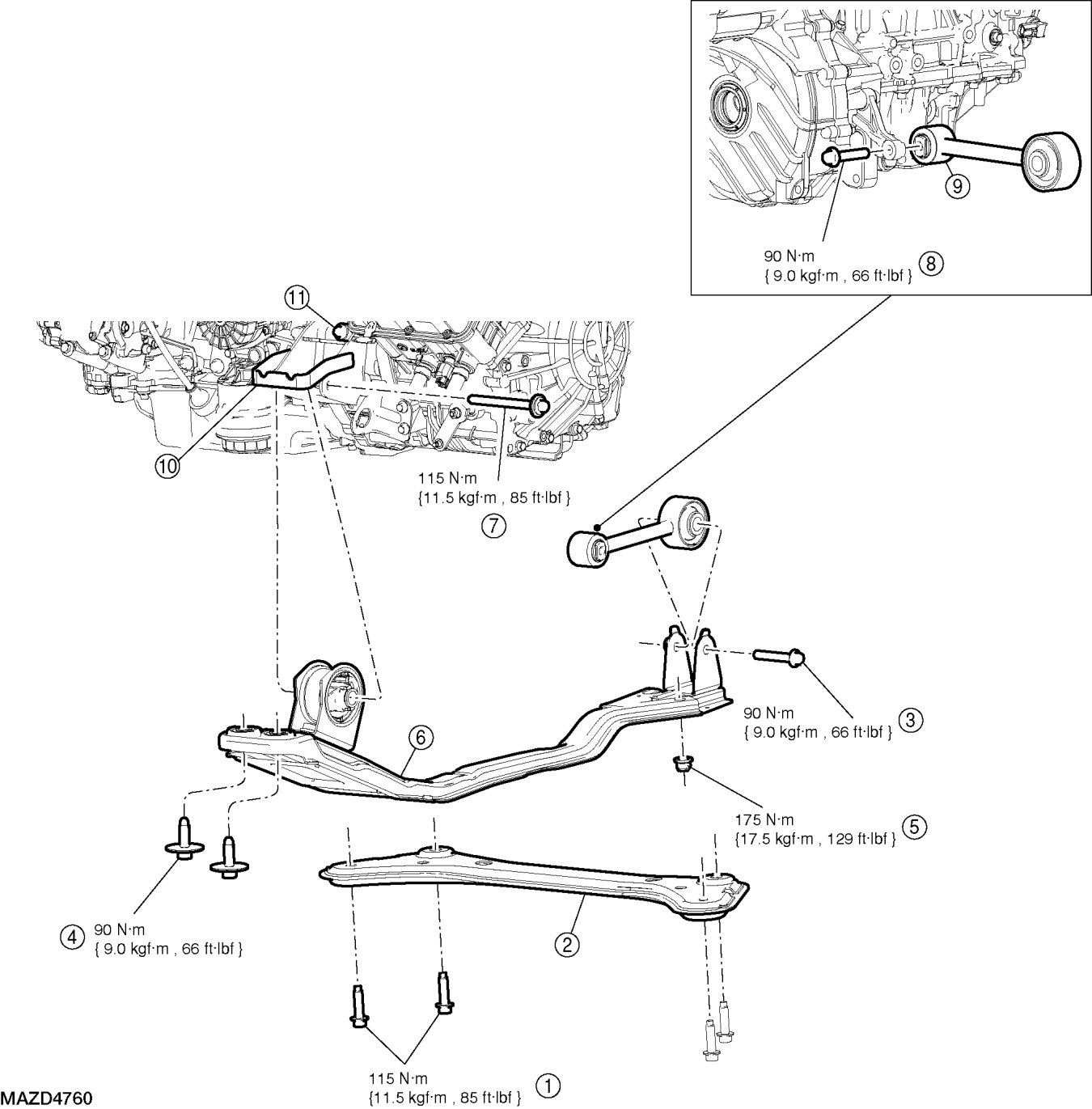

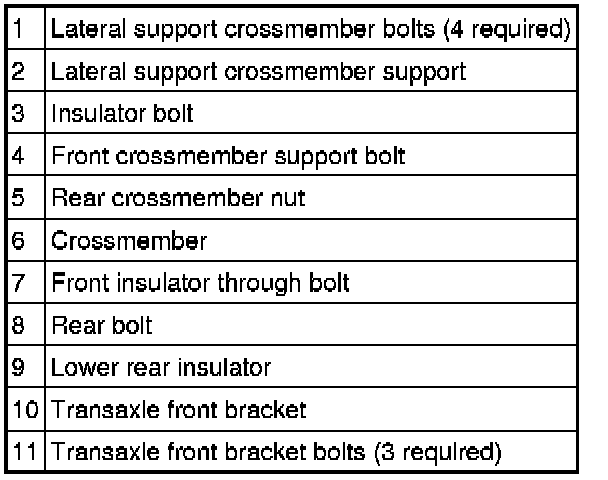

Transaxle Insulator and Retainer - Lower

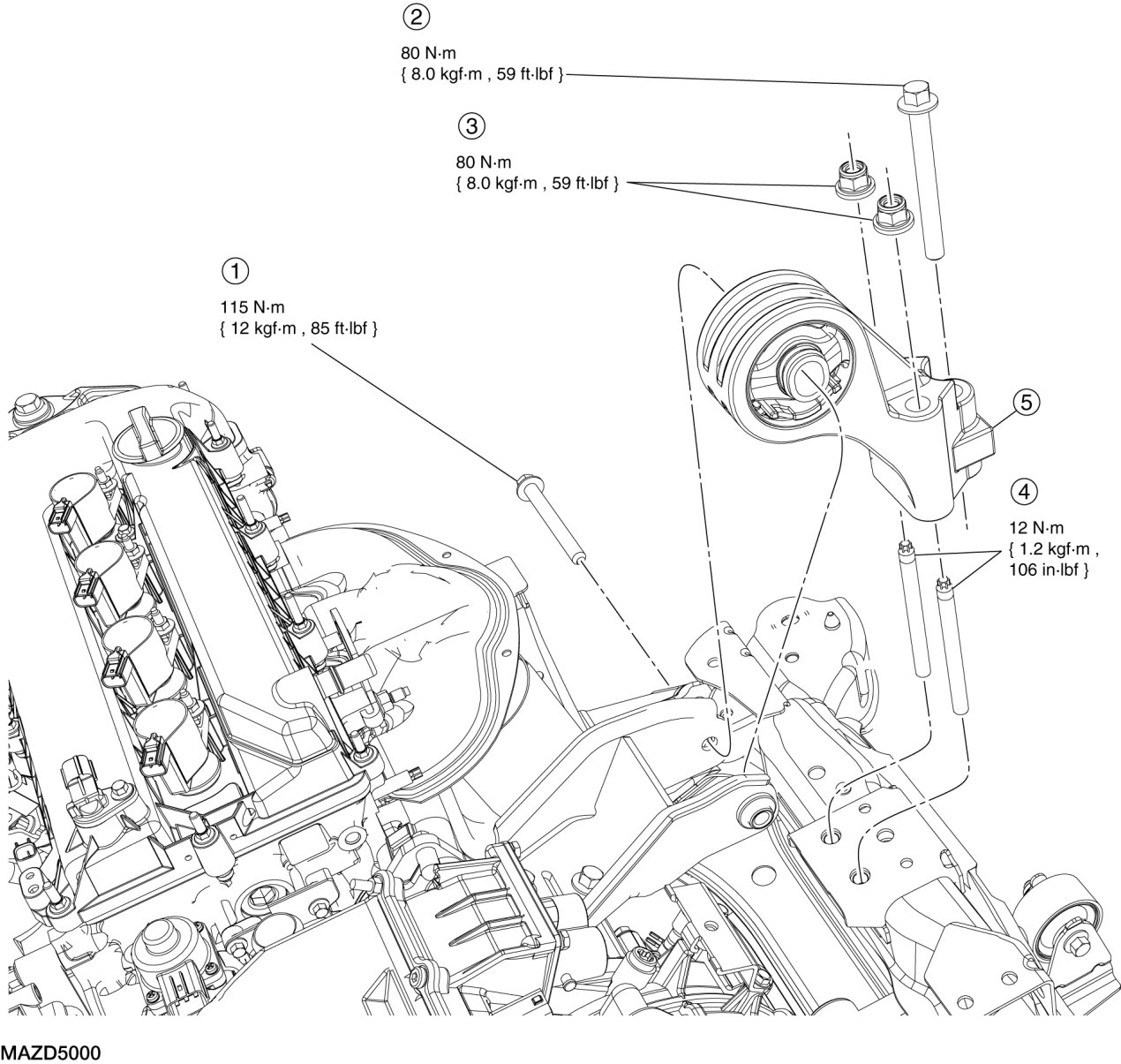

Transaxle Insulator and Retainer - Late Build










1. For additional information, see the procedures.
