Front Disc Brake System - Exploded View
Front Disc Brake System - Exploded View
-

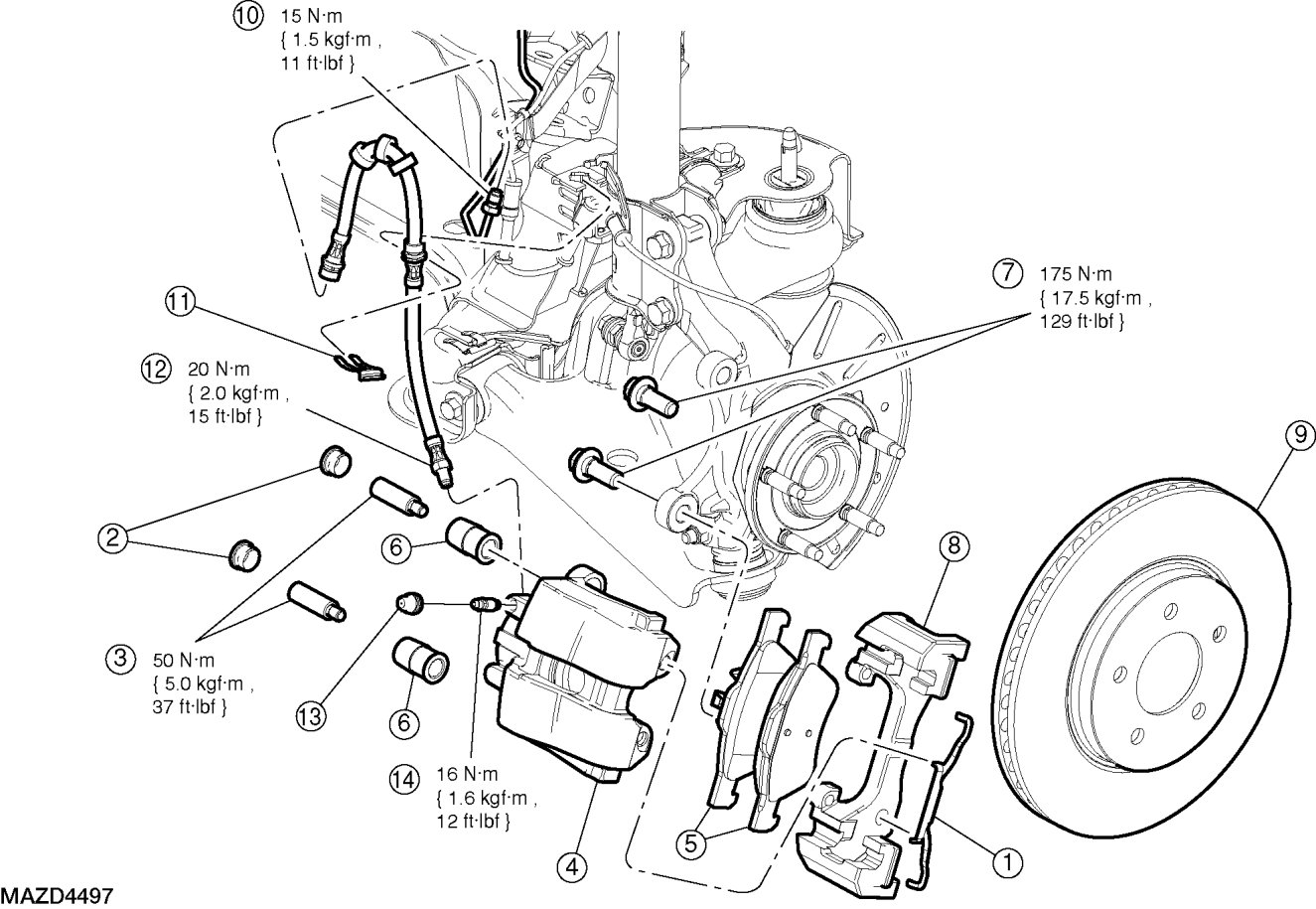

FRONT DISC BRAKE SYSTEM - EXPLODED VIEW
1.
For additional information, see the procedures.
