Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Locations >> Wiper And Washer System-Exploded View, Rear

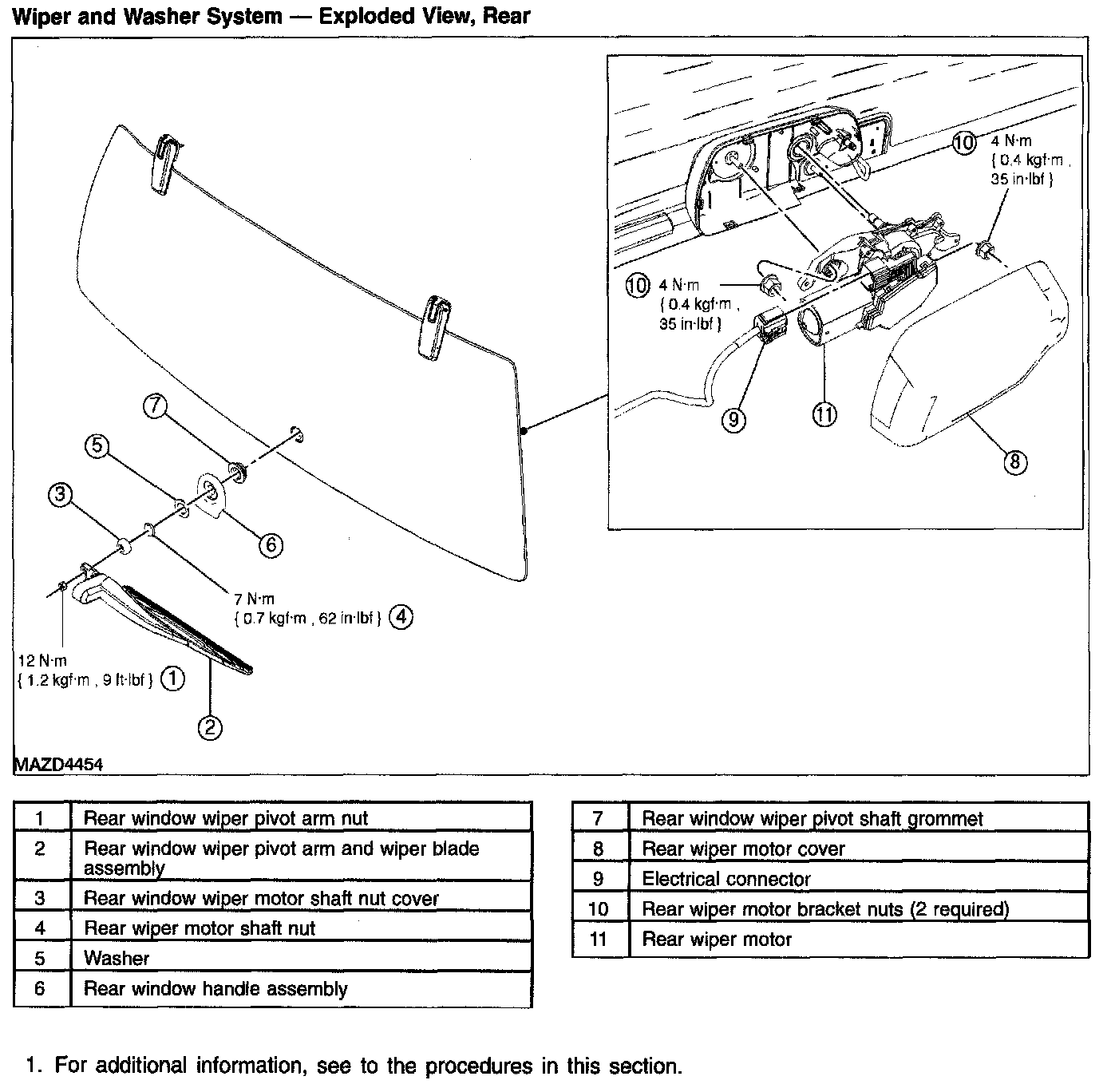

Wiper And Washer System-Exploded View, Rear

Wiper And Washer System-Exploded View, Rear:
