Home >> Mazda >> 2008 >> Tribute 2WD L4-2.3L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Testing and Inspection >> Component Test - Window Control Switch - Driver Side

Component Test - Window Control Switch - Driver Side

COMPONENT TEST - WINDOW CONTROL SWITCH - DRIVER SIDE

1. Remove the window control switch.

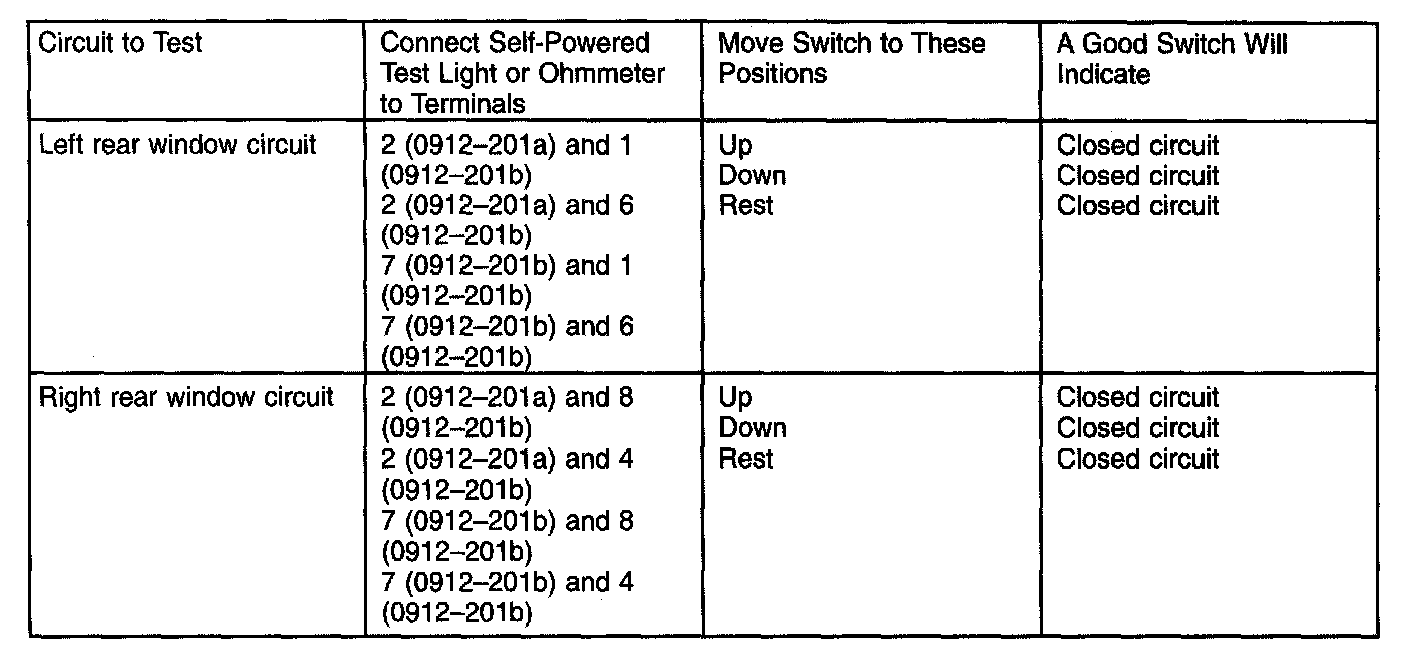

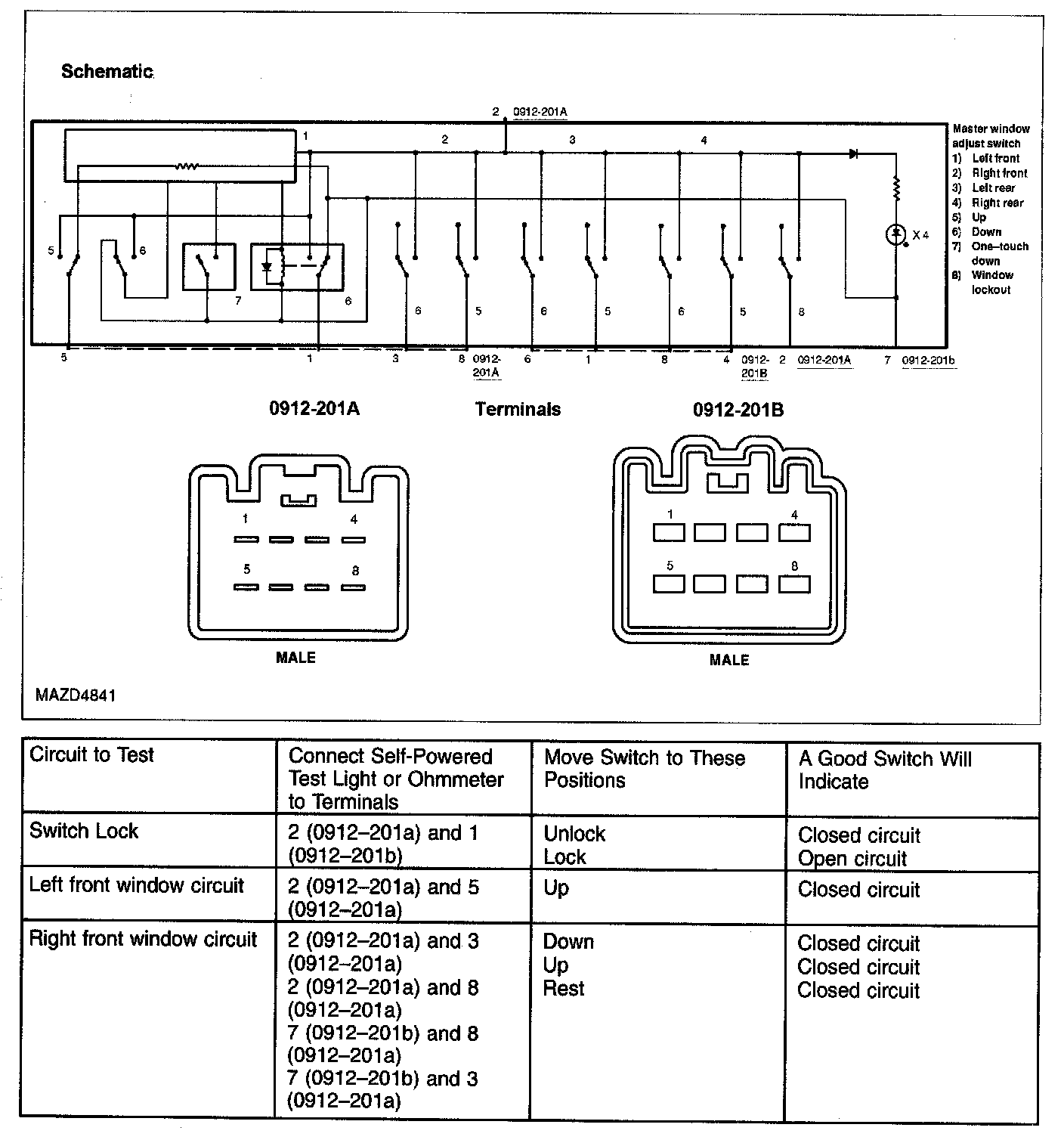

2. Inspect for continuity between the window control switch terminals using a self-powered test light or an ohmmeter.
