Fuel Filter: Diagrams

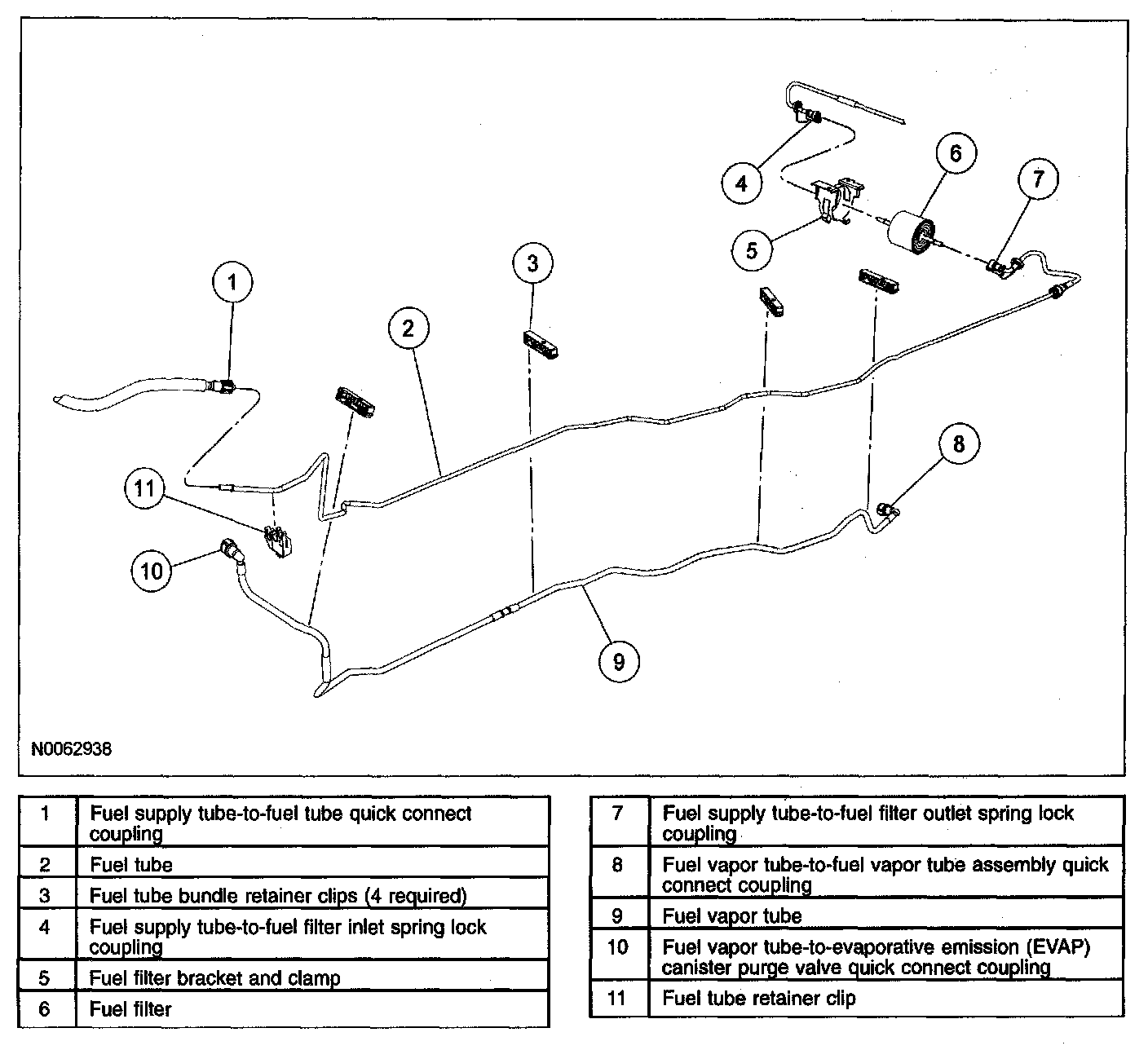

FUEL LINES AND FUEL FILTER - EXPLODED VIEW

Fuel Lines And Fuel Filter-Exploded View:






1. For additional information, see the procedures.
