Brake Master Cylinder

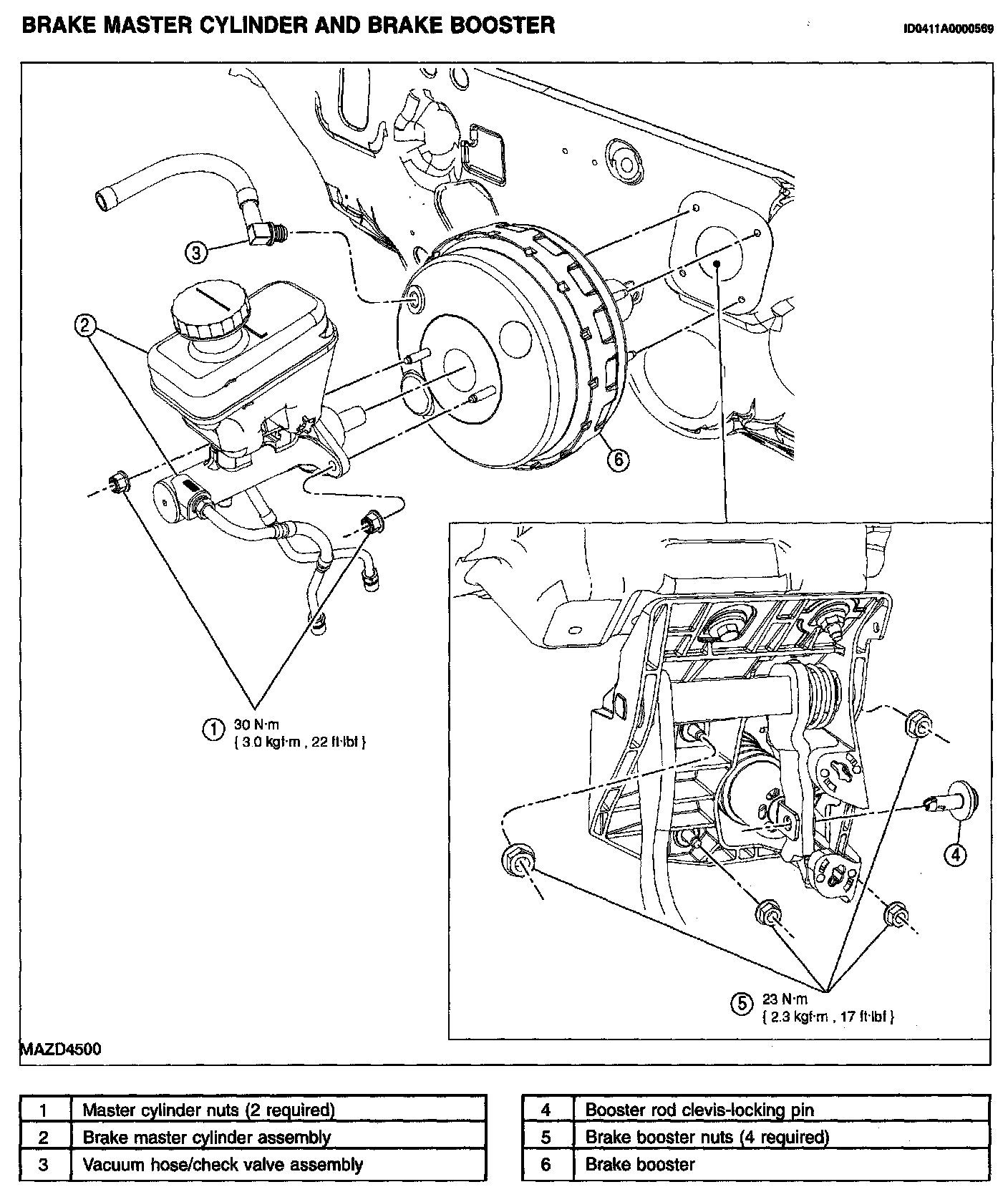

BRAKE MASTER CYLINDER
AND BRAKE BOOSTER - EXPLODED VIEW
Brake Master Cylinder and Brake Booster:
