Ignition System: Locations



-

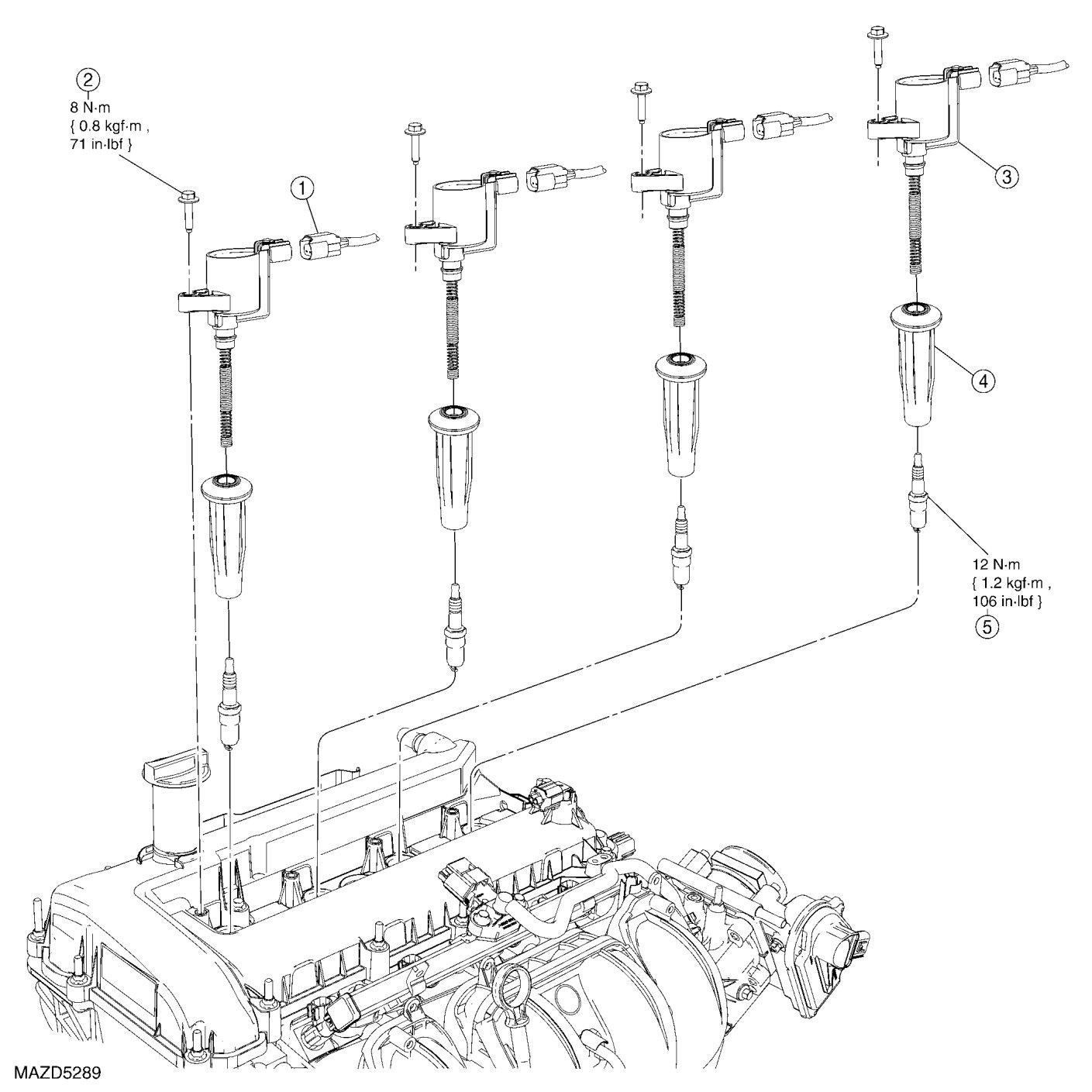

ENGINE IGNITION COMPONENTS - EXPLODED VIEW

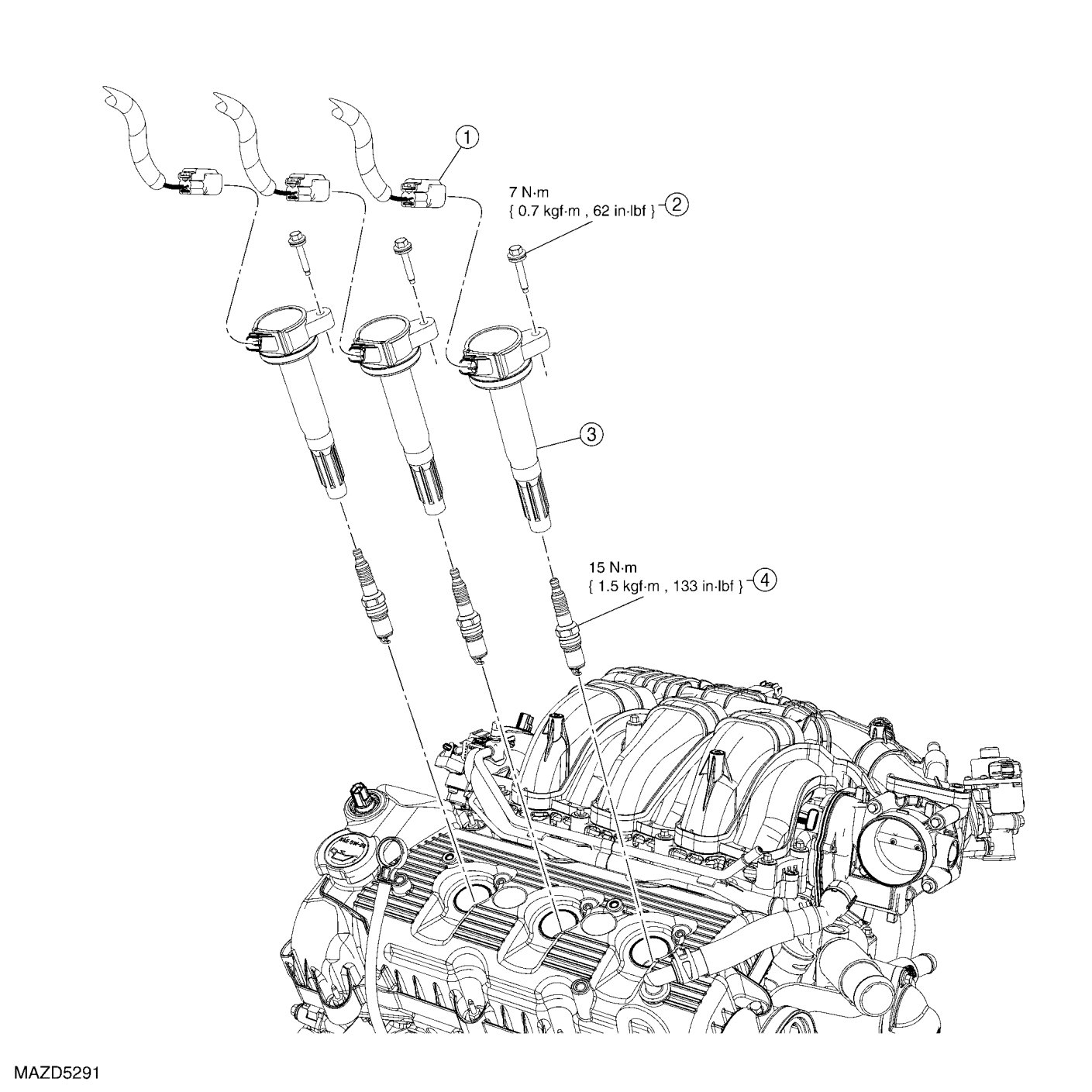

Engine Ignition - RH

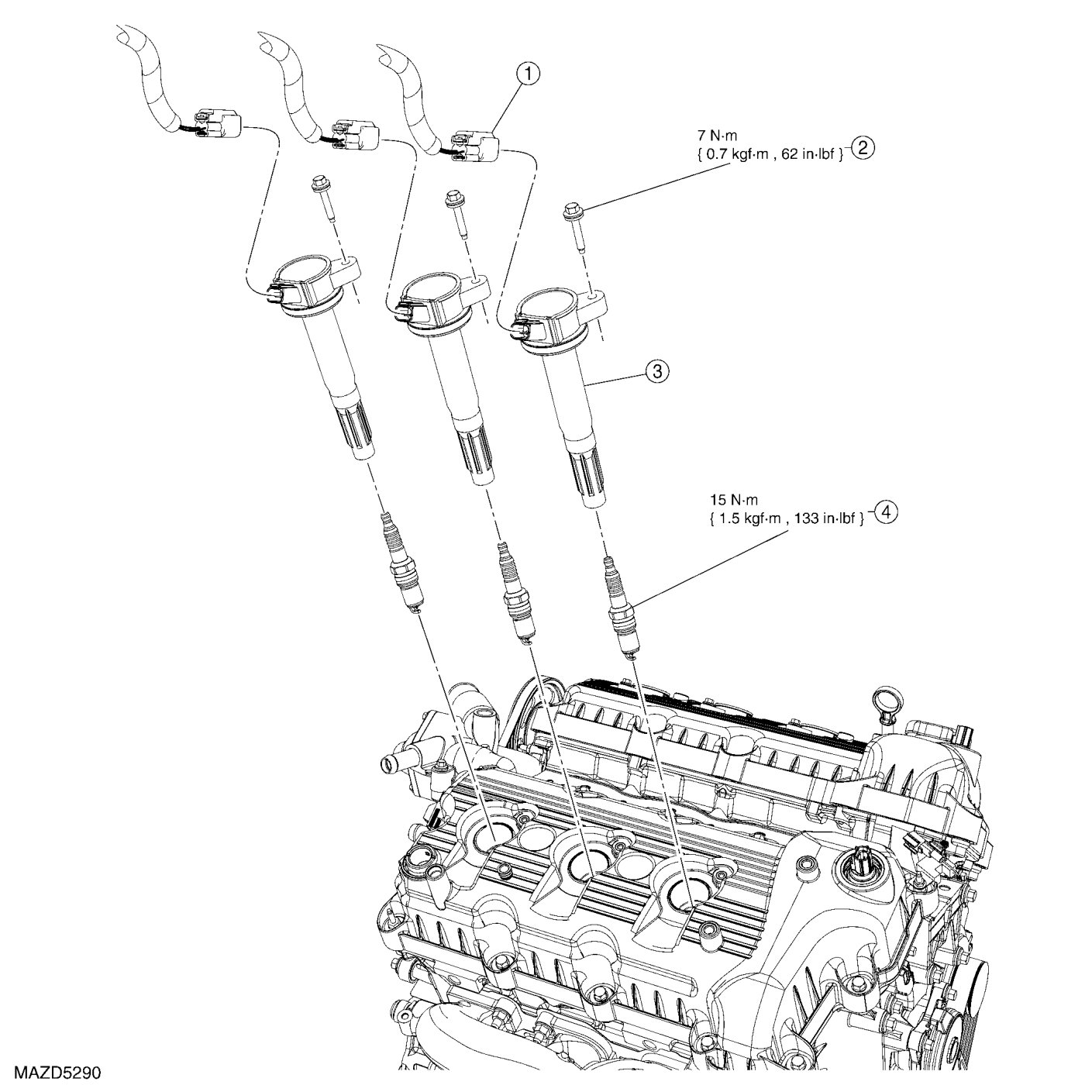

Engine Ignition - LH










1. For additional information, see the procedures.
