Clutch Switch: Testing and Inspection

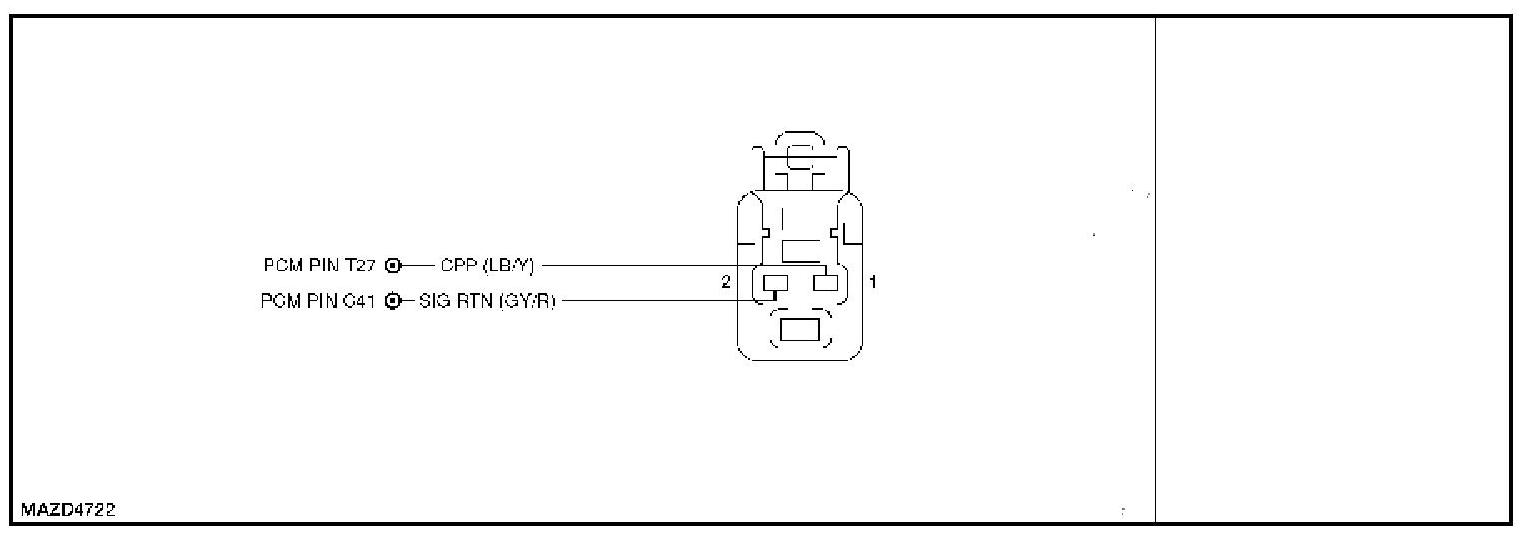

CLUTCH PEDAL POSITION (CPP) SWITCH MALFUNCTION

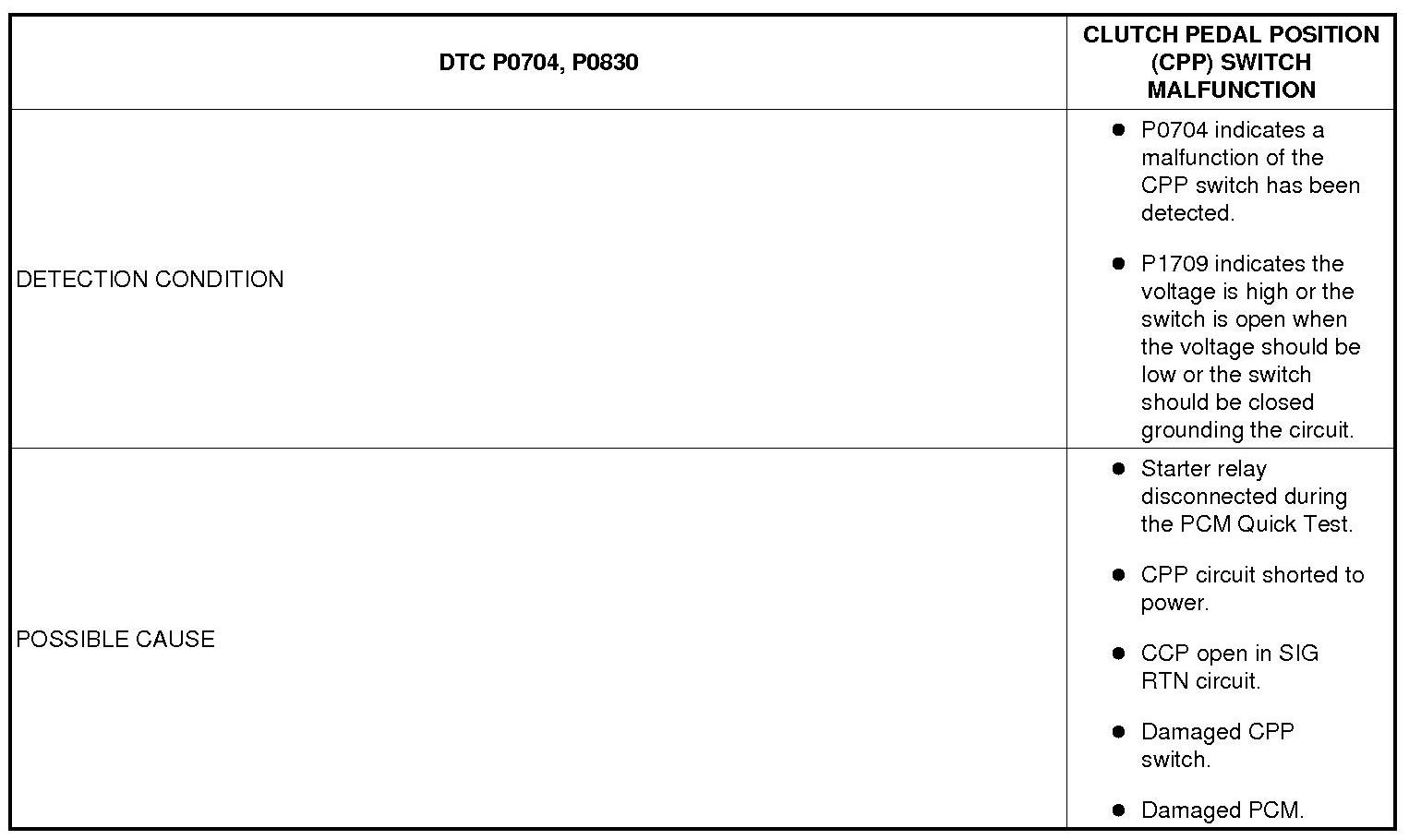

Detection Condition/Possible Cause (Part 1):

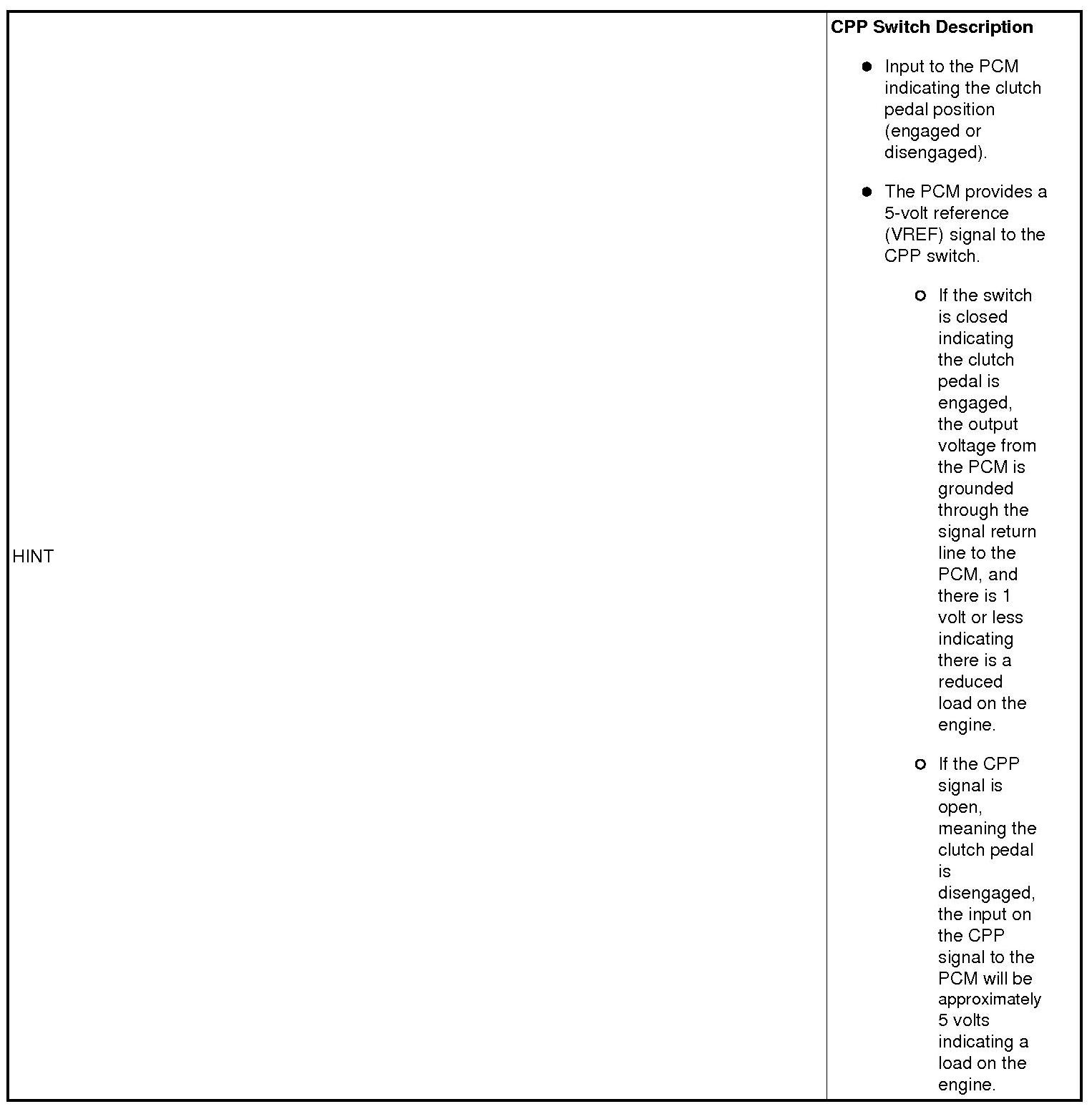

Detection Condition/Possible Cause (Part 2):





Detection Condition/Possible Cause (Part 3):

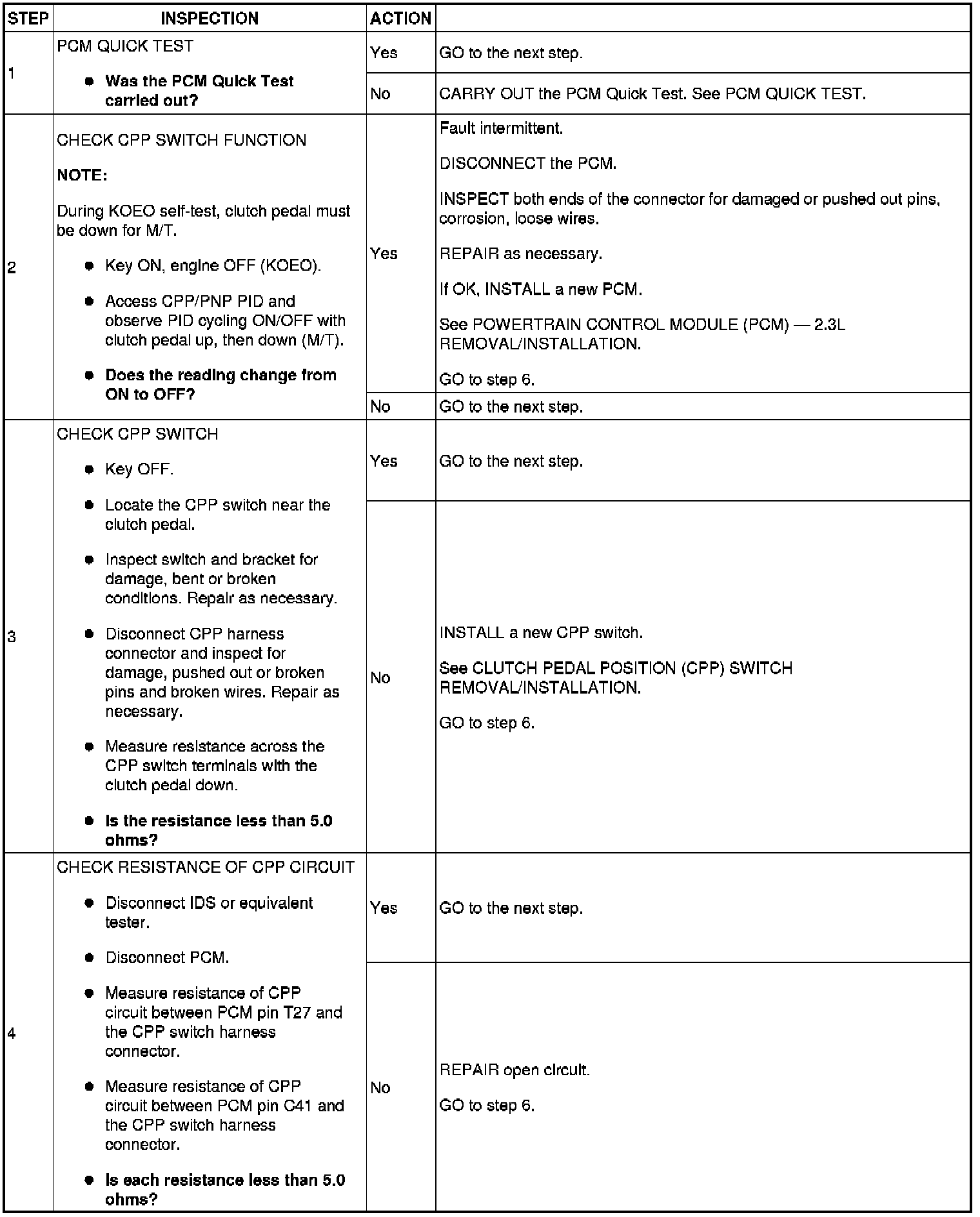

Step 1-Step 4:





Step 5-Step 6:
