Transmission Temperature Sensor/Switch, A/T

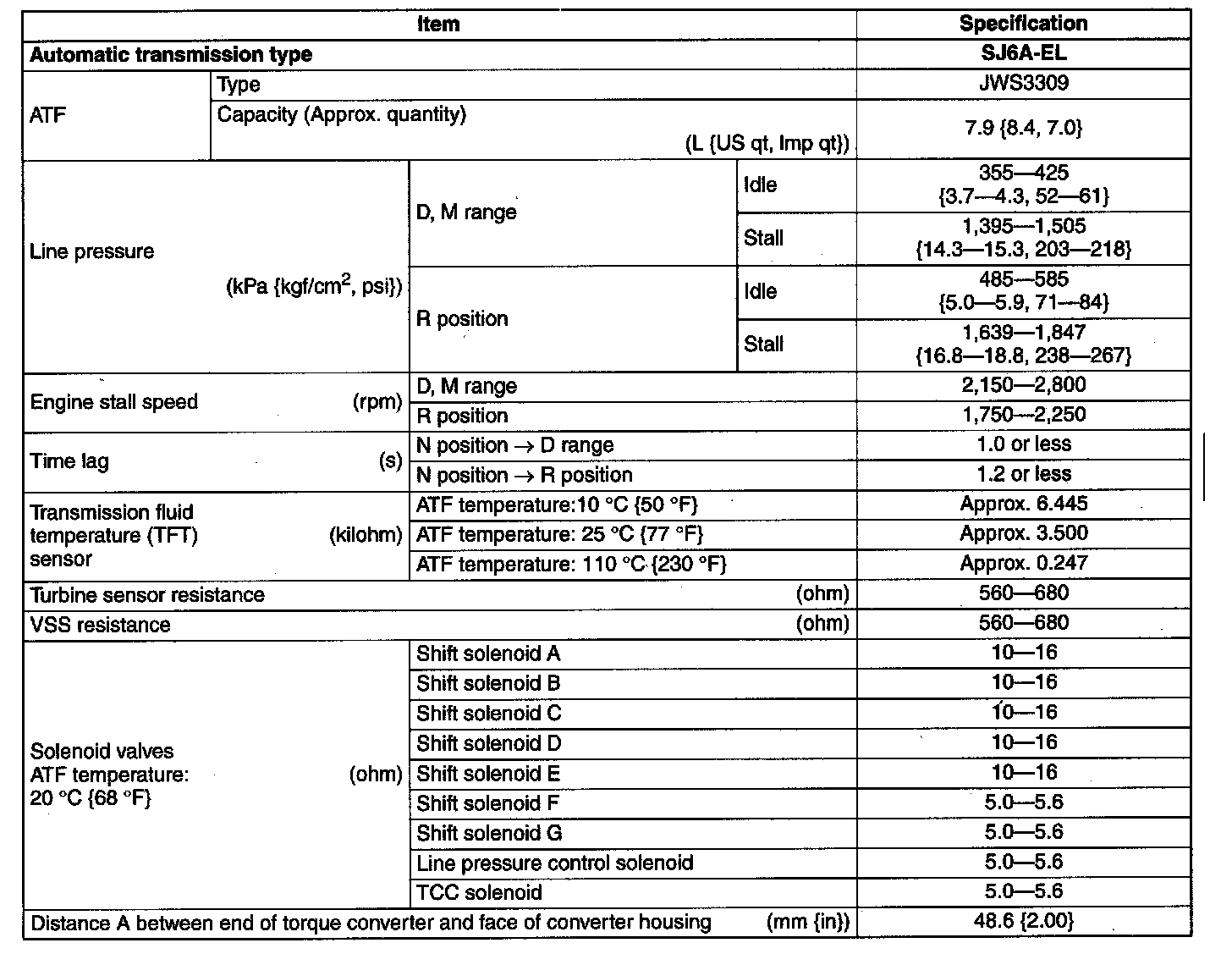

Transmission/Transaxle Technical Data

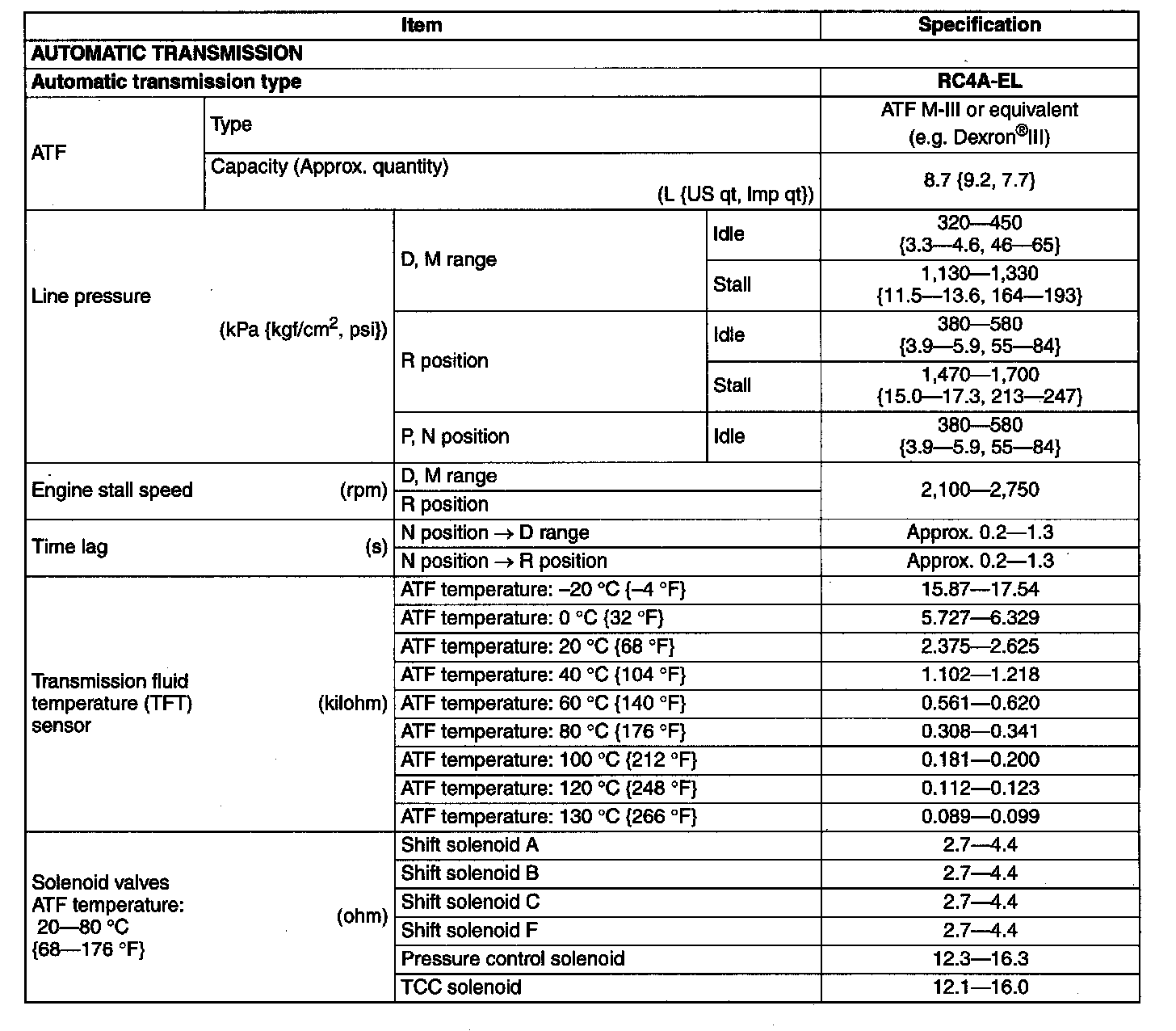

TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 2):
TRANSMISSION/TRANSAXLE TECHNICAL DATA (Part 3):
