Home >> Mazda >> 2008 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations

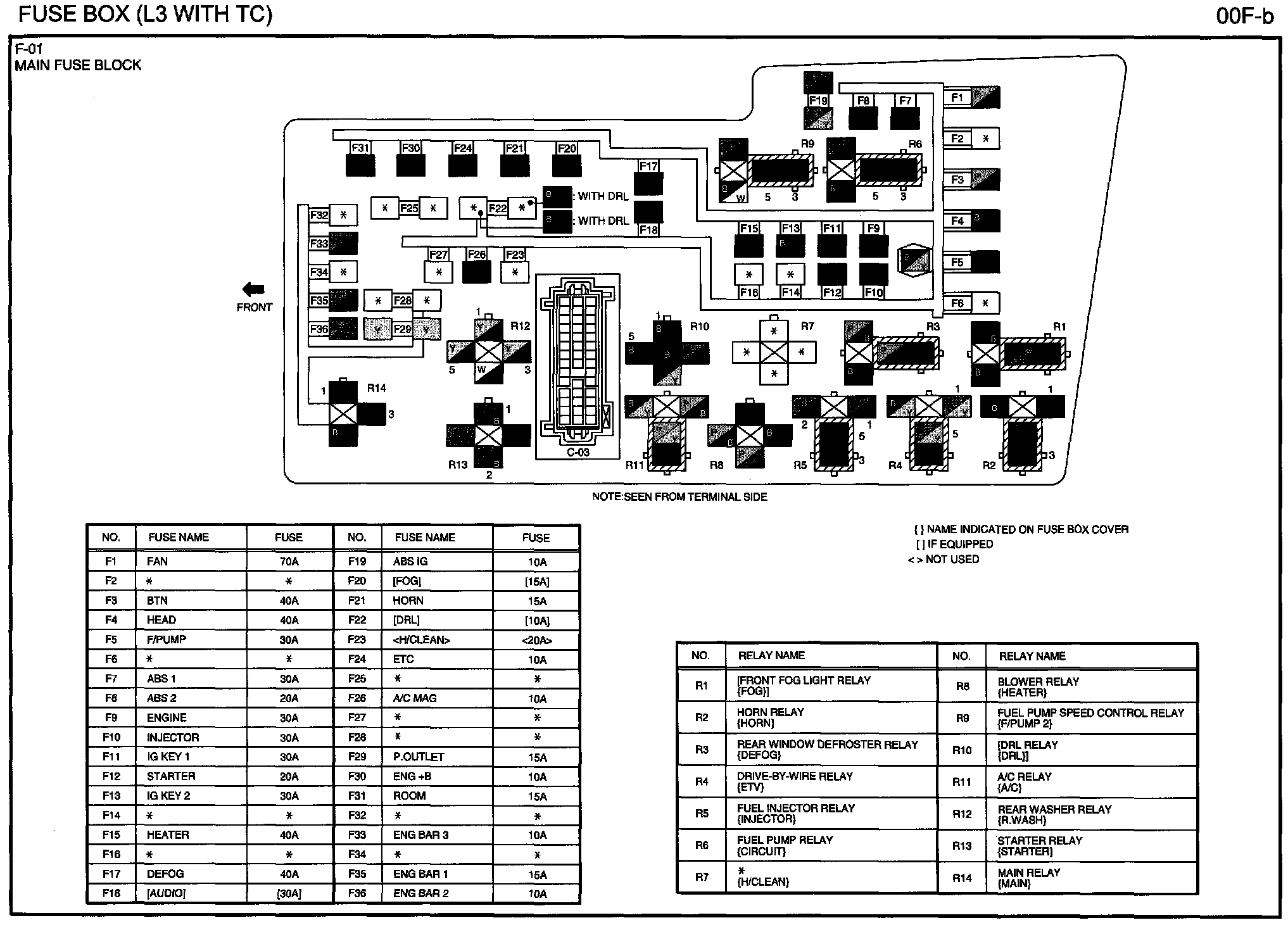

Diagram 00F-b:
