Home >> Mazda >> 2008 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> System Schemetic

System Schemetic

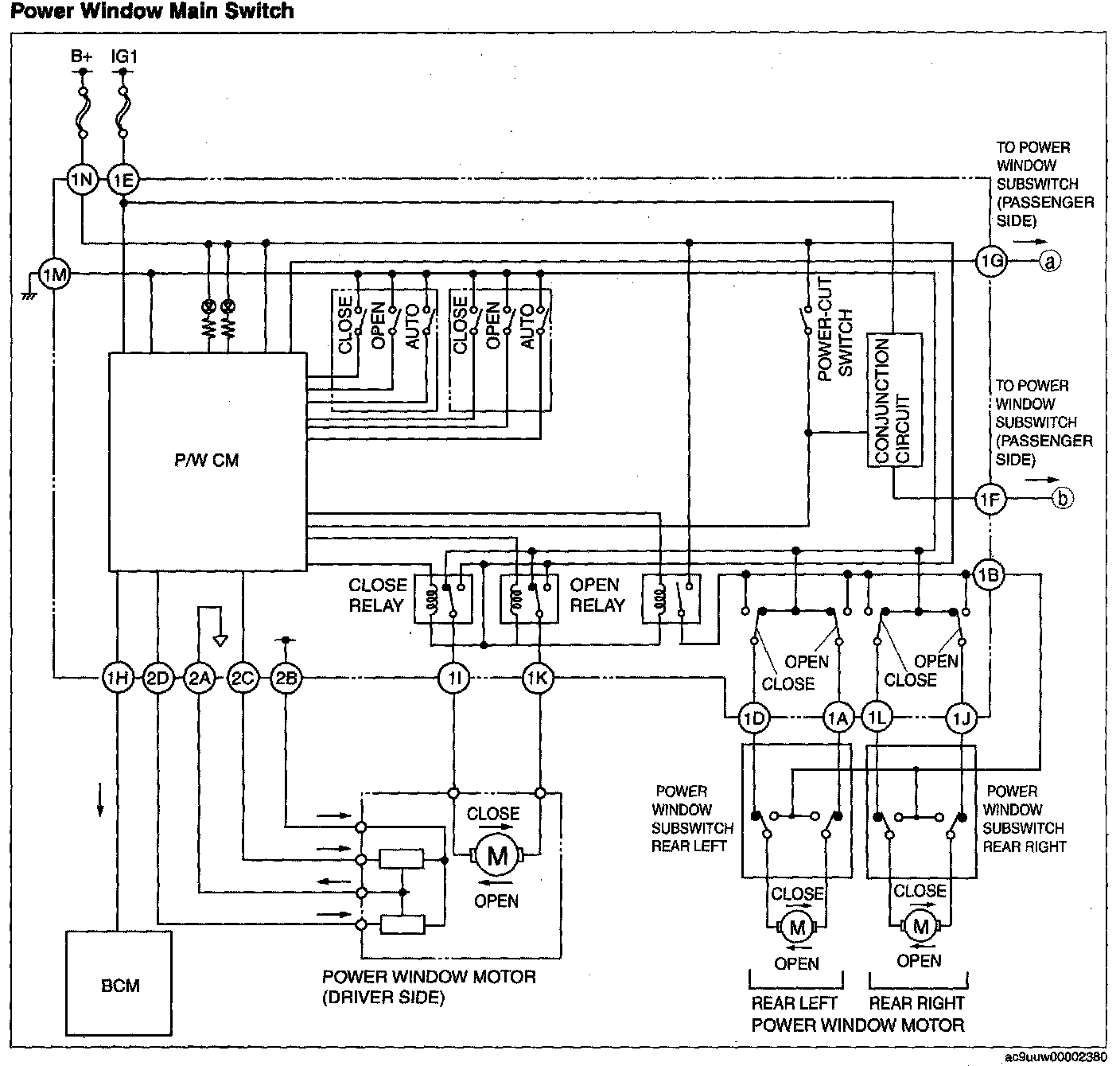

Power Window System Wiring Diagram [Power Window Systems (Auto-Open/Close Function)]:
