Home >> Mazda >> 2008 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Maintenance >> Drive Belt >> Locations

Drive Belt: Locations

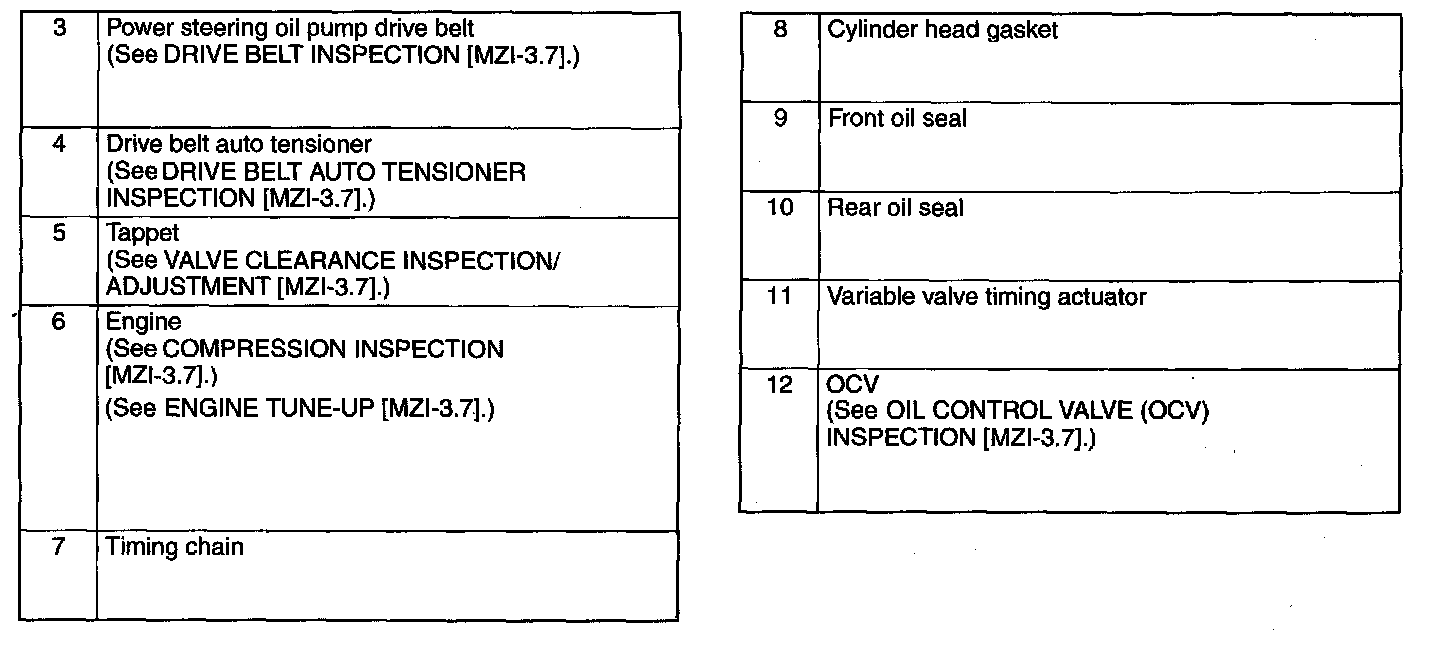

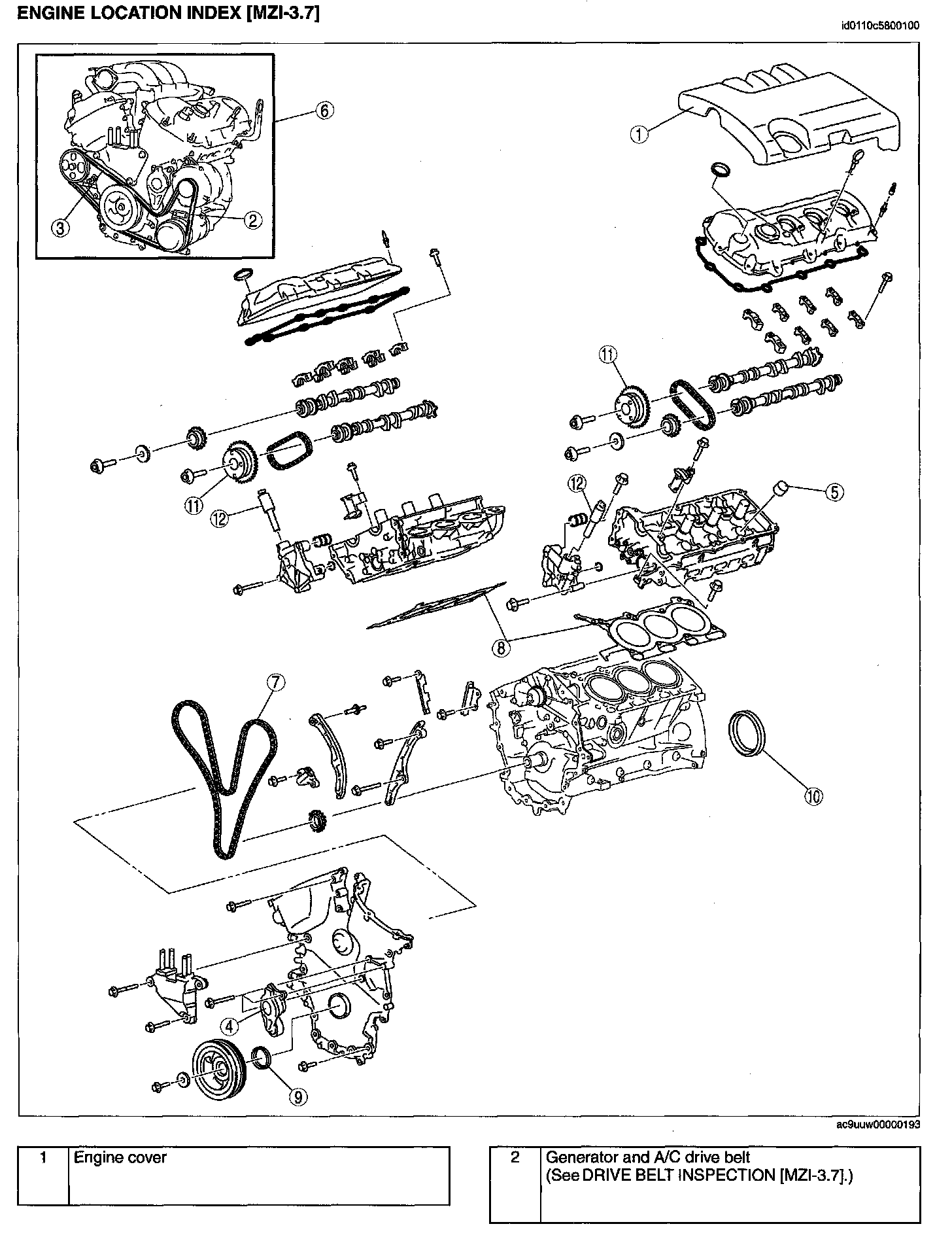

ENGINE LOCATION INDEX [MZI-3.7]
