Home >> Mazda >> 2008 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> F-01 (Main Fuse Block)

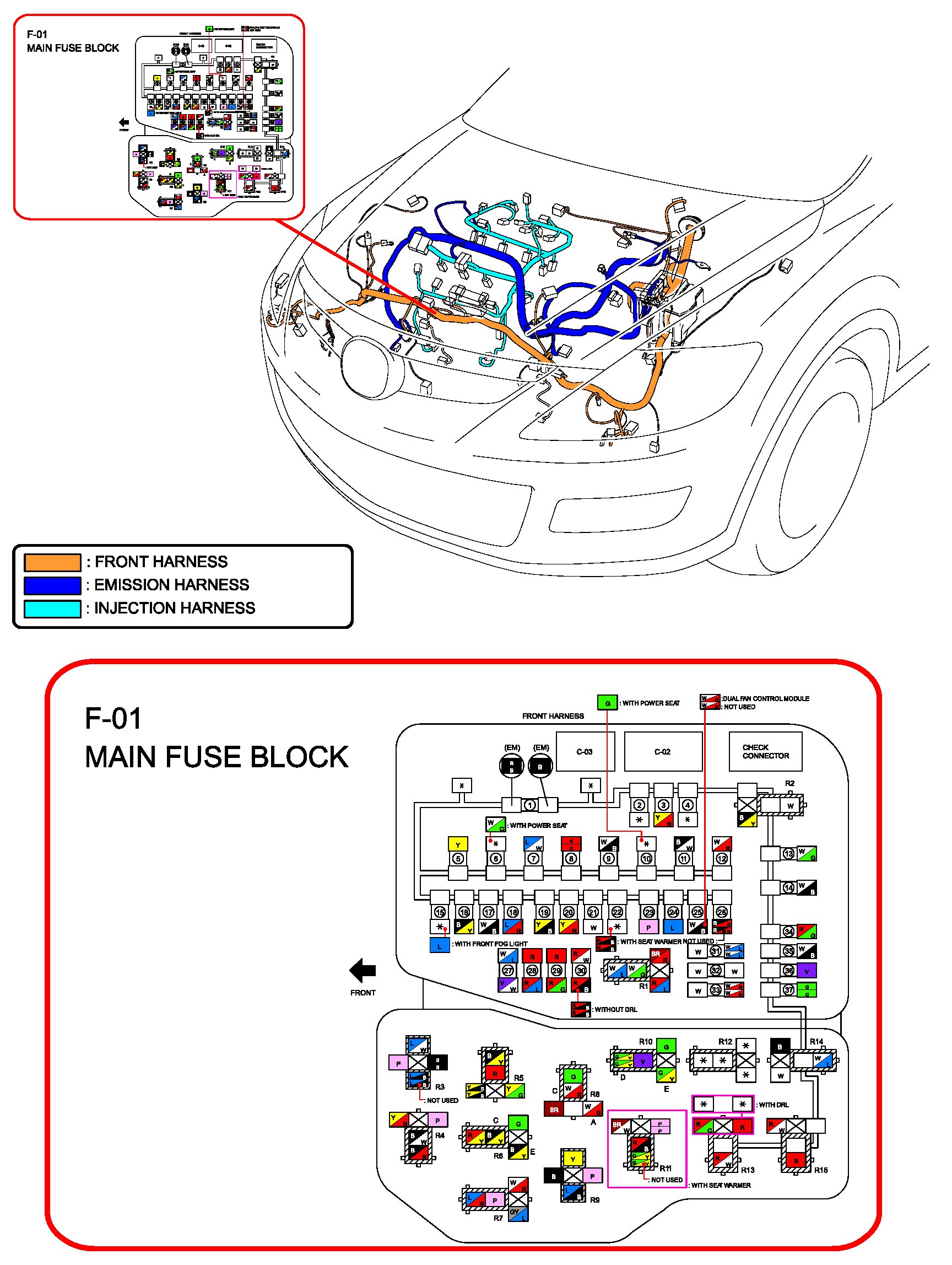

F-01 (Main Fuse Block)

F-01 (Main Fuse Block):
