Manual Air Conditioner
Manual Air Conditioner

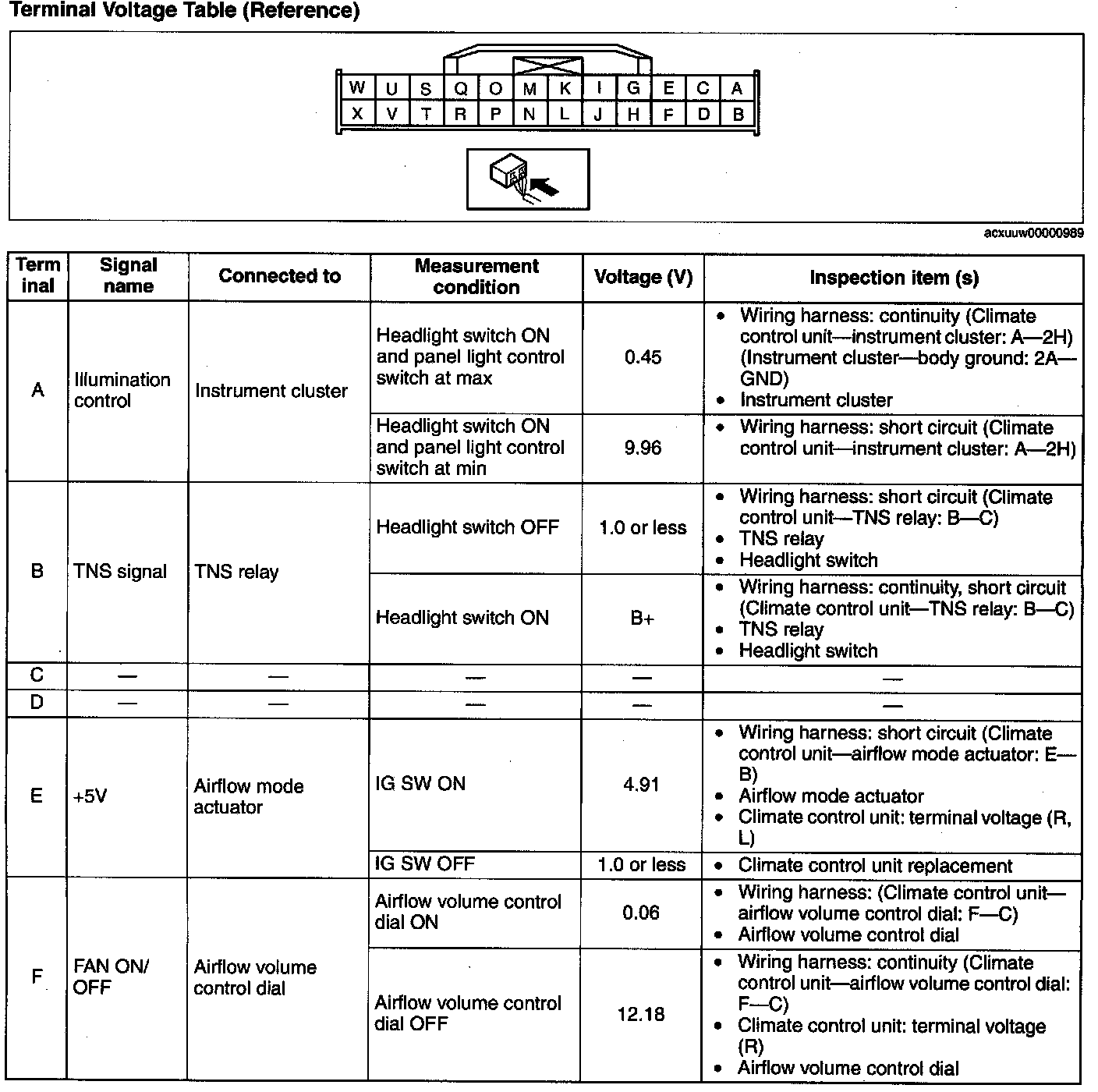

Terminal Voltage Table (Reference) (Part 1):

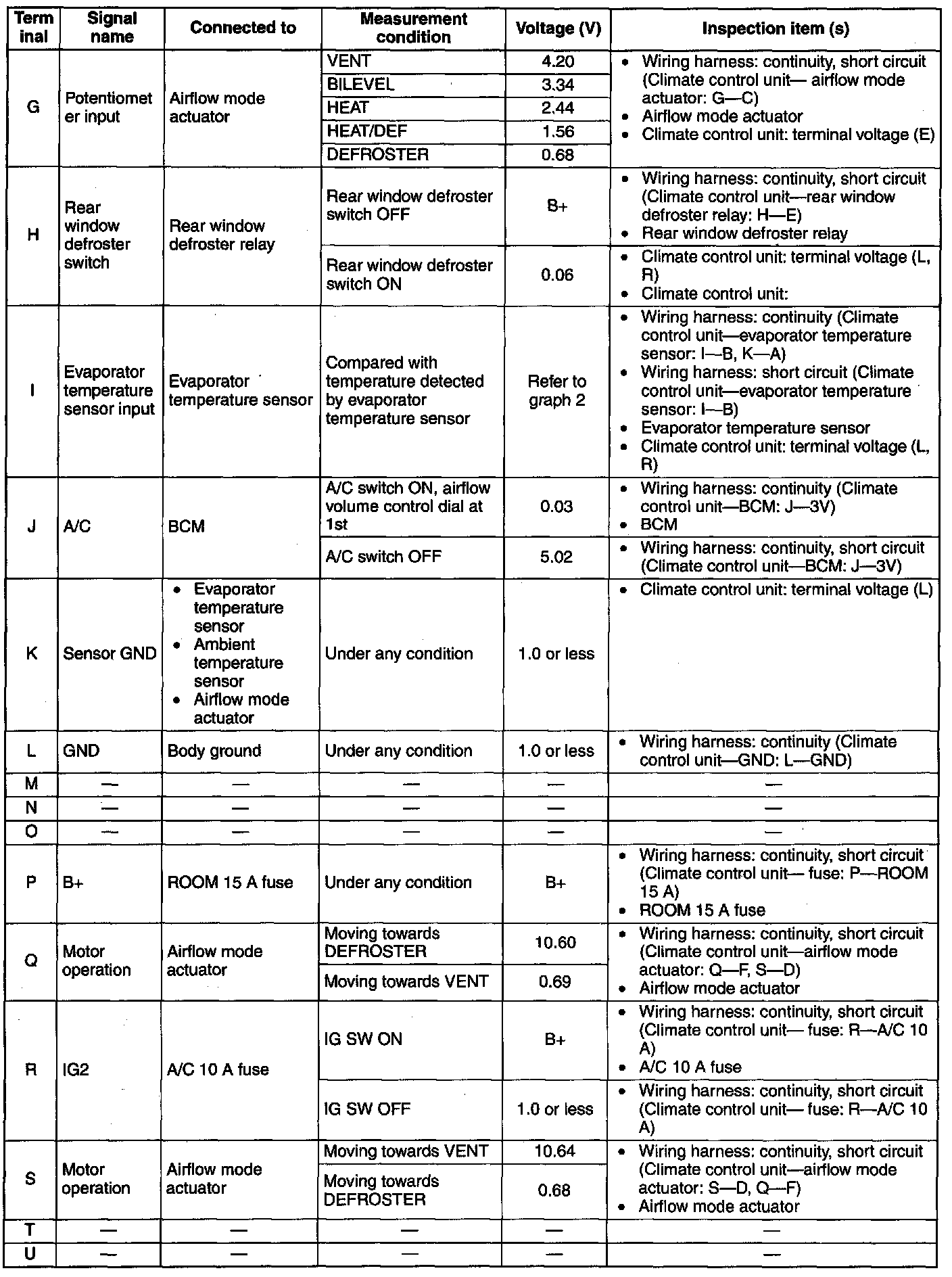

Terminal Voltage Table (Reference) (Part 2):

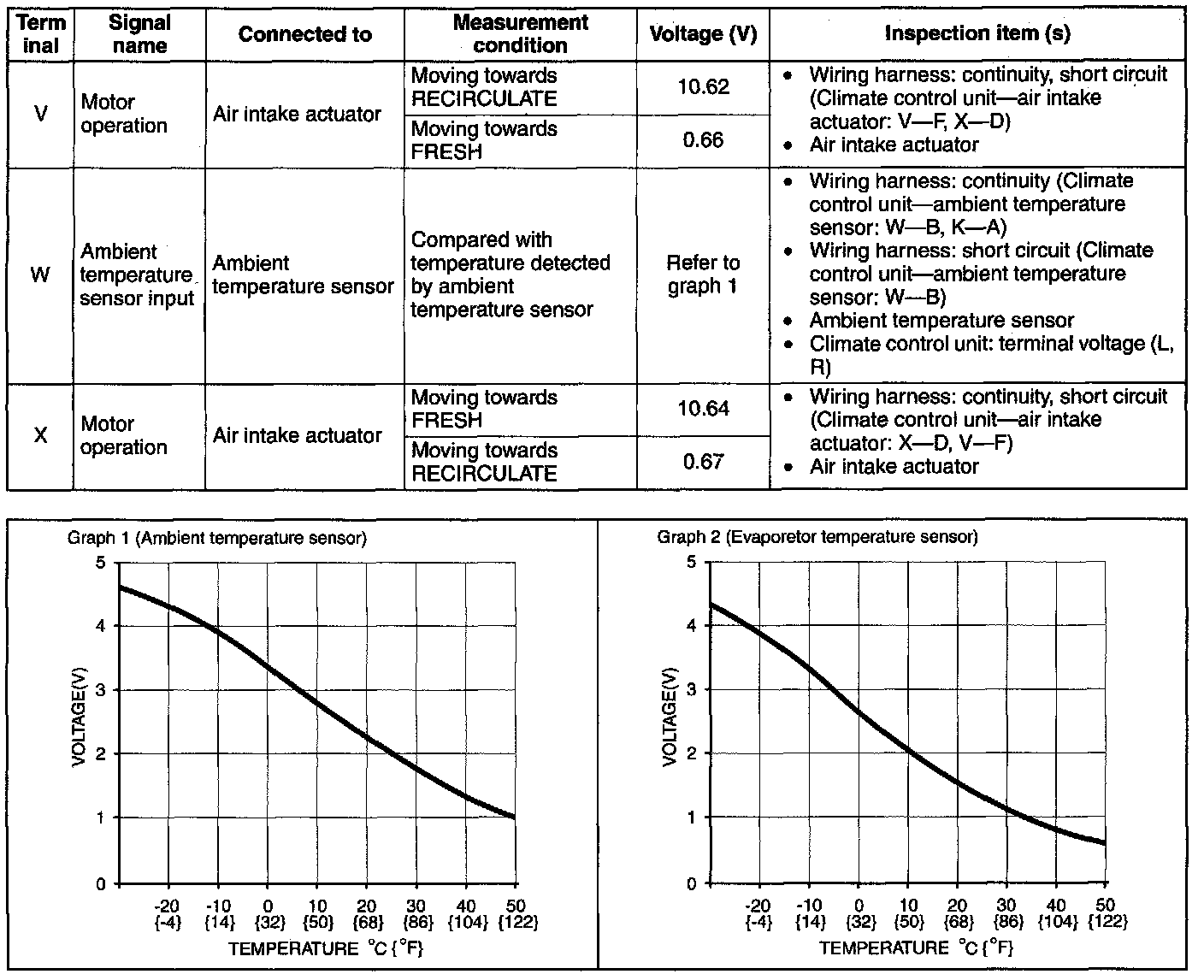

Terminal Voltage Table (Reference) (Part 3):
