Relay Box: Diagrams

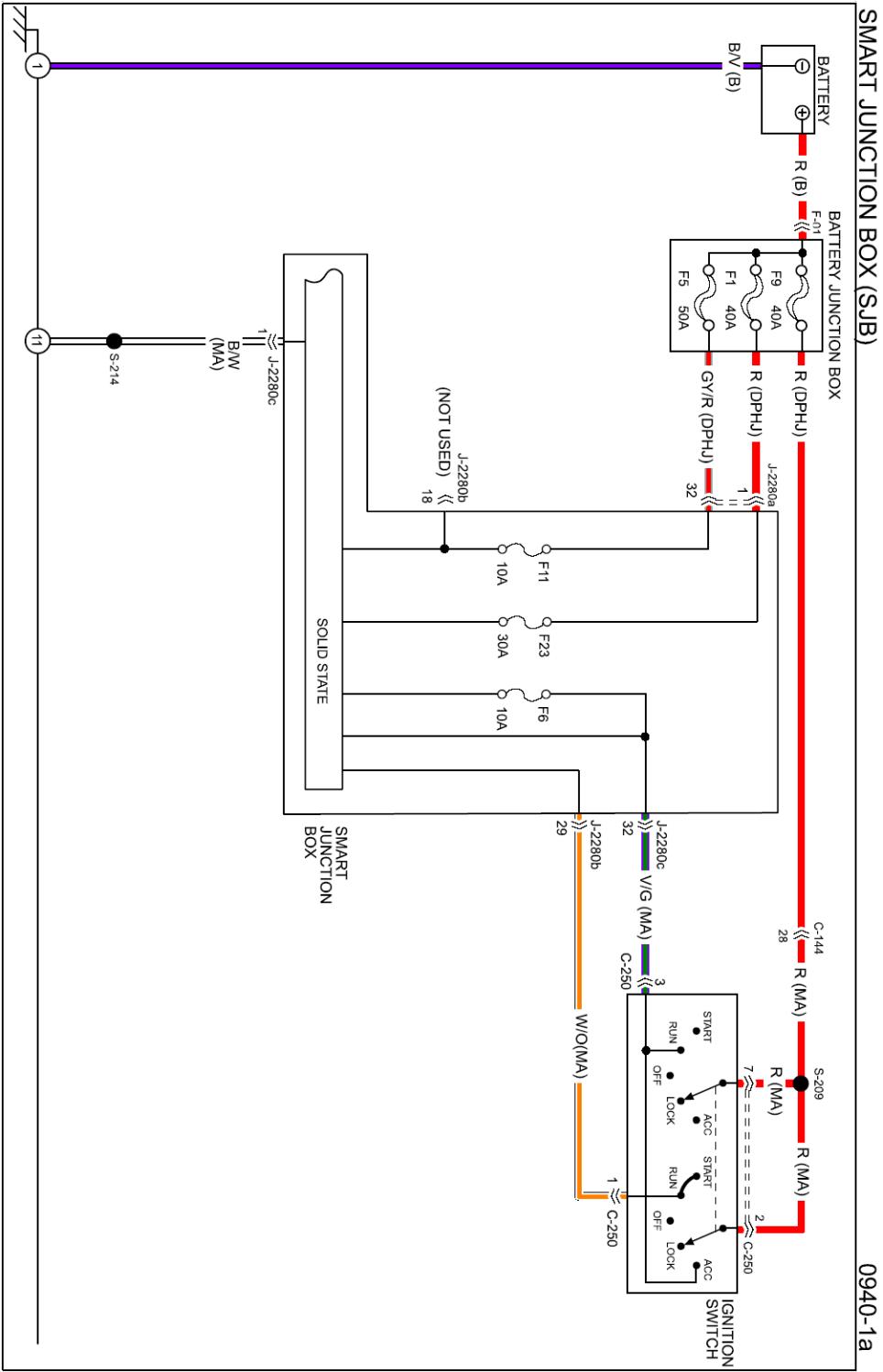

Diagram 0940-1a:

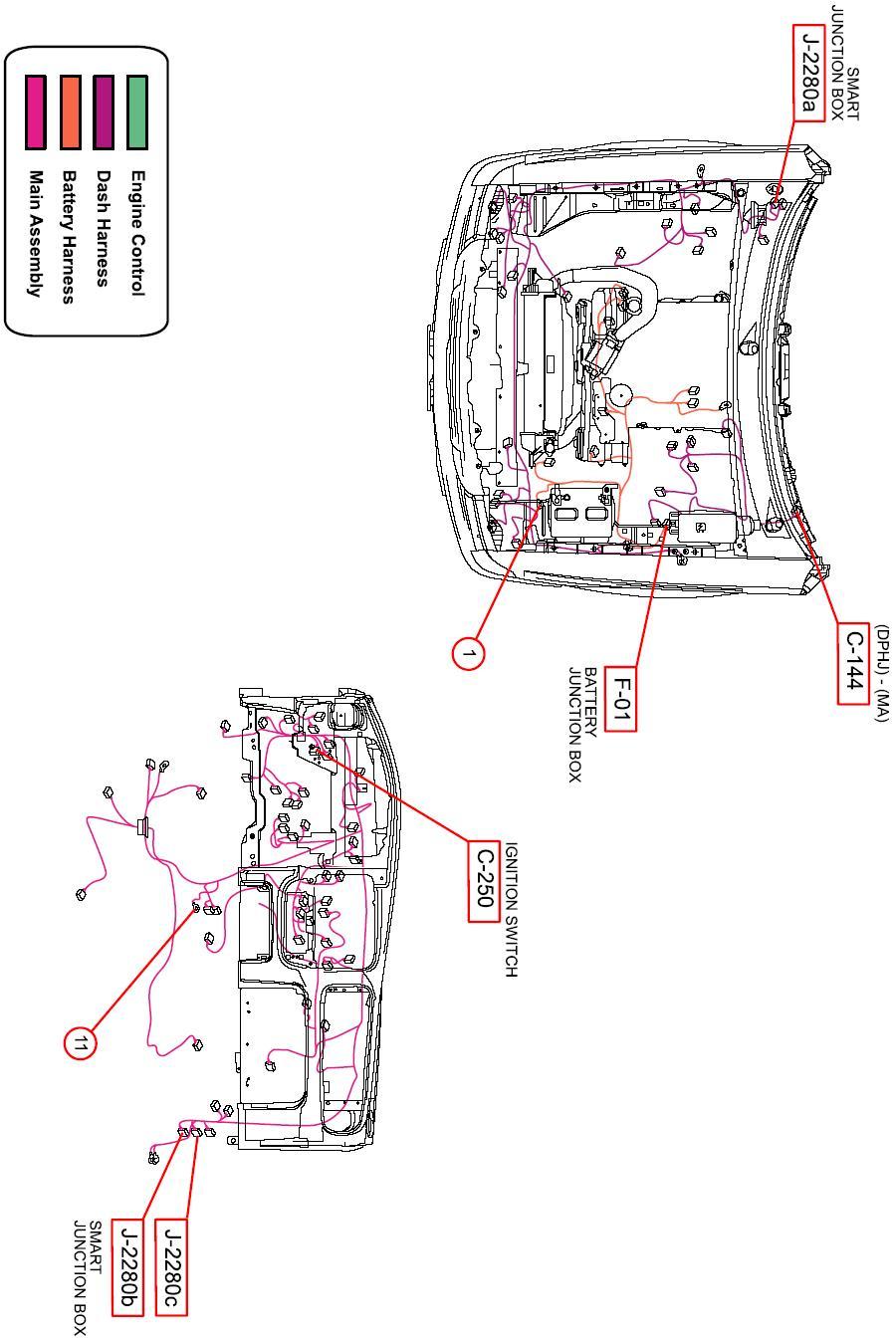

Routing View 0940-1a:

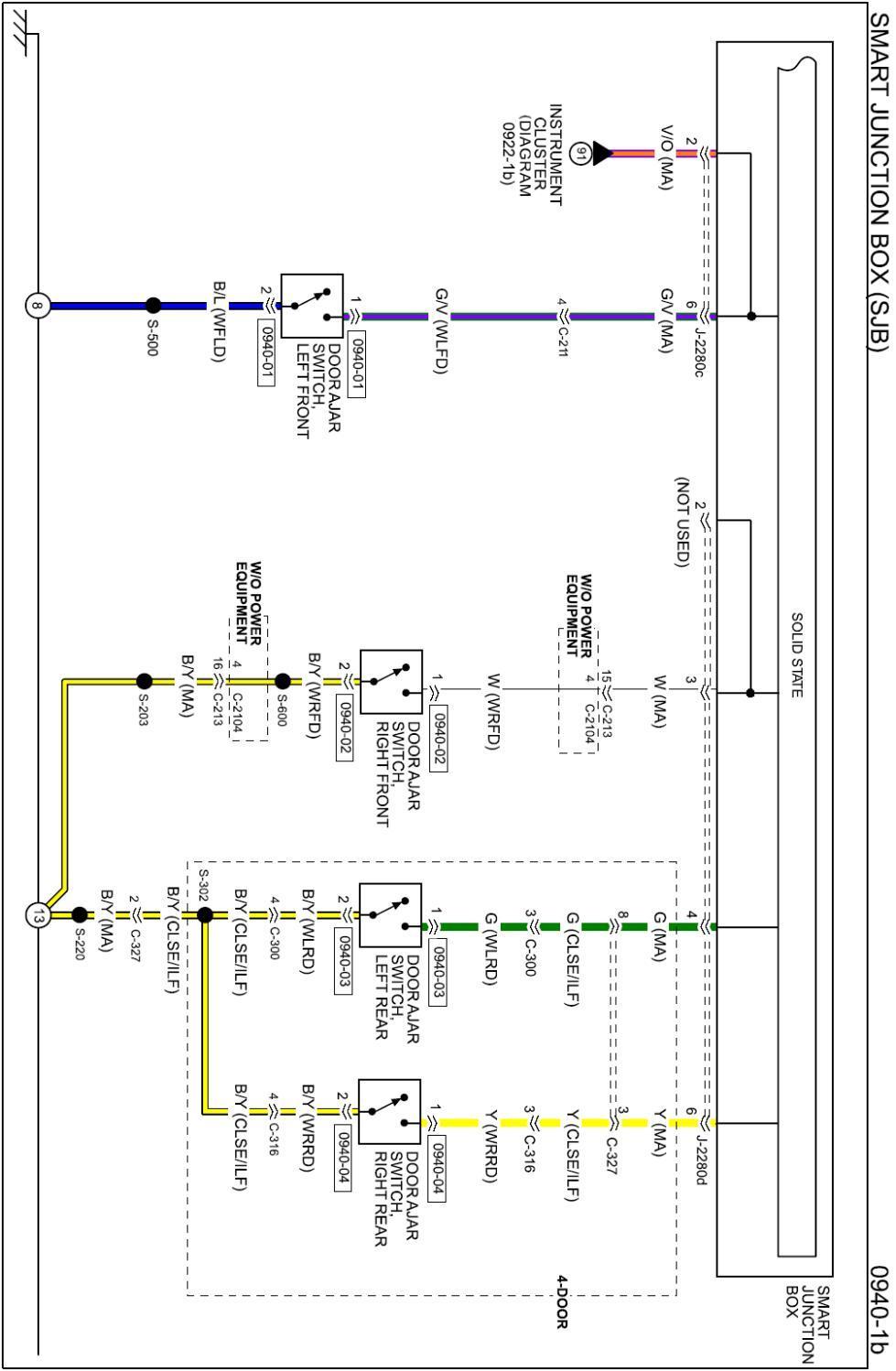

Diagram 0940-1b:

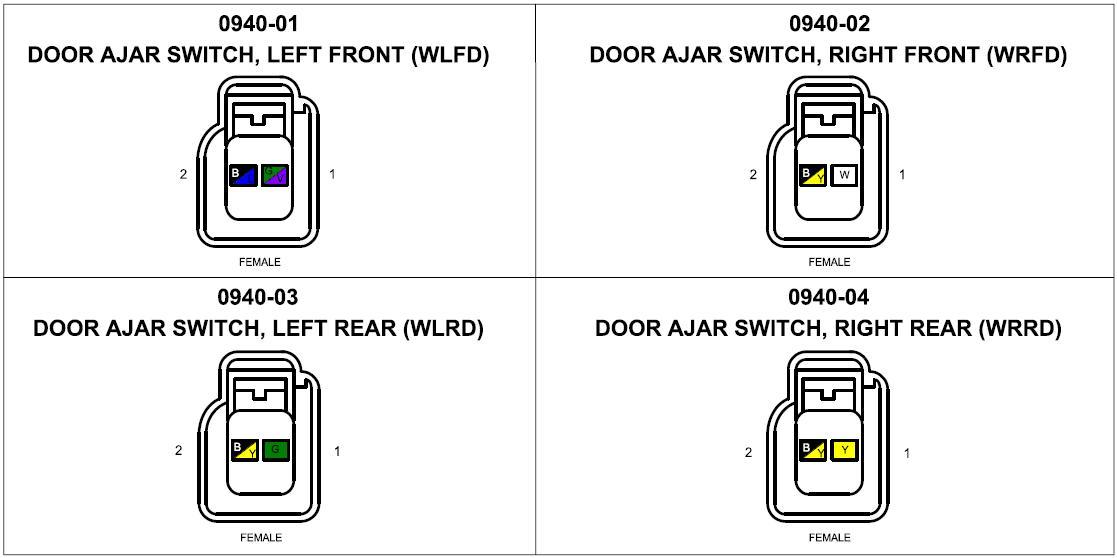

Connectors 0940-1b:
Routing View 0940-1b:
