Axle Structural View Rear (Standard)
AXLE STRUCTURAL VIEW REAR (STANDARD)

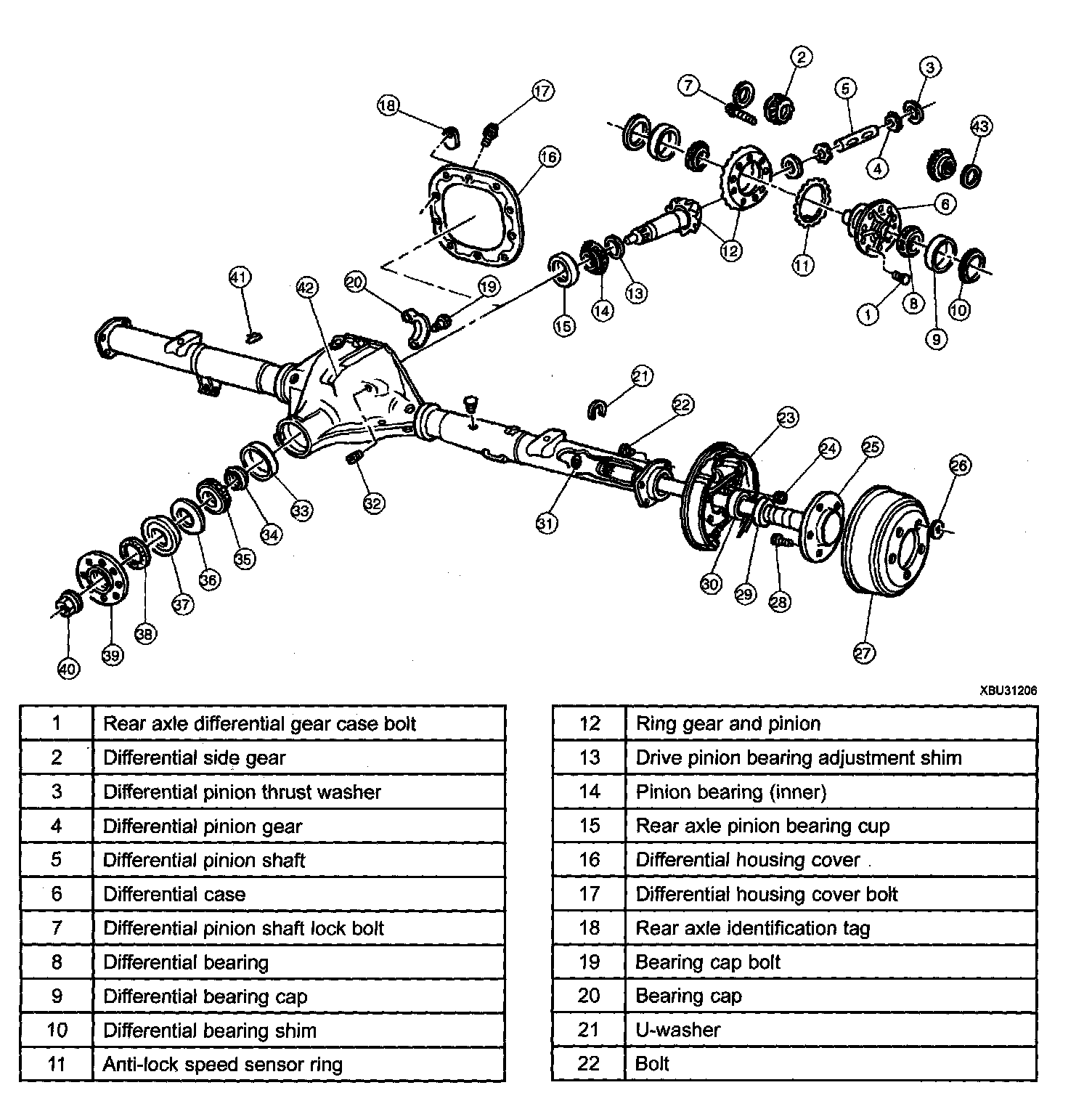

Axle Structural View Rear (Standard) (Part 1):

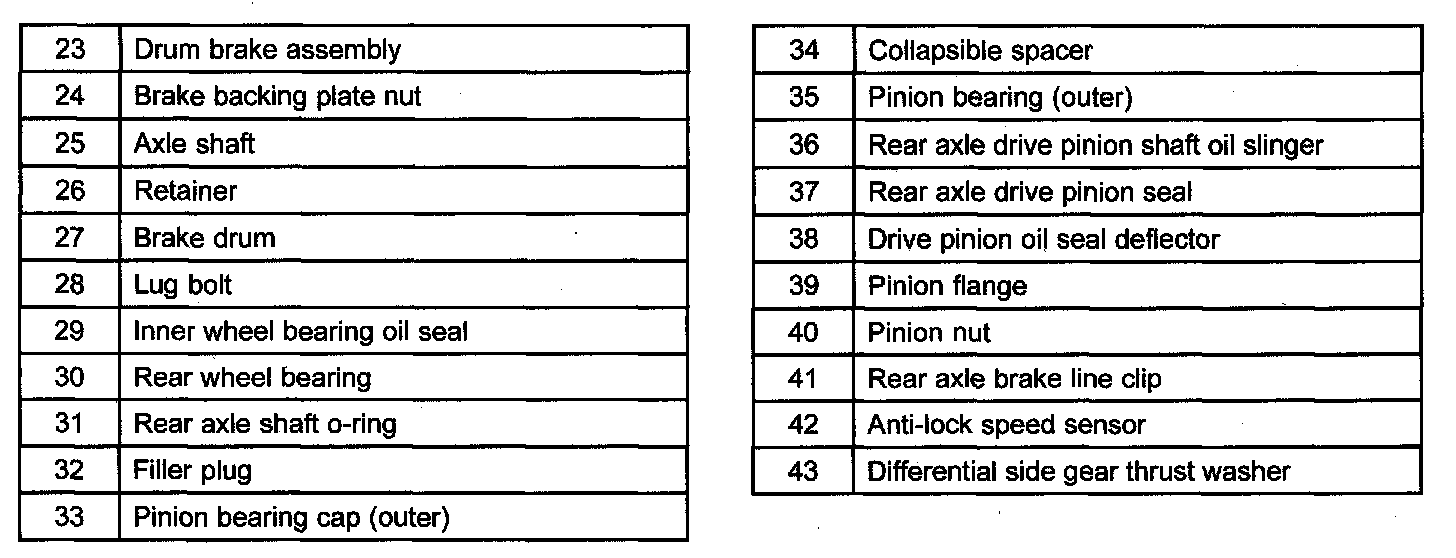

Axle Structural View Rear (Standard) (Part 2):
