Axle Structural View Rear (Limited Slip)
Axle Structural View Rear (Limited Slip)
AXLE STRUCTURAL VIEW REAR (LIMITED SLIP)

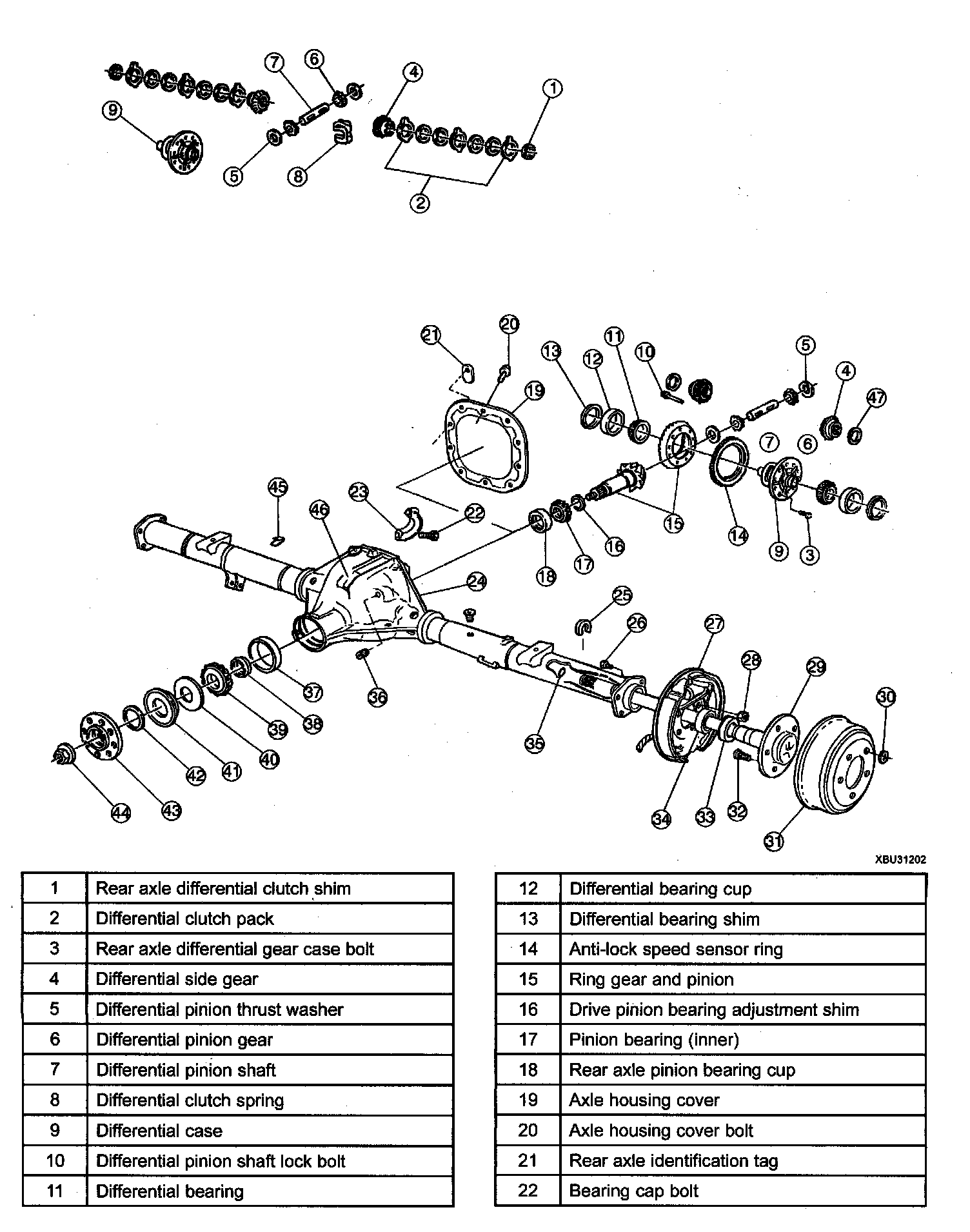

Axle Structural View Rear (Limited Slip) (Part 1):

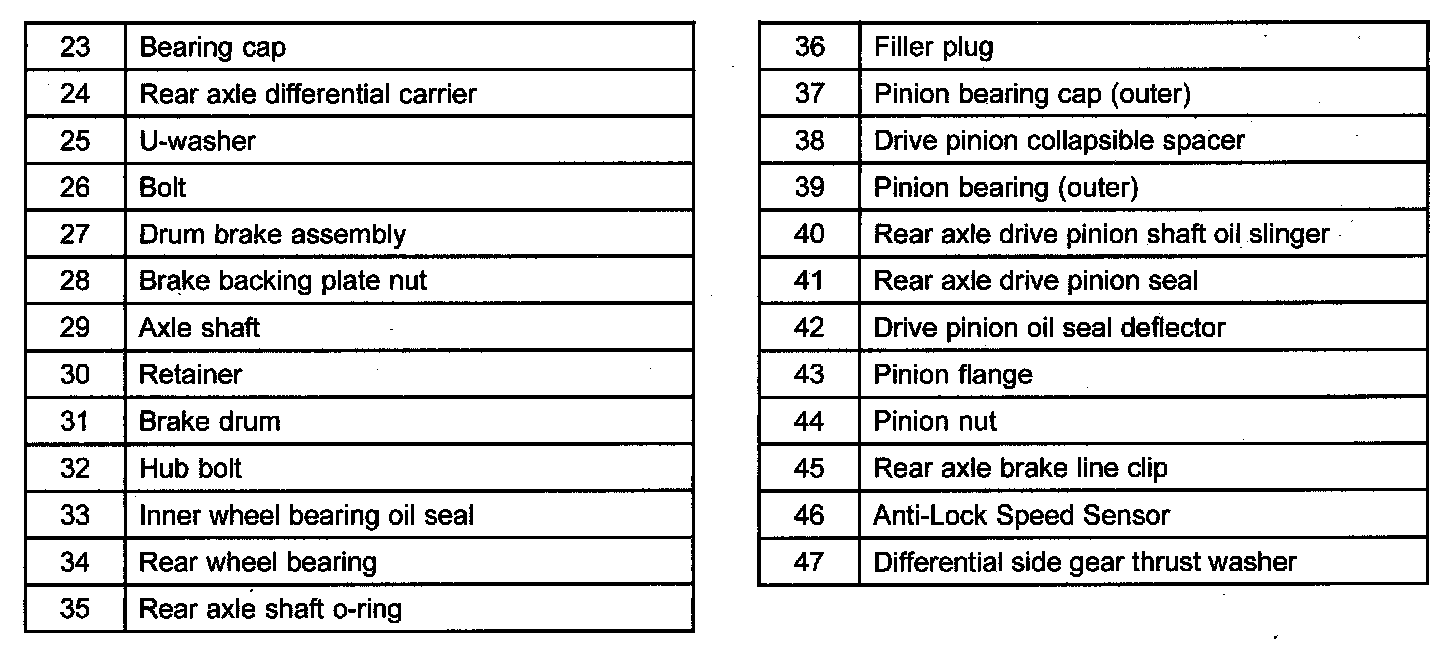

Axle Structural View Rear (Limited Slip) (Part 2):
