Power Locks: Diagrams

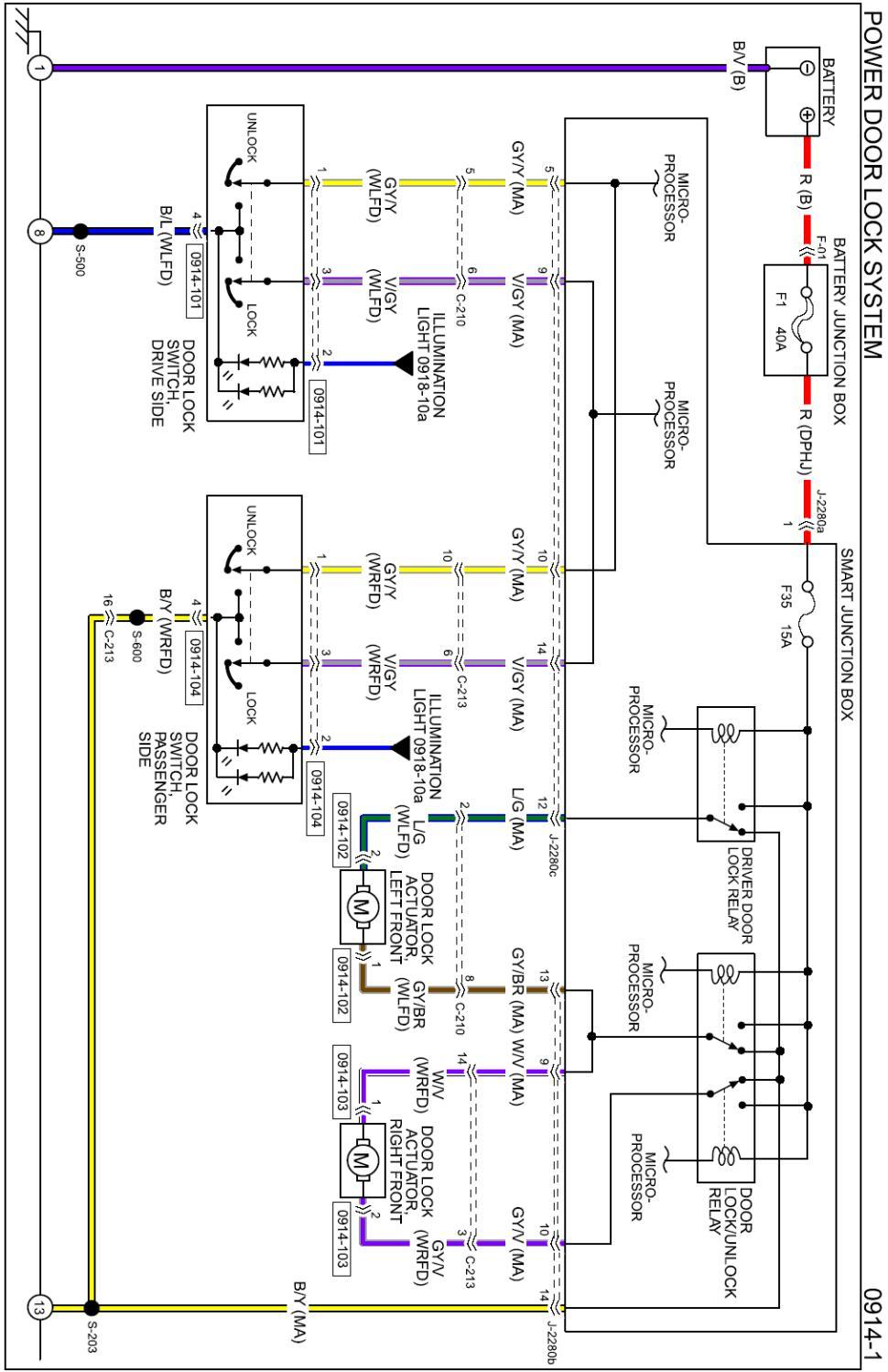

Diagram 0914-1:

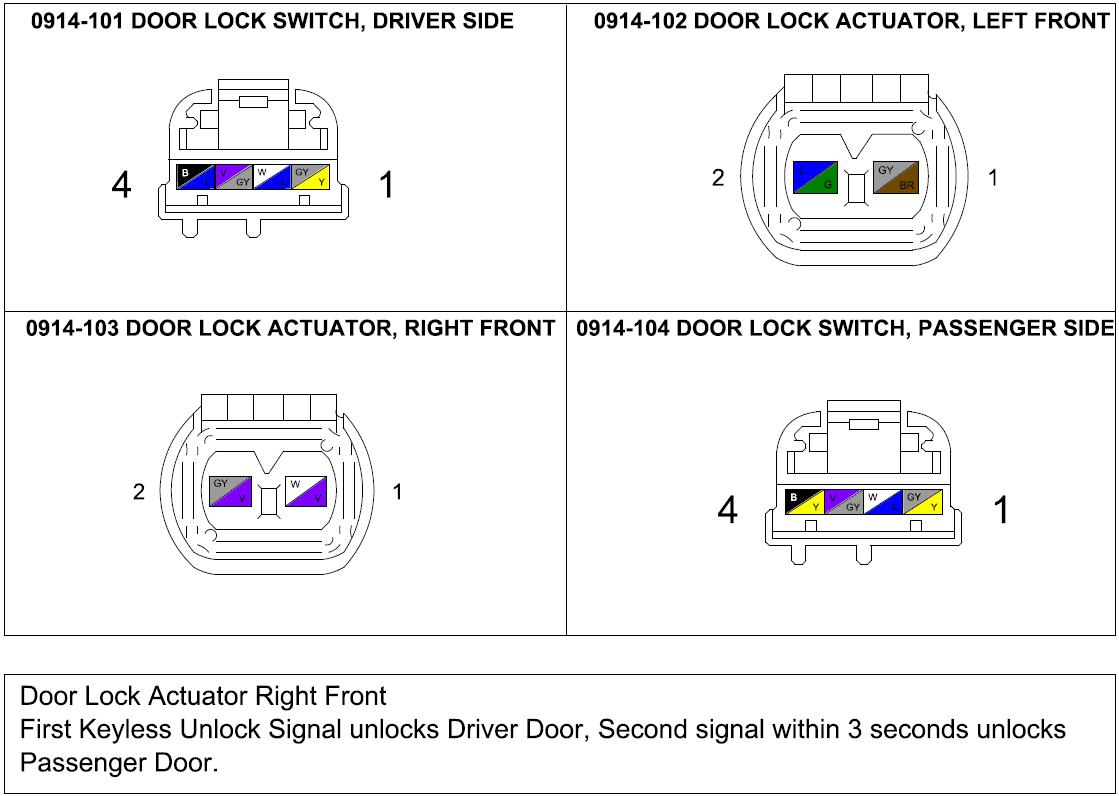

Connectors 0914-1:

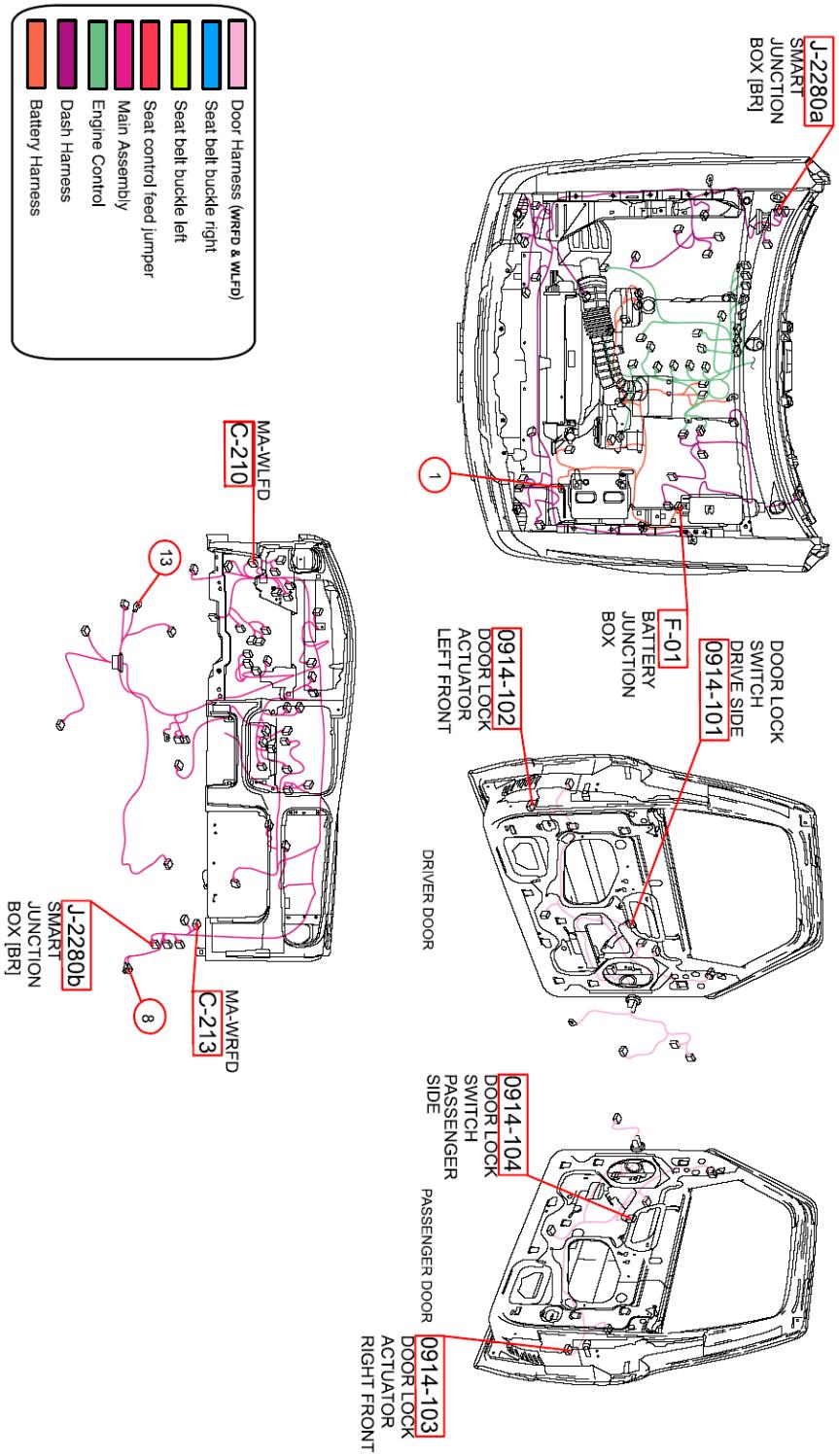

Routing View 0914-1:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
