Symptom Related Diagnostic Procedures

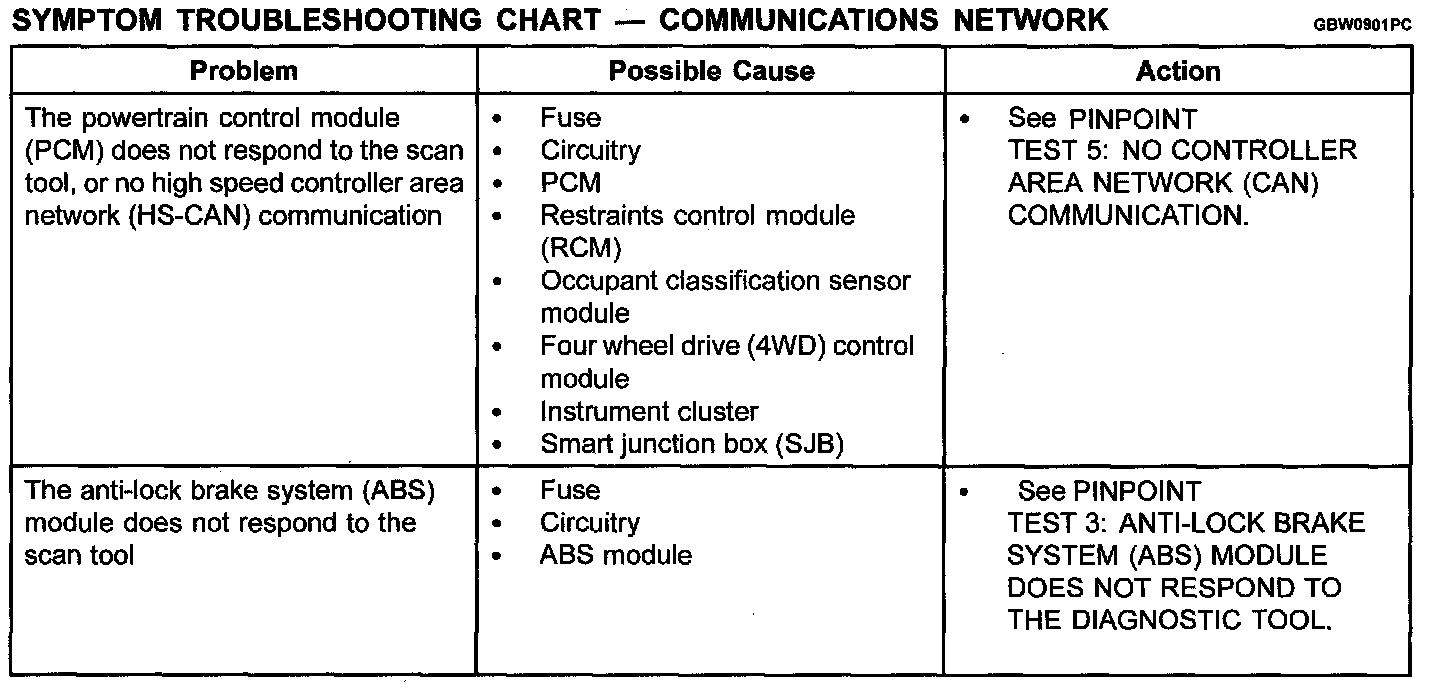

Symptom Troubleshooting Chart-Communication Network (Part 1):

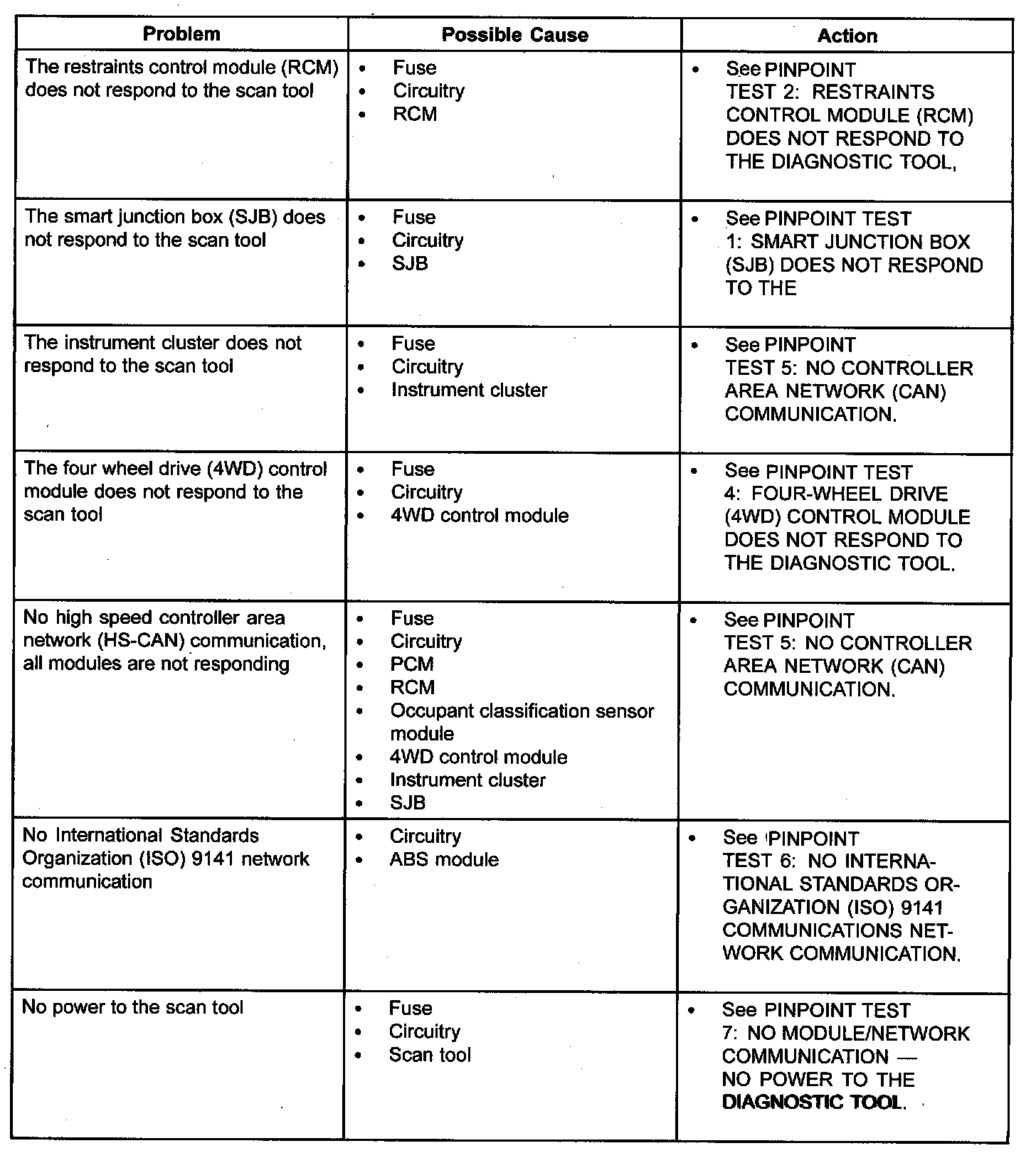

Symptom Troubleshooting Chart-Communication Network (Part 2):
