Symptom Troubleshooting [Engine Control System AJ)
>>
Control System Device And Control Relationship Chart [AJ]
Control System Device And Control Relationship Chart [AJ]

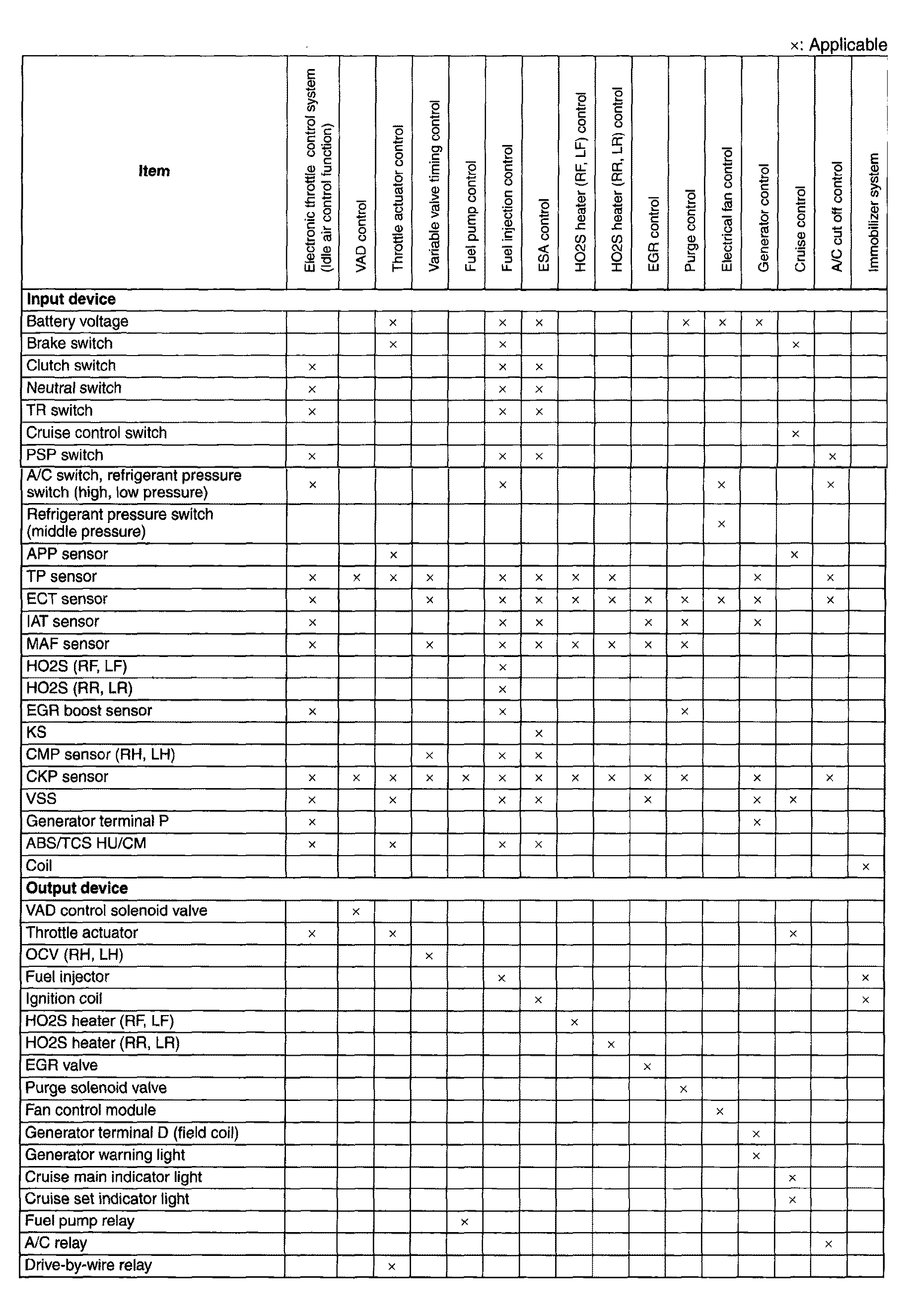

Fig 1: Control System Device And Control Relationship Chart [AJ]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
