Home >> Mazda >> 2008 >> 6 L4-2.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PID/Data Monitor Table

PID/Data Monitor Table

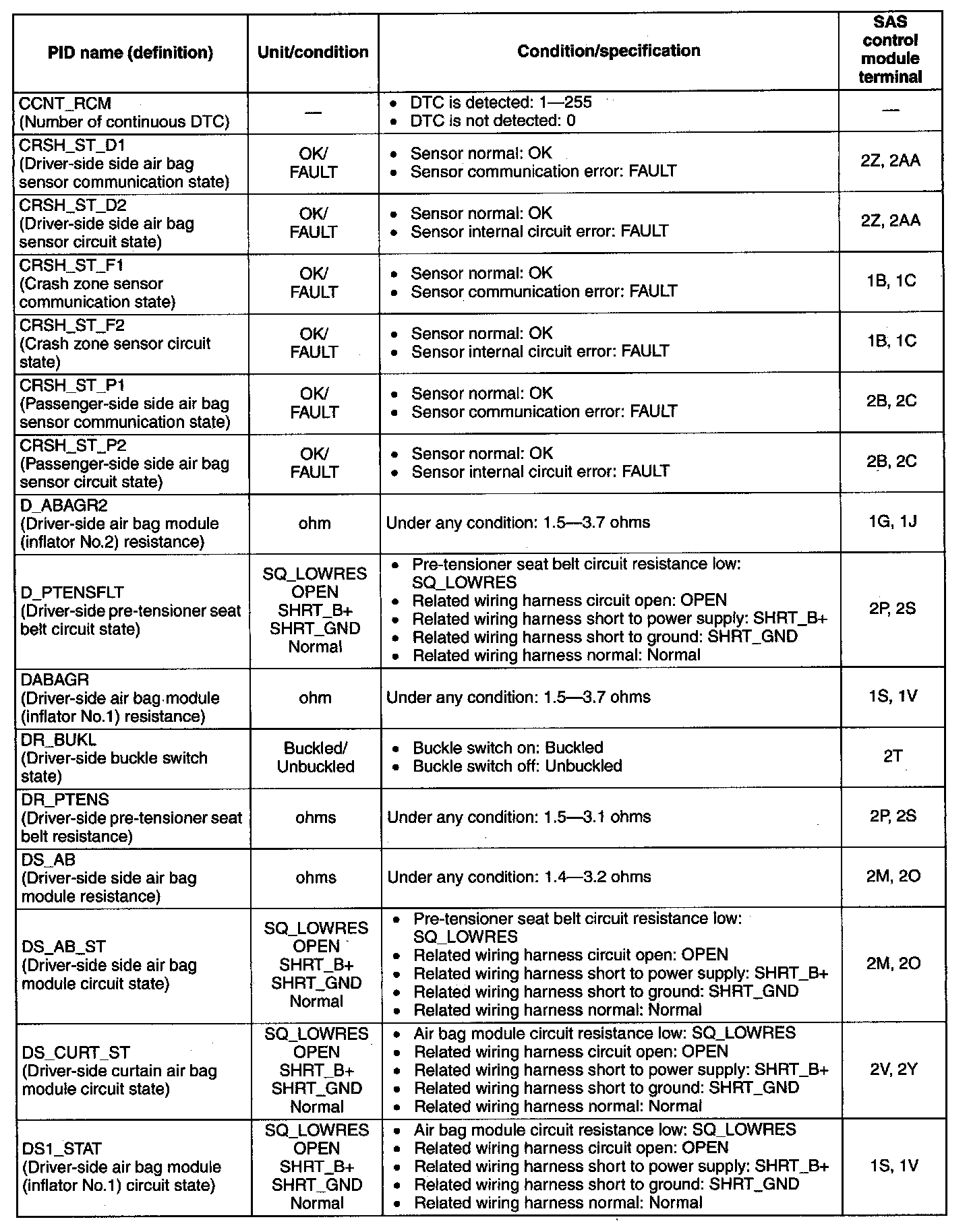

PID/DATA Monitor Table ( Part 1):

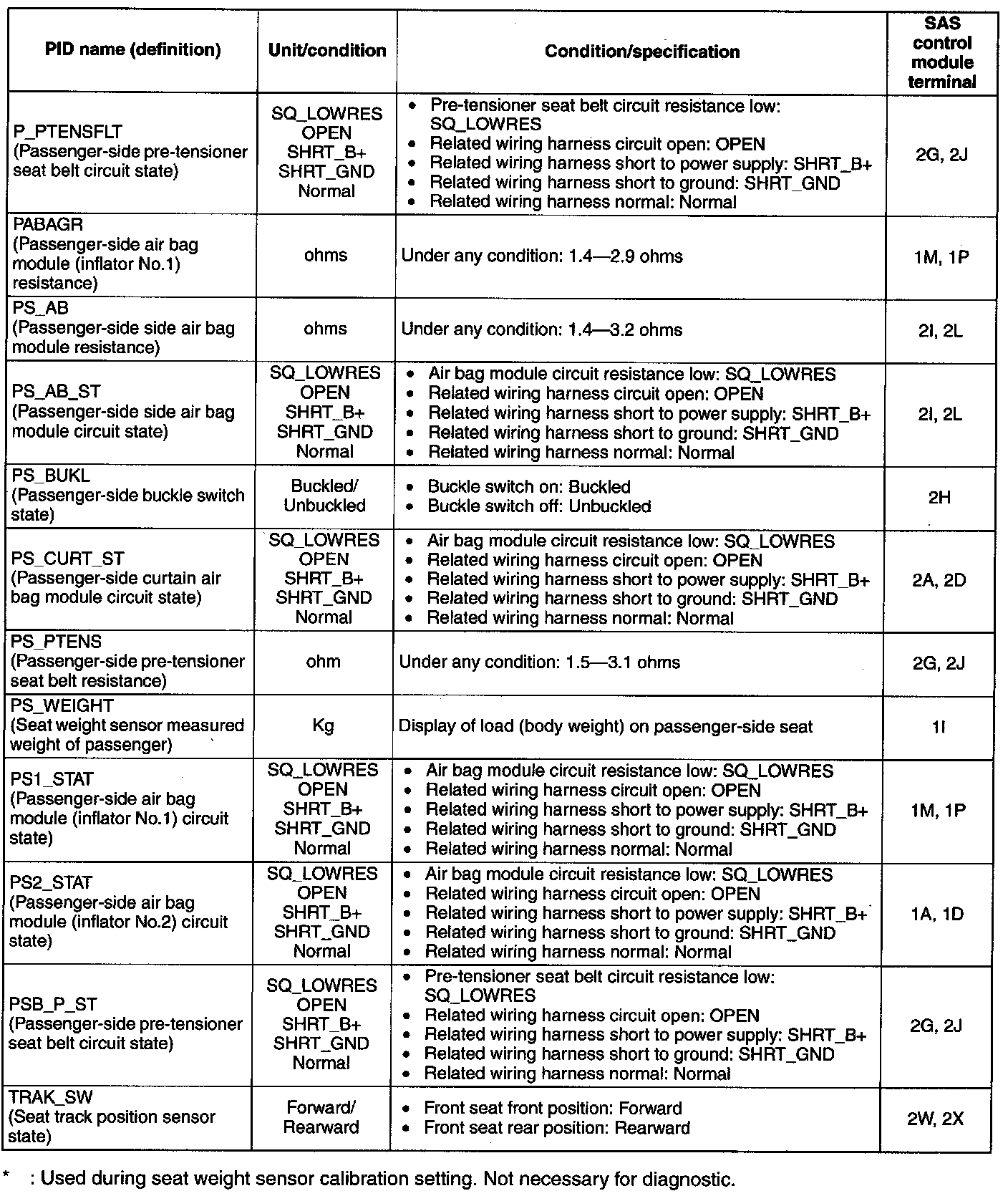

PID/DATA Monitor Table ( Part 2):

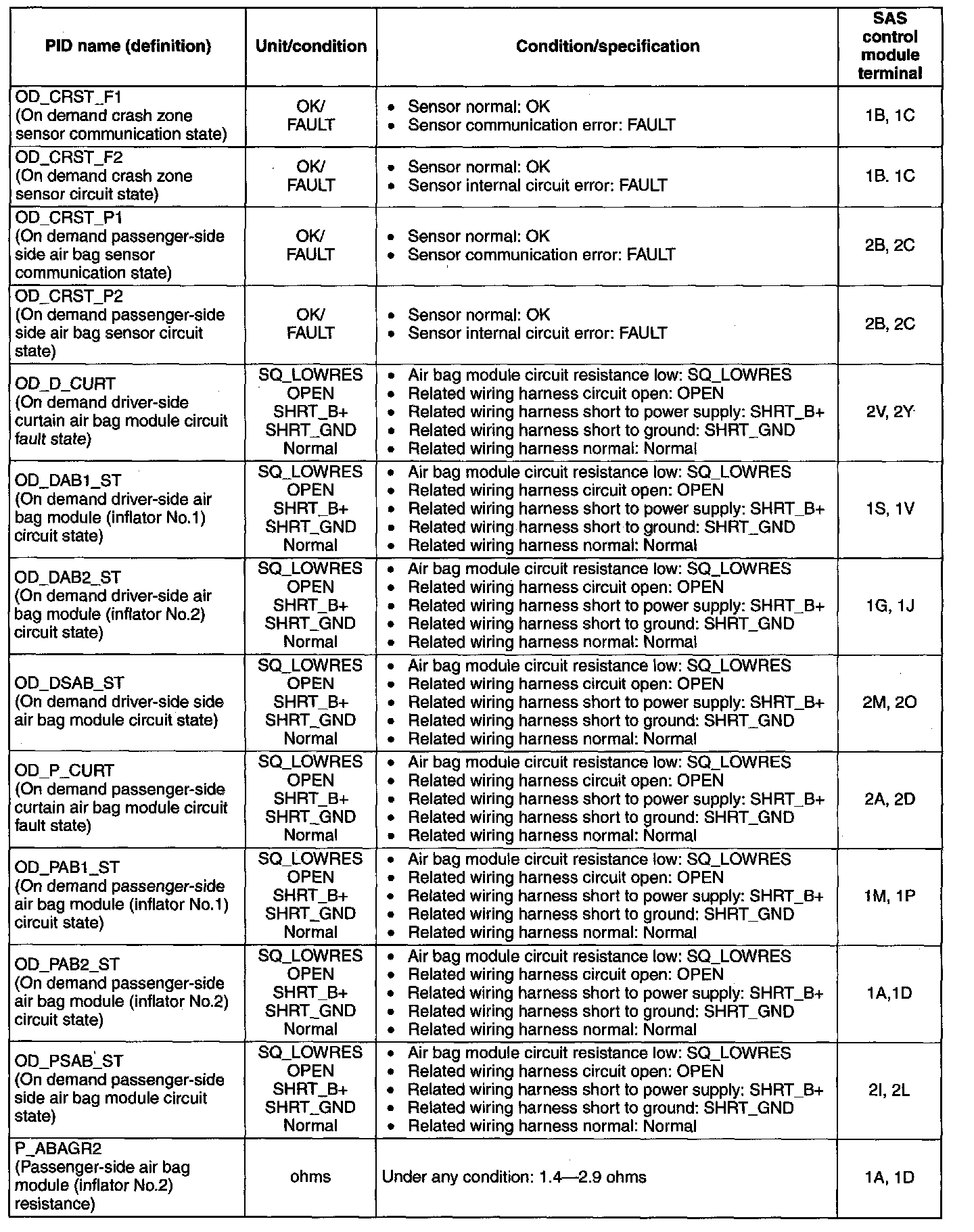

PID/DATA Monitor Table ( Part 3):

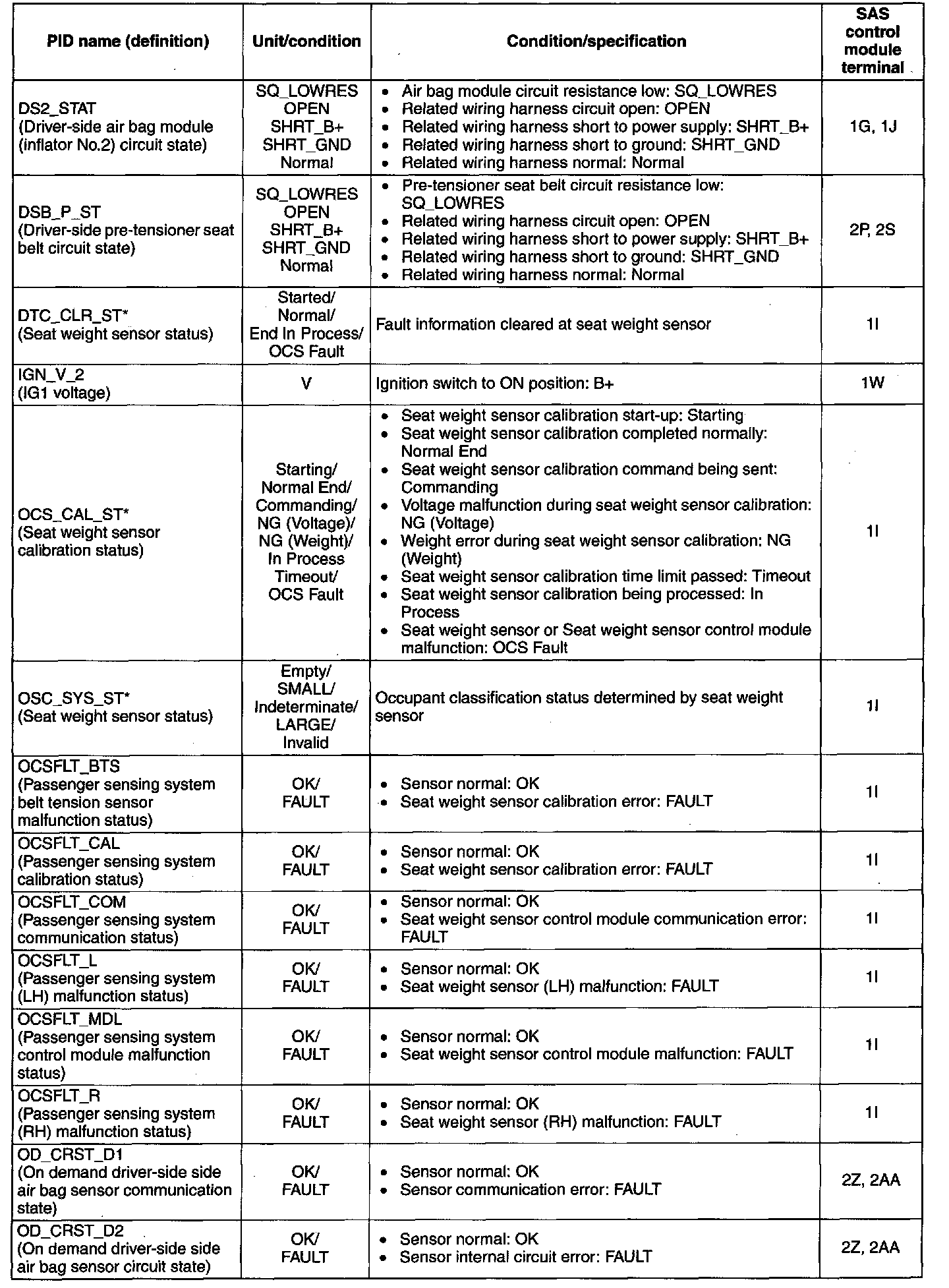

PID/DATA Monitor Table ( Part 4):
