Home >> Mazda >> 2008 >> 6 L4-2.3L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

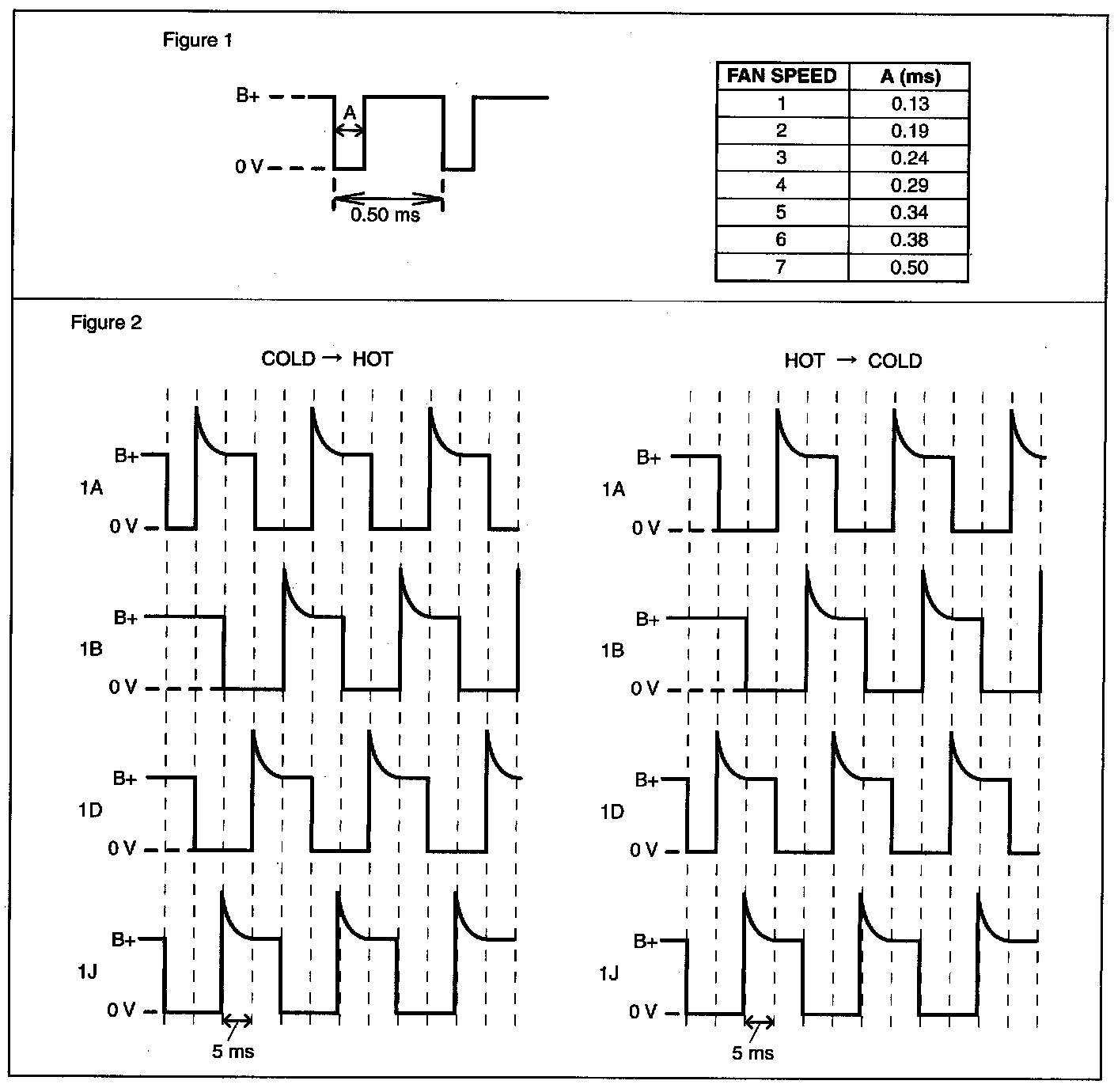

Terminal Voltage List (Reference) (Part 1):

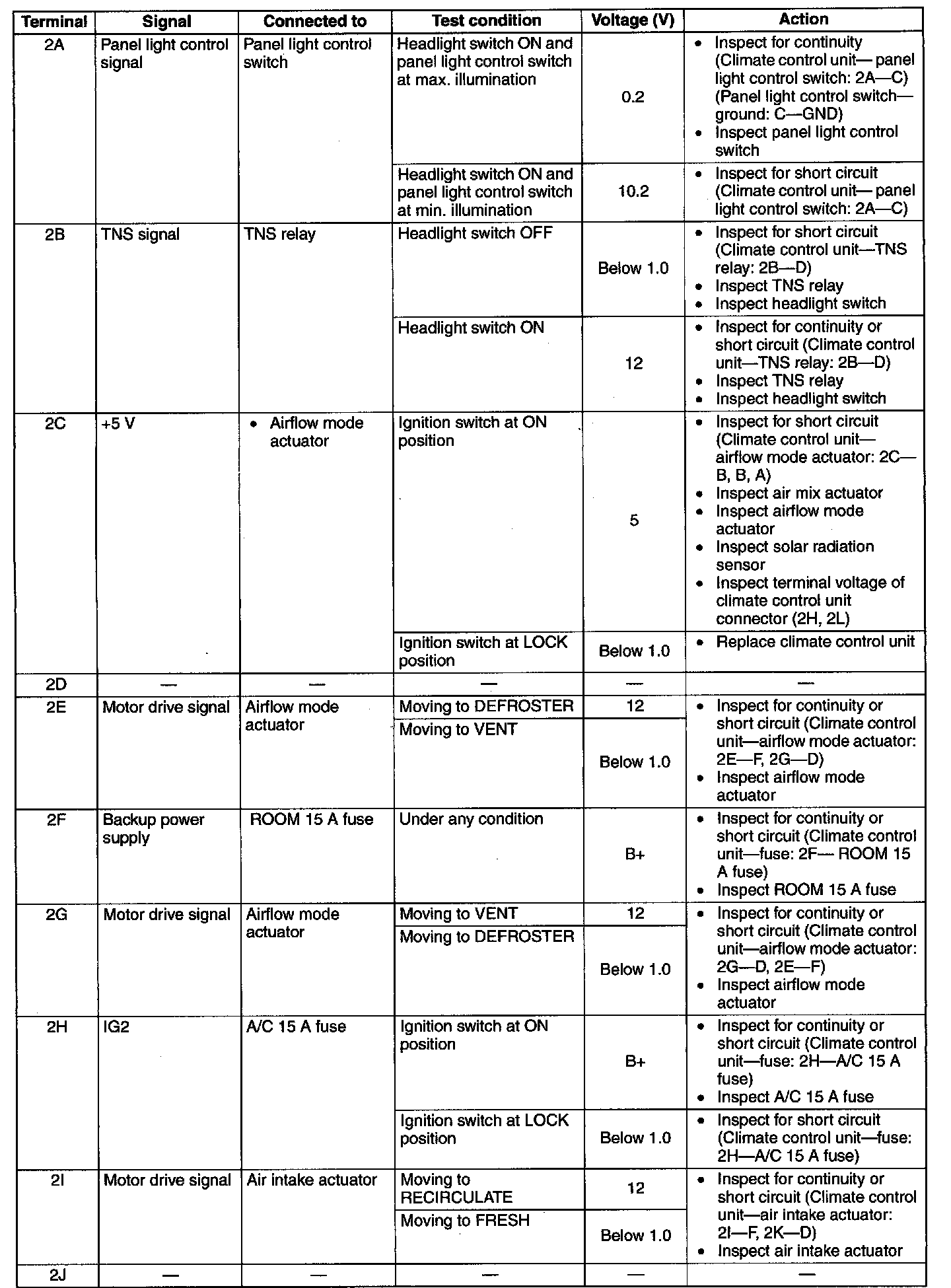

Terminal Voltage List (Reference) (Part 2):

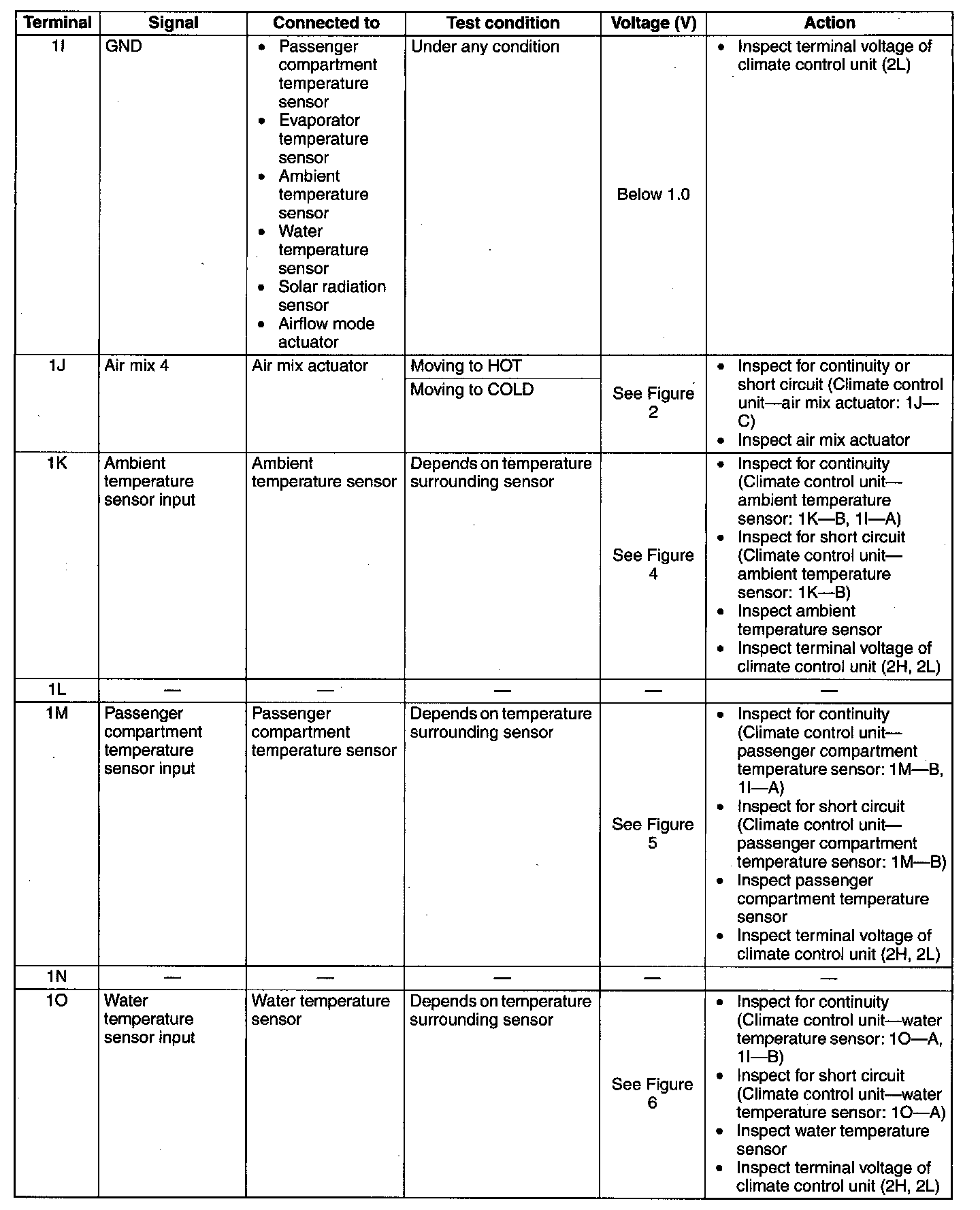

Terminal Voltage List (Reference) (Part 3):

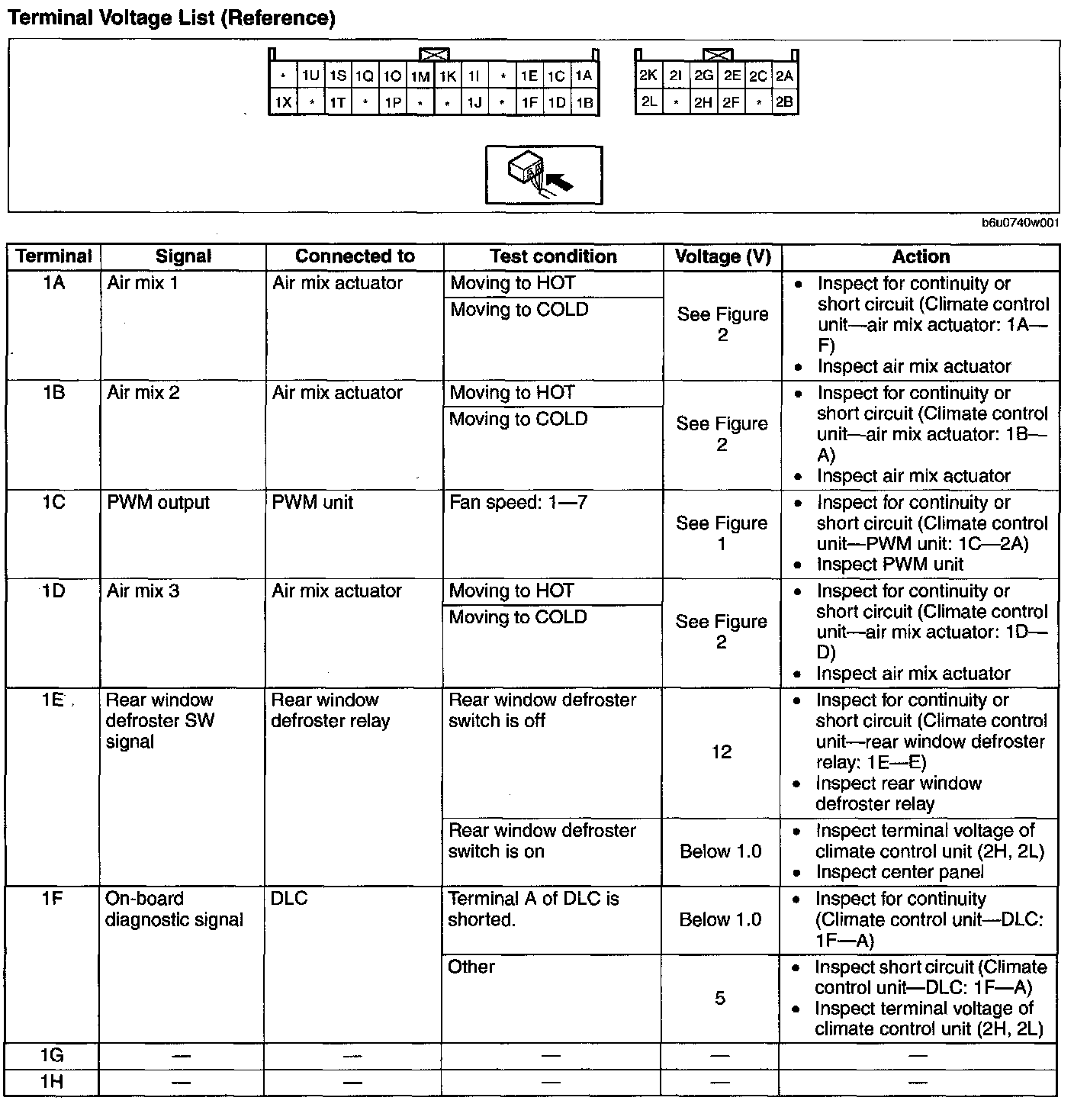

Terminal Voltage List (Reference) (Part 4):

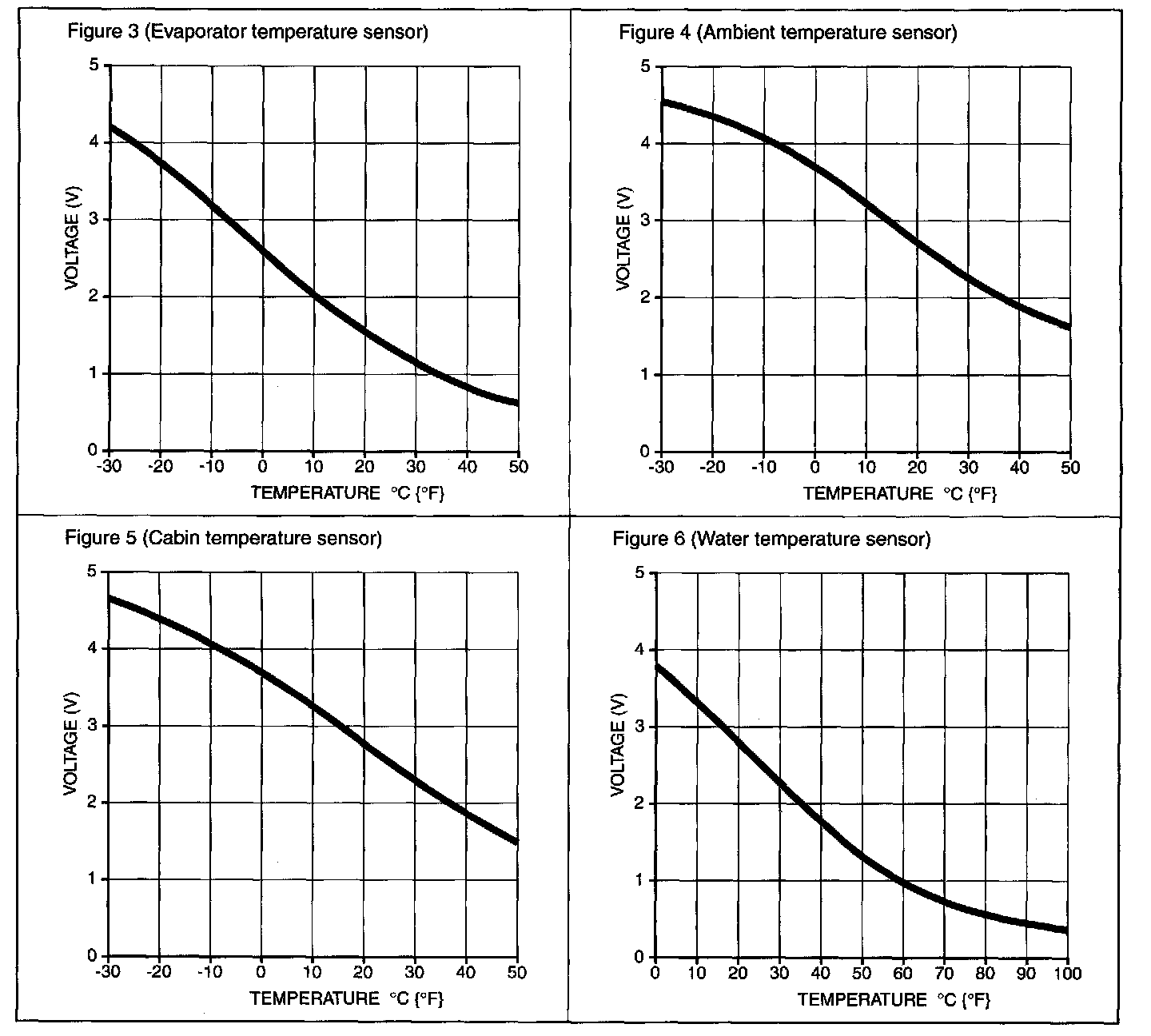

Terminal Voltage List (Reference) (Part 5):

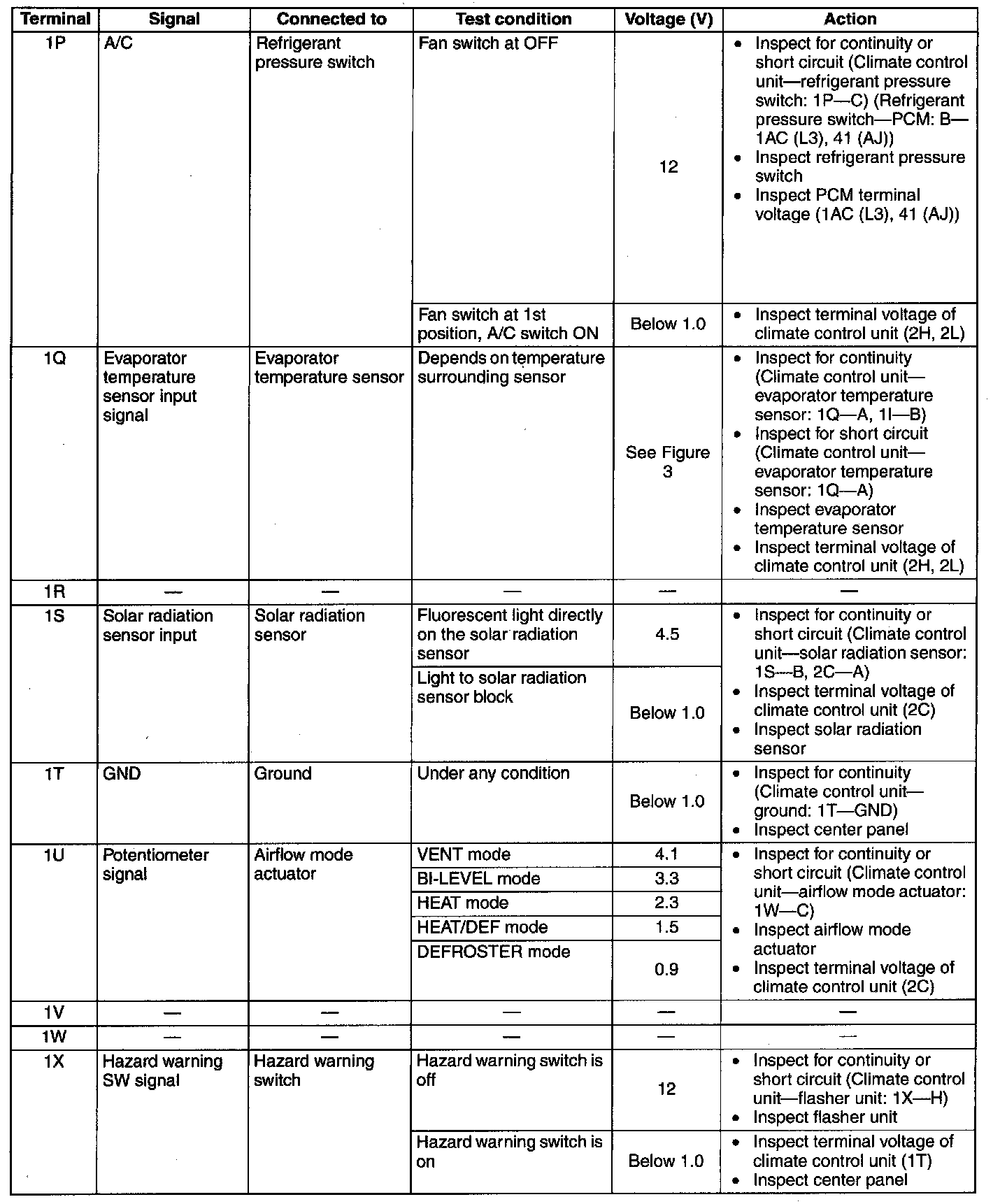

Terminal Voltage List (Reference) (Part 6):



Terminal Voltage List (Reference) (Part 7):
