PID/Data Monitor and Record Function Table

PID/DATA MONITOR AND RECORD function table

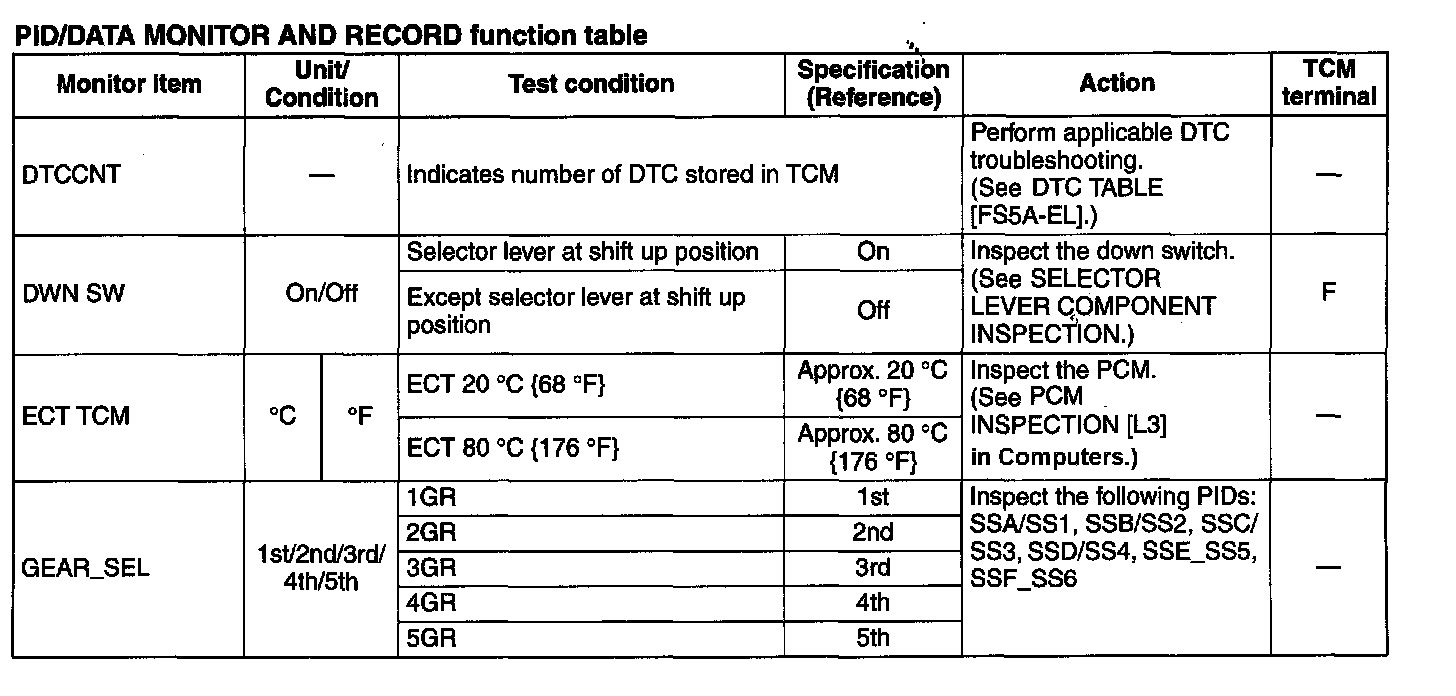

PID/Data Monitor And Record Funtion Table (Part 1):

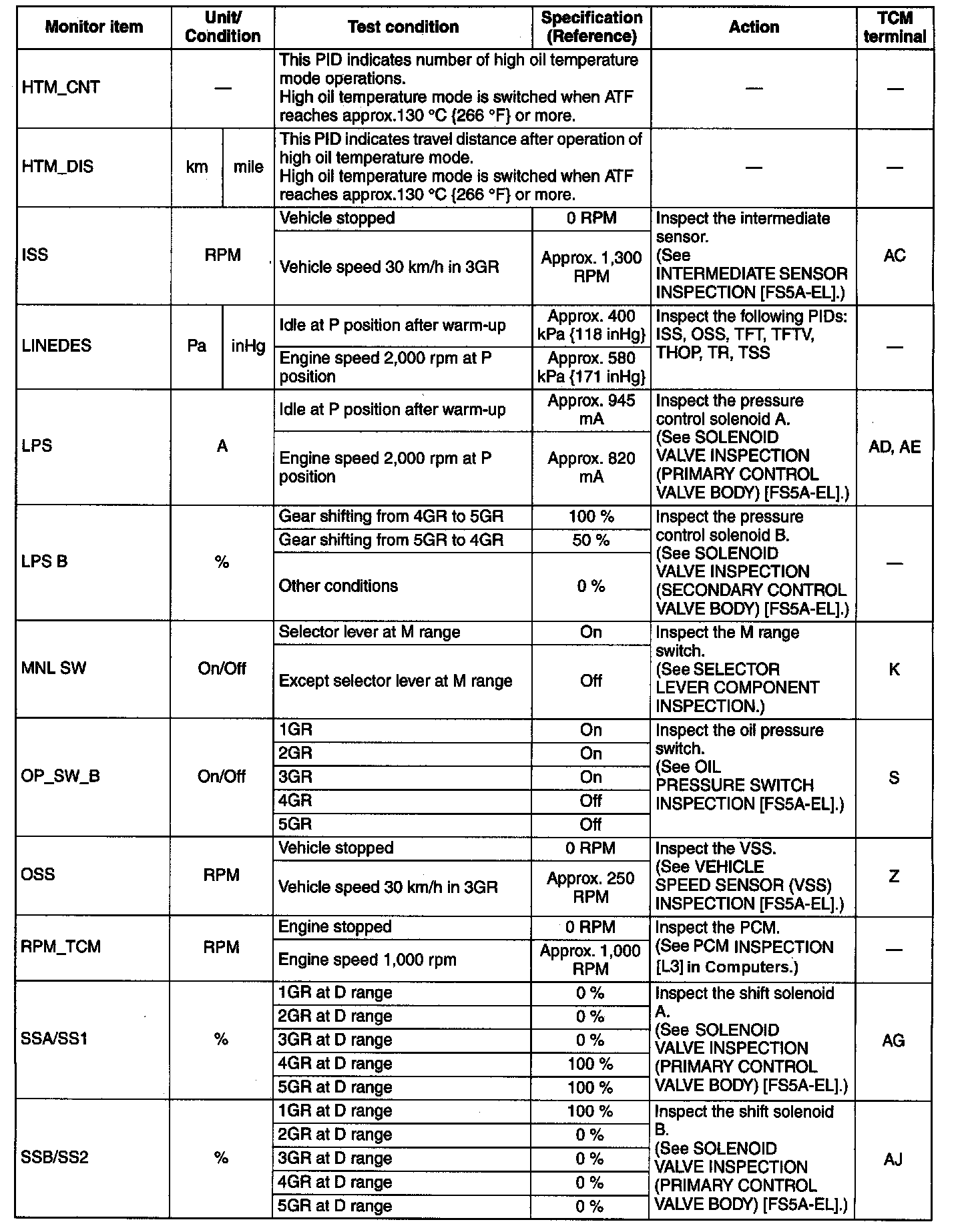

PID/Data Monitor And Record Funtion Table (Part 2):

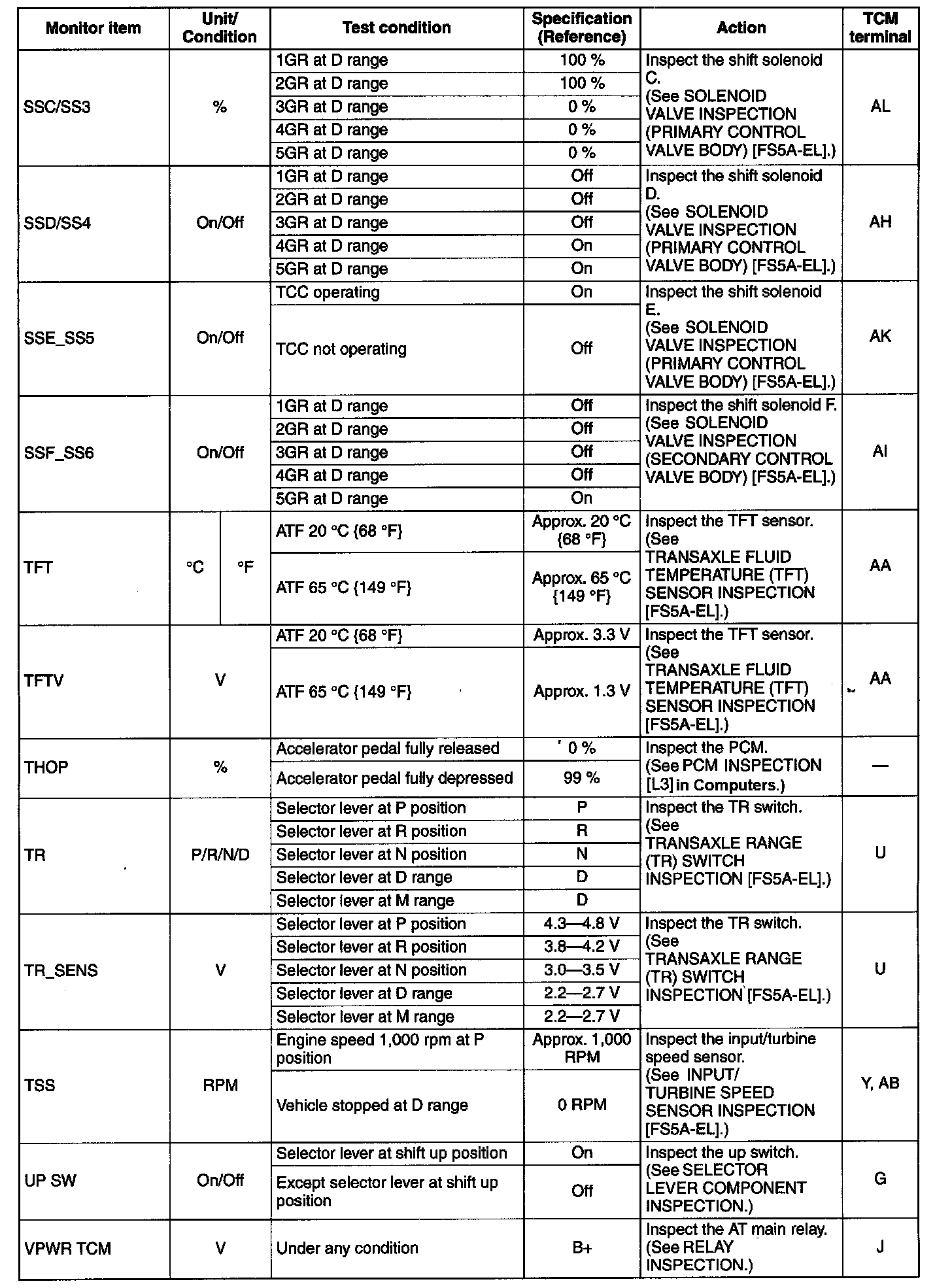

PID/Data Monitor And Record Funtion Table (Part 3):
